M5Stack UnitV2 USB Edition – Standalone Vision AI Module Without Integrated Camera

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

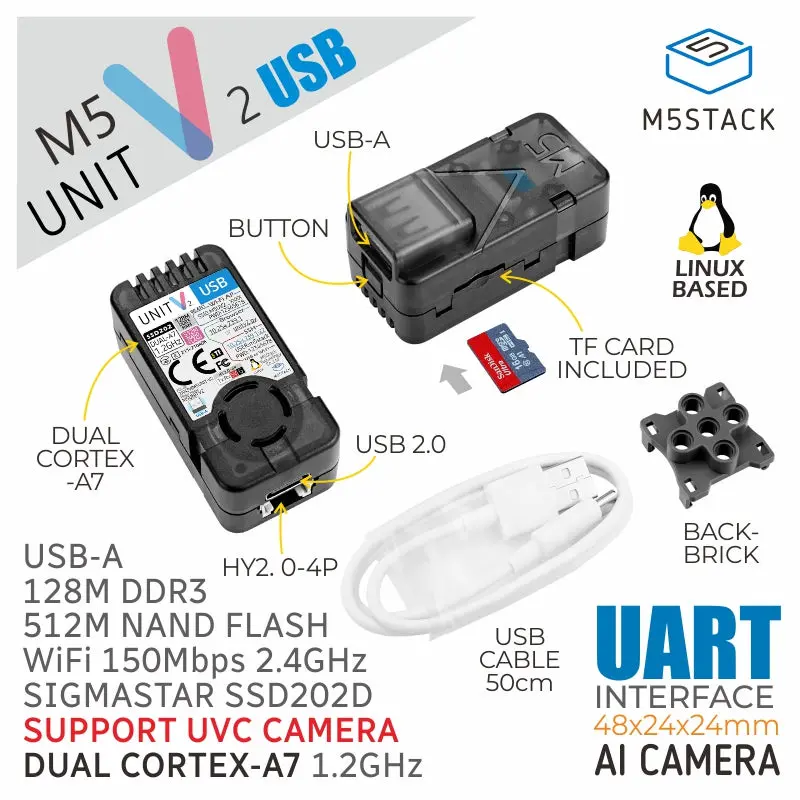

UnitV2-USB is a high-efficiency AI recognition module launched by M5Stack, powered by the Sigmstar SSD202D (integrated dual-core Cortex-A7 1.2GHz processor) as the control core, with 128MB DDR3 memory and 512MB NAND Flash. It provides a USB Type-A universal interface to connect a variety of UVC cameras, comes with a built-in Linux operating system, and integrates rich software and hardware resources as well as development tools. It is designed to offer users an out-of-the-box, simple, and efficient AI development experience.

Features

• Sigmstar SSD202D
• Dual-core Cortex-A7 1.2GHz processor
• 128MB DDR3
• 512MB NAND Flash
• USB-A universal interface, supports connection to various UVC cameras
• Wi-Fi 2.4GHz
• Development methods:
  • Comes with 12 commonly used AI image functions: QR code, face detection, line following, motion detection, template matching, image streaming, classification, color tracking, face recognition, object tracking, contour detection, custom object recognition
  • Supports web online preview, UiFlow (for serial port JSON format calls)
  • Linux environment (OpenCV, SSH, JupyterNotebook)

Includes

• 1 x UnitV2-USB
• 1 x 16GB microSD Card
• 1 x USB Type-C Cable (50cm)
• 1 x Stand
• 1 x Back Clip

Applications

• AI recognition function development
• Industrial vision classification
• Machine vision learning

Specifications

Specification	Parameter
Sigmstar SSD202D	Dual Cortex-A7 1.2GHz Processor
Flash	512MB NAND
RAM	128MB-DDR3
Camera	No lens, USB-A universal interface, supports connection to various UVC cameras
Input Voltage	5V @ 500mA
Hardware	Type-C x1, UART x1, TFCard x1, Button x1, Microphone x1, built-in active cooling fan x1
LED Indicator	Red, White
Wi-Fi	150Mbps 2.4GHz 802.11 b/g/n
Ethernet Card	SR9900
Product Size	48.0 x 24.0 x 24.2mm
Product Weight	20.0g
Package Size	146.0 x 44.0 x 37.0mm
Gross Weight	54.8g

Product Comparison

Specification	UnitV2	UnitV2-M12	UnitV2-USB
Lens Configuration	Standard focal length (FOV 68°)	Standard focal length (FOV 85°) + Wide-angle focal length (FOV 150°)	No lens, USB-A universal interface, supports connection to various UVC cameras
CMOS	GC2145	GC2053	/
