End-of-Life ESP32 Fisheye Camera Module Featuring PSRAM and OV2640 Image Sensor

Description

Product Status Notice This product is EOL (End of Life). /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

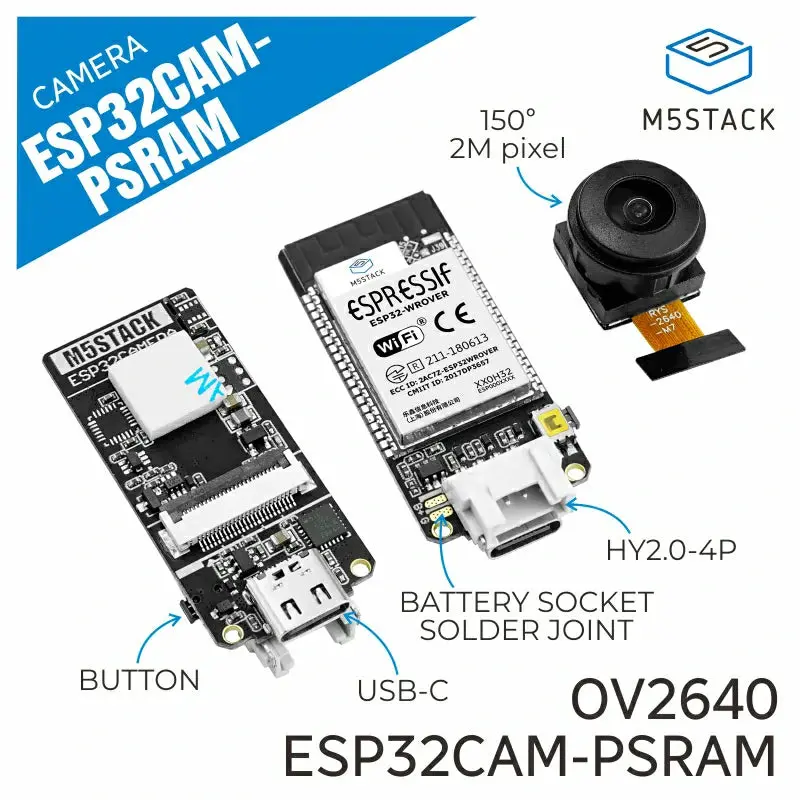

ESP32CAM-PSRAM is a fisheye wide-angle image recognition development board with a field of view of 150°, integrating an ESP32 (4MB Flash + 520KB RAM + 4MB PSRAM) chip and a 2MP camera (OV2640). It supports WiFi image transmission and USB port debugging.

The hardware comes pre-installed with firmware, and you can develop programs using ESP-IDF to run WiFi camera applications. The default program outputs an image size of 600 x 800, but you can optimize the program to output larger sizes.

Usage process:

• Turn on your phone’s Wi-Fi, scan and connect to the AP hotspot starting with “m5stack-“.
• Open the browser on your phone and visit 192.168.4.1 to enter the monitoring page and get real-time video.
• The video frame rate is approximately 5-6 frames per second.

Since the development board can generate a WIFI hotspot AP, you can use a phone, PC, or other devices to wirelessly obtain camera images via WIFI, or you can obtain camera images via the wired HY2.0-4P interface on the development board.

Features

• Designed based on ESP32
• WIFI image transmission
• CP2104 USB TTL
• 150° wide-angle lens
• OV2640 vision sensor

Includes

• 1 x ESP32-CAM PSRAM
• 1 x Camera (OV2640)

Applications

• DIY projects
• Time-lapse photography
• IoT monitoring

Specifications

Specification	Parameter
Flash/RAM	4MB/500KB
PSRAM	4MB PSRAM
Image Sensor	OV2640
Max Resolution	2MP
Output Format	YUV (422/420) /YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data
Field of View	150°
CCD Size	1/4 inch
Product Size	47 x 20 x 10mm
Package Size	136 x 92 x 13mm
Product Weight	9.4g
Gross Weight	11.8g
