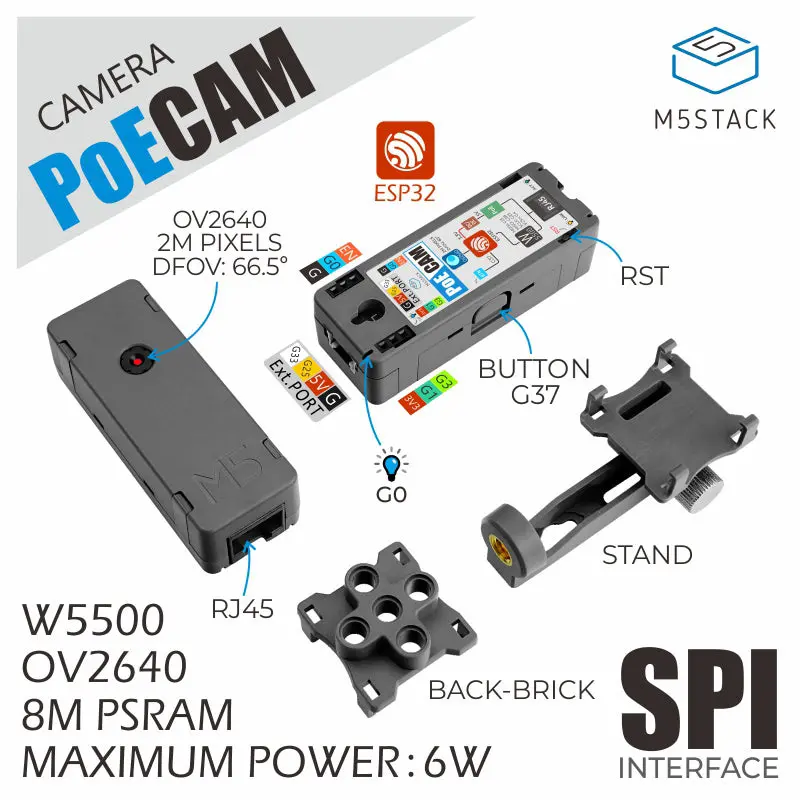

Unit PoE CAM is an open-source programmable network camera with integrated PoE (Power Over Ethernet) functionality. The hardware uses an ESP32 as the control core, combined with a W5500 embedded Ethernet controller and a 2MP image sensor OV2640, along with a high-capacity memory combination of 8MB PSRAM + 16MB Flash.

The camera is compact and supports flexible power options. Simply connecting an Ethernet cable enables stable image transmission, making it ideal for warehouse monitoring, scheduled image capture, and other application scenarios. Features include:

• Plug and Play:
  • Automatically obtains an IP address when the network cable is connected. Any device within the same local network can access the camera image.
  • The factory firmware integrates an image transmission module, which provides not only image data access but also API interfaces for adjusting image parameters (such as white balance, exposure, gain, and resolution).
  • Comes with a PC-side CameraTool that also supports UART image transmission.
• Feature-Rich:
  • Built-in ESP32 with a reserved programming interface, providing support for secondary development.
  • The W5500 embedded Ethernet controller supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols.
  • Supports multiple image output formats and allows image parameter adjustments.
• High Flexibility:
  • Supports PoE power supply, integrating power and network into one cable for simplified wiring; also supports 5V power supply.
  • Equipped with a GROVE expansion interface.
  • Comes with a fixed camera clip that supports both wall mounting and ceiling installation.

Features

• Rich image processing API interface
• PoE IEEE802.3 AF standard
• Ethernet network camera
• Built-in ESP32 MCU
• Development Platform:
  • UiFlow, Arduino, ESP-IDF
  • Software / Hardware open source

Includes

• 1 x Unit PoE CAM
• 1 x Fixed Camera Clip
• 1 x LEGO-Compatible Clip

Applications

• Warehouse Monitoring
• Scheduled Photography

Specifications

Specification	Parameter
SoC	ESP32-D0WDQ6-V3@Dual-core processor, main frequency 240MHz
DMIPS	600
SRAM	520KB
Flash	16MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
Image Sensor	OV2640
Max Resolution	2MegaPixel
OV2640 Max Image Transfer Rate	YUV (422/420) / YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data
DFOV	65°
PoE Standard	PoE IEEE802.3 AF / Max Power 6W / Power Supply Voltage DC 37-57V
Ethernet Controller	W5500, built-in 32Kbytes buffer, SPI interface
Supported Protocols	TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE
Ethernet Port Type	RJ45
Basic Peripherals	1x Programmable Button, 2x Status Indicators
Product Size	64.0 x 24.0 x 18.0mm
Product Weight	38.0g
Package Size	80.0 x 37.0 x 32.0mm
Gross Weight	45.0g
