M5Stack UnitV2 M12 Vision AI Camera Board

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

UnitV2-M12 is a high-efficiency AI recognition module launched by M5Stack, featuring the SigmaStar SSD202D (integrated dual-core Cortex-A7 1.2GHz processor) as the control core, integrated 128MB-DDR3 memory, 512MB NAND Flash, and a 1080P camera. It is equipped with 1x standard focal length (FOV:85°) + 1x wide-angle fisheye lens (FOV:150°) two M12 universal specification lenses, supporting manual focus. It comes with an embedded Linux operating system, integrated with rich software and hardware resources and development tools, aiming to provide users with an out-of-the-box, simple and efficient AI development experience.

Features

• SigmaStar SSD202D
• Dual-core Cortex-A7 1.2GHz processor
• 128MB DDR3
• 512MB NAND Flash
• GC2053 1080P Colored Sensor
• Equipped with dual lenses: standard focal length (FOV:85°) + wide-angle fisheye lens (FOV:150°)
• Built-in microphone
• Wi-Fi 2.4GHz
• Development methods:
  • Comes with 12 common AI image functions: QR code, face detection, line tracking, motion detection, shape matching, image streaming, classification, color tracking, face recognition, object tracking, shape detection, custom object recognition
  • Supports web online preview, UIFlow (used as serial port JSON format call)
  • Linux environment (OpenCV, SSH, JupyterNotebook)

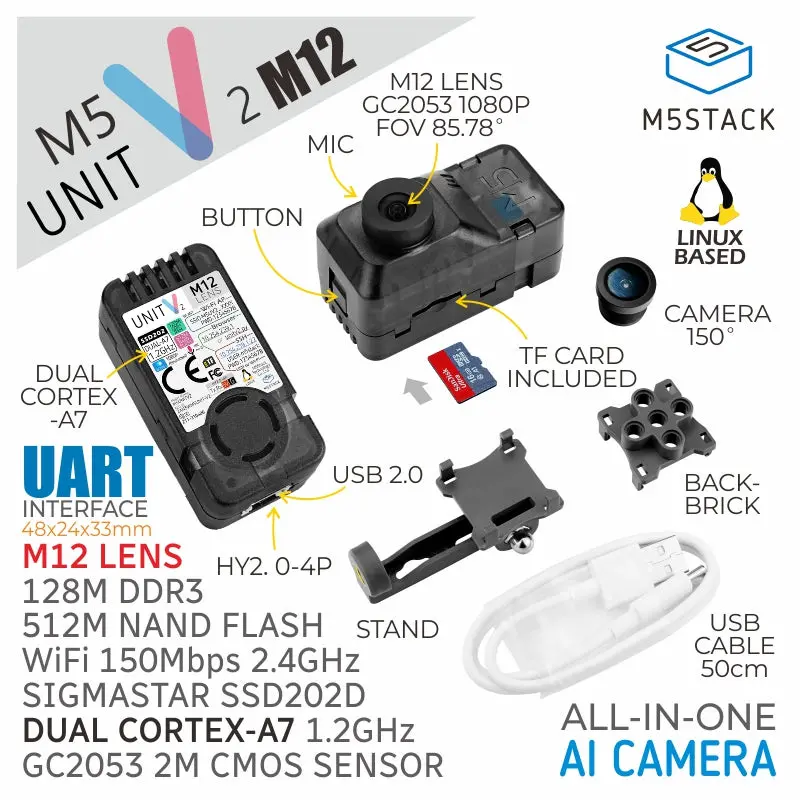

Includes

• 1 x UnitV2-M12
• 1 x 16GB microSD card
• 1 x USB Type-C cable (50cm)
• 1 x Stand
• 1 x Clip
• 1 x Standard focal length lens (FOV:85°)
• 1 x Wide-angle fisheye lens (FOV:150°)

Applications

• AI recognition function development
• Industrial visual recognition and classification
• Machine vision learning

Specifications

Specification	Parameter
SigmaStar SSD202D	Dual Cortex-A7 1.2GHz Processor
Flash	512MB NAND
RAM	128MB-DDR3
Camera	GC2053 1080P Colored Sensor
Lens	1x Standard Focal Length (FOV:85°) + 1x Wide-Angle Fisheye Lens (FOV:150°)
Input Voltage	5V@500mA
Hardware Peripherals	USB Type-C x1, UART x1, TFCard x1, Button x1, Microphone x1, Built-in Active Cooling Fan x1
Indicator Light	Red, White
Wi-Fi	150Mbps 2.4GHz 802.11 b/g/n
Ethernet Card	SR9900
Product Size (with Lens)	48.0 x 24.0 x 32.0mm
Product Weight	26.5g
Package Size	147.0 x 45.0 x 39.0mm
Gross Weight	77.9g

Product Comparison

Specification	UnitV2	UnitV2-M12	UnitV2-USB
Lens Configuration	Standard focal length (FOV 68°)	Standard focal length (FOV 85°) + Wide-angle focal length (FOV 150°)	No lens, USB-A universal interface, supports connection to various UVC cameras
CMOS	GC2145	GC2053	/
