Description

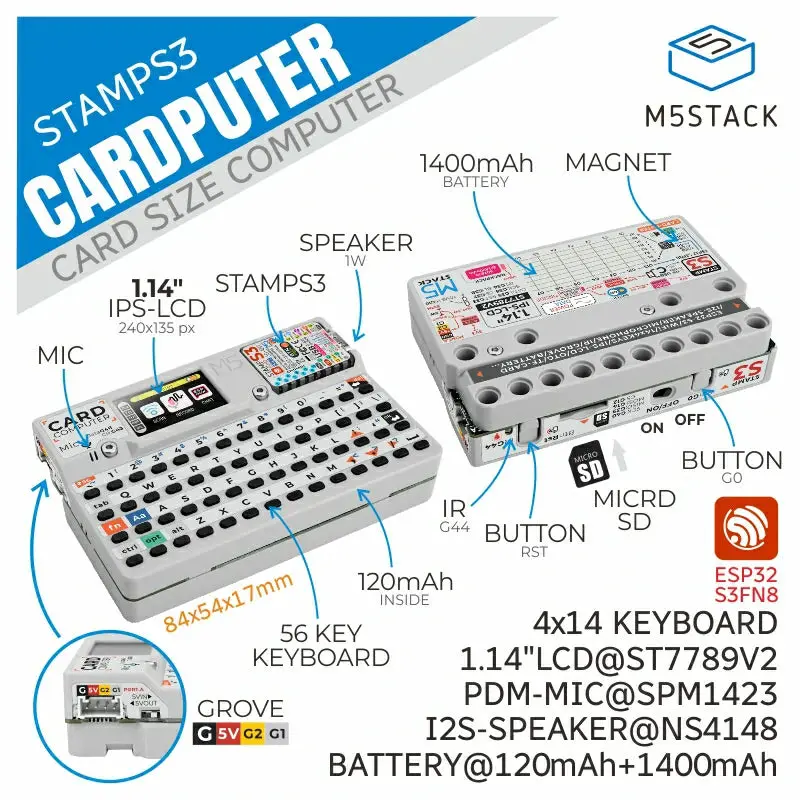

Cardputer is a card-sized computer designed for engineers, featuring an M5StampS3 as the main controller.
For human-machine interaction, it is equipped with a 56-key keyboard and a 1.14-inch TFT screen. The onboard SPM1423 digital MEMS microphone supports recording or wake-up functions, while the built-in cavity speaker enables audio playback. An infrared emitter provides IR control capability.
Expansion is provided via a Grove port for custom sensor connection, and a microSD card slot allows storage expansion.
Power is supplied by an internal 120 mAh battery plus a 1400 mAh battery in the base, greatly extending battery life. Integrated charge, boost and buck circuits are included.
The magnetic base can attach to metal surfaces and offers LEGO-compatible mounting holes.
Cardputer is ideal for rapid functional prototyping, industrial control, smart-home systems and more.

Disassembly Notice When removing the StampS3 module from the front panel, be very careful with the FPC cable and connector on the back. Gently pull it out to avoid damaging the screen connector. Refer to the operation video in the Cardputer Accessory Kit .

Features

• M5StampS3 microcontroller
• 56-key keyboard
• 1.14-inch TFT screen
• Cavity speaker and SPM1423 digital MEMS microphone
• Infrared emitter for IR control
• HY2.0-4P port for connecting and expanding I2C sensors
• microSD card slot for storage expansion
• Built-in 120 mAh battery plus 1400 mAh battery in the base for long battery life
• Magnetic base with LEGO-compatible mounting holes
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Cardputer
• 1 x Hex Key L-Shape 2.0mm (For M2 Screw)

Applications

• Rapid functional verification and prototyping
• Industrial control and automation
• Smart-home control systems
• Data acquisition and sensor monitoring
• Embedded system development and education
• Wireless communication and IoT projects

Specifications

Specification	Parameter
SoC	ESP32-S3FN8@Dual-core Xtensa LX7, 240MHz
USB	USB OTG, USB Serial/JTAG
Flash	8MB
Wi-Fi	2.4 GHz Wi-Fi
Storage	SD Card
Keyboard	56 keys (4 x 14)
Buttons	1 x Reset button + 1 x User button
Grove	1 x HY2.0-4P
Battery Capacity	120 mAh + 1400 mAh (in base)
Screen	ST7789V2 @ 1.14 inch, 240 x 135 px
Speaker	8 Ω @ 1 W I2S @ NS4168
Microphone	MEMS microphone @ SPM1423
IR Emitting Distance	410 cm at ∠0°, 170 cm at ∠45°, 66 cm at ∠90°
Sleep Current	DC 4.2 V @ 0.26 µA
Working Current	IR mode: DC 4.2 V @ 255.6 mA; Keyboard mode: DC 4.2 V @ 165.7 mA
Operating Temperature	0 ~ 40 °C
Product Size	84.0 x 54.0 x 19.7 mm
Product Weight	92.3 g
Package Size	145.7 x 95.0 x 20.7 mm
Gross Weight	109.9 g
