PLC Controller Based on M5Stamp S3 Microcontroller

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

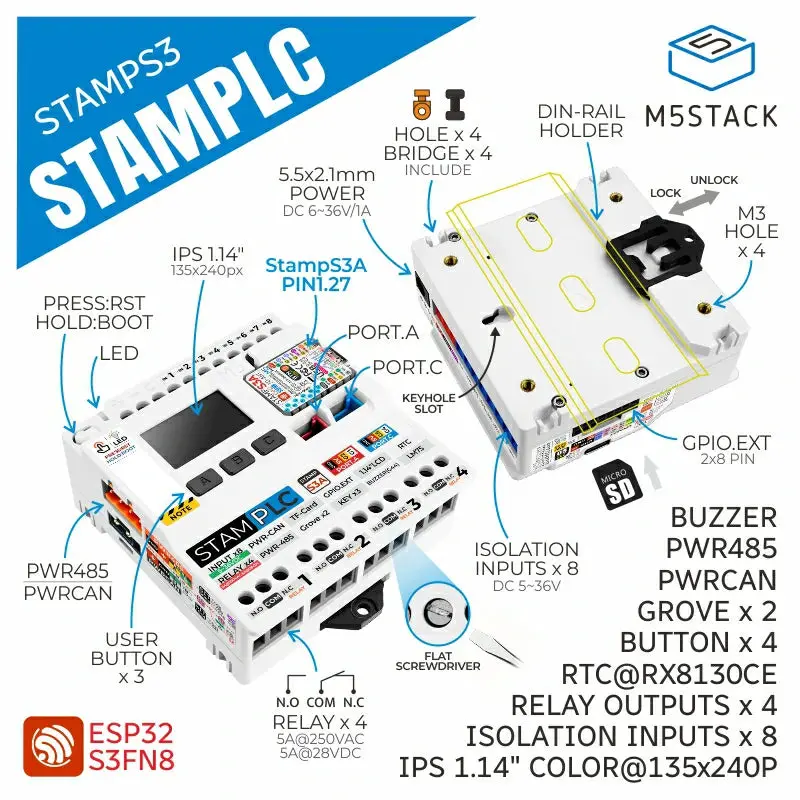

StamPLC is an IoT programmable logic controller designed for industrial automation and remote monitoring. The product is based on the StampS3A control module, which not only delivers powerful processing capabilities but also provides efficient wireless connectivity. In terms of control, StamPLC offers 8 opto-isolated digital inputs and 4 relay outputs (supporting both AC and DC loads), along with a GPIO.EXT port and 2 Grove interfaces, making the integration of various sensors and actuators both simple and reliable. Meanwhile, through the onboard PWR-CAN and PWR-485 interfaces, the device can be seamlessly integrated into industrial fieldbus networks, enabling remote data transmission and centralized control. For human-machine interaction, the product features a 1.14-inch color display, a RESET/BOOT button, 3 user buttons, and a buzzer, which facilitate real-time parameter configuration and status monitoring, and can alert users in the event of anomalies. To withstand harsh industrial environments, StamPLC supports a wide voltage input (DC 6–36V) and is designed for DIN rail mounting to ensure secure installation; the built-in Micro SD card slot further facilitates data storage and firmware updates. Additionally, its environmental monitoring system integrates an LM75 temperature sensor and an INA226 voltage/current sensor for real-time feedback on device operation, while the RTC (RX8130CE) module ensures accurate time synchronization and log recording. The factory firmware automatically uploads data to M5’s EZDATA cloud platform, generating monitoring pages and offering users convenient remote cloud access and control. This product is suitable for industrial automation, remote monitoring, smart manufacturing, and other applications.

Features

• StampS3A Control Module (ESP32-S3FN8)
• EZData Cloud Monitoring
• 8 Opto-isolated Digital Inputs
• 4 Relay Outputs (AC/DC)
• 1.14-inch Color Display (ST7789v2)
• PWR-CAN & PWR-485 Interfaces
• Wide Voltage Input (DC 6–36V)
• Voltage/Current Sensor
• Internal Temperature Sensor
• User Buttons
• Micro SD Card Slot
• DIN Rail Mounting
• Buzzer
• Grove Interface
• RTC Module
• Development Platform
  • UIFlow 2.0
  • Arduino IDE
  • ESP-IDF

Includes

• 1 x StamPLC
• 4 x Mounting Accessories
• 4 x Screw Clip Fasteners

Applications

Specifications

Specification	Parameter
Control Module	StampS3A Control Module, based on ESP32-S3FN8, with 8MB Flash, 2.4GHz Wi-Fi
FLASH	8MB
Digital Inputs	8 opto-isolated digital inputs, Input voltage range: DC 5~36V
Digital Outputs	4 relay outputs
Relays	AC – 5A @ 250V DC – 5A @ 28V
DC Power Supply	Supports wide voltage input of DC 6–36V @ 1A DC Power Connector: DC5521 (female, 5.5 x 2.1mm, center positive, outer negative)
Expansion Interfaces	GPIO.EXT interface, 2 Grove interfaces
Communication Interfaces	Onboard PWR-CAN and PWR-485 interfaces
PWR-CAN Interface	XT30(2+2)PW-M
PWR-485 Interface	HT3.96-4P
Display	1.14-inch color display (135×240 resolution), driven by ST7789v2 chip
Interactive Controls	1 RESET/BOOT button, 3 user buttons, buzzer
Data Storage	Built-in Micro SD card slot
Sensors	LM75 temperature sensor, INA226 voltage/current sensor, RTC (RX8130CE)
IO Port Load Capacity	2×8 connector maximum load: DC-4.76V @ 700mA Grove port load test: DC-4.81V @ 700mA
Power Consumption	Standby current: (5V supply) DC-5V @ 21.60mA, (12V supply) DC-12V @ 15.22mA Operating current: (5V supply) DC-5V @ 93.89mA, (12V supply) DC-12V @ 47.84mA
Installation Method	DIN rail mounting
Operating Temperature	0–40°C
Product Size	72.0 × 80.0 × 33.4mm
Product Weight	139.4g
Packaging Size	102.0 x 94.0 x 37.0mm
Gross Weight	163.7g
