M5Stack Station ESP32 IoT Development Kit – Battery-Powered Edition

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

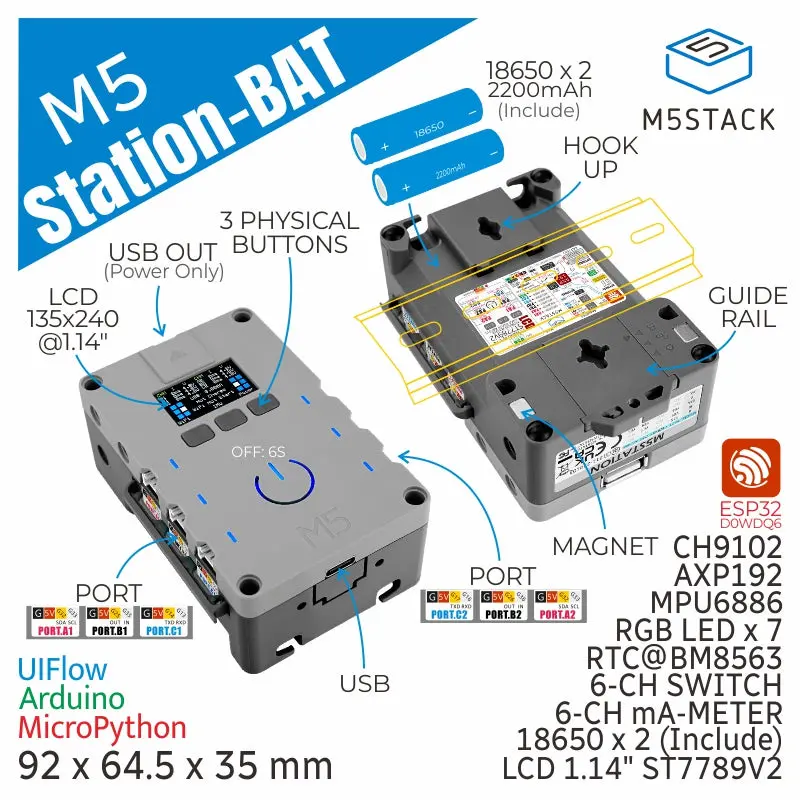

Station-Bat is a versatile industrial-grade programmable embedded controller. It uses the Espressif ESP32 as the main control chip, integrates a Wi-Fi solution, and is equipped with a dual-core low-power Xtensa® 32-bit LX6 microprocessor with a main frequency of up to 240MHz. It comes with 16MB Flash, a 1.14-inch full-color HD IPS display panel with a resolution of 240×135, a physical button panel, rich peripherals, two sets of six expansion interfaces, and features low-power sleep/timed wake-up functionality. It also integrates the IMU MPU6886.

It supports both USB Type-C and internal rechargeable 18650 battery power supply methods. The onboard high-power-density fully integrated boost DC/DC converter SCT12A0DHKR ensures the stability of electrical equipment operation in complex application scenarios.

This controller can be used in industrial field control, smart buildings, multi-channel data acquisition nodes, and developer prototype design, among other application scenarios.

Features

• Interactive Design:
  • 1.14-inch IPS display panel
  • 6-axis gyroscope MPU6886
  • 3 programmable physical buttons
  • 1 power button
  • 7 programmable RGB LEDs

• Power Design:
  • Input:
    • AXP192 power management chip
  • Output:
    • Each interface (5 Grove, 1 USB-A) uses an electronic switch SGM2553D for independent on/off control
    • 6 Grove interfaces use INA3221 for voltage/current monitoring, and USB-A uses INA199 for current monitoring
    • Integrated high-power-density fully integrated boost DC/DC converter SCT12A0DHKR
  • Low Power:
    • Integrated RTC BM8563 for low-power sleep/timed wake-up
• Port Design:
  • 6 Grove expansion interfaces
    • Port A1/A2 share power and signal pins
    • Port B1/B2/C1/C2 have independent power and signal pins
  • USB Type-A is for power output only, with no signal pins
• Structural Design:
  • DIN rail
  • Magnetic
  • Wall-mounted
  • Screws
  • Cable ties

• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Station-Bat
• 1 x USB Type-C cable (50cm)
• 1 x Hex key

Applications

Specifications

Specification	Parameter
SoC	ESP32-D0WDQ6-V3@dual-core processor, main frequency 240MHz
DMIPS	600
SRAM	520KB
Flash	16MB
Wi-Fi	2.4 GHz Wi-Fi
USB Power	5V@1A
Battery Specification	18650 x 2 (parallel)
Host Ports	USB Type-C x 1, HY2.0-4P (I2C+I/O+UART) x 6, Full-Size USB Type-A (OUTPUT)
LED	SK6812 x 7
Buttons	Power button, physical buttons x 3
IPS LCD Screen	1.14″@240 x 135 ST7789V2
IMU	MPU6686
RTC	BM8563
PMU	AXP192
Voltage / Current Sensor	INA3221 + INA199
USB Chip	CH9102F
DC/DC Boost	SCT12A0DHKR
Power Distribution Switch	SGM2553D
Antenna	2.4G 3D antenna
Operating Current	146.3mA
Sleep Current	31.6uA
Operating Temperature	0 ~ 60°C
Base Screw Specification	Hex Cup Head M2 x 8 Screw
Case Material	ABS+PC
Product Size	88.0 x 65.0 x 35.0mm
Product Weight	170.0g
Package Size	104.0 x 73.0 x 54.5mm
Gross Weight	209.4g

Product Comparison

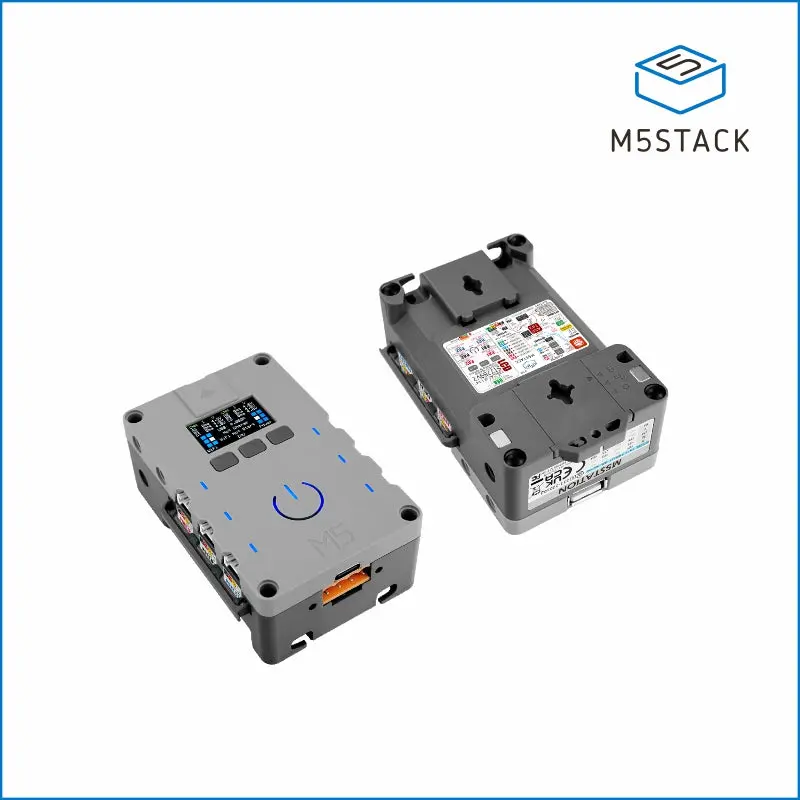

Station-485	Station-Bat
Equipped with PWR485 (RS485 + power input)	Onboard MPU6886, supports two 18650 batteries (parallel)
