Description

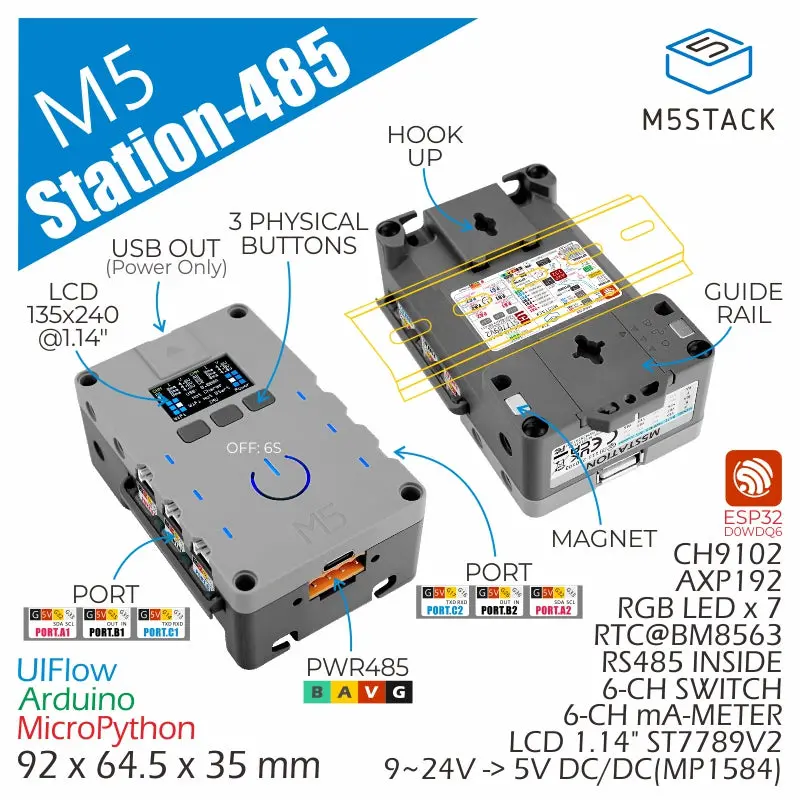

Station-485 is a versatile industrial-grade programmable embedded controller. It uses the Espressif ESP32 as the main control chip, integrates a Wi-Fi solution, and is equipped with a dual-core low-power Xtensa® 32-bit LX6 microprocessor with a clock speed of up to 240MHz. It comes with 16MB Flash and integrates a 240 x 135 1.14-inch full-color HD IPS display panel, physical button panel, rich peripherals, and two sets of six expansion interfaces. It also features low-power sleep/timed wake-up functionality.

It supports multiple power supply methods, including USB Type-C, PWR485, and an internal rechargeable battery (battery socket reserved on the board). The board integrates a high-power-density fully integrated boost DC/DC converter SCT12A0DHKR, ensuring stability in complex application scenarios.

This controller is suitable for various application scenarios such as industrial field control, smart buildings, multi-channel data acquisition nodes, and developer prototyping.

Features

• Interactive Design:
  • 1.14-inch IPS display panel
  • 3 programmable physical buttons
  • 1 power button
  • 7 programmable RGB LEDs
• Power Design:
  • Input:
    • Integrated 9~24V to 5V DC/DC SY8303 step-down circuit
    • AXP192 power management chip
  • Output:
    • Each interface (5 Grove, 1 USB-A) uses an electronic switch SGM2553D for independent on/off control
    • 6 Grove interfaces use INA3221 for voltage/current monitoring, and USB-A uses INA199 for current monitoring
    • Integrated high-power-density fully integrated boost DC/DC converter SCT12A0DHKR
  • Low Power Consumption:
    • Integrated RTC BM8563 for low-power sleep/timed wake-up
• Port Design:
  • 6 Grove expansion interfaces
    • Port A1/A2 share power and signal pins
    • Port B1/B2/C1/C2 have independent power and signal pins
  • PWR485 interface (4-wire VH3.96)
    • RS485
    • 9~24V power input
  • USB Type-A is for power output only, with no signal pins
• Structural Design:
  • DIN rail
  • Magnetic
  • Wall-mounted
  • Screws
  • Cable ties
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Station-485
• 1 x USB Type-C cable (100cm)
• 1 x Hex key
• 1 x I/O Sticker

Applications

• IoT controller
• Multi-channel data acquisition
• IoT product prototyping
• DIY projects

Specifications

Specification	Parameters
SoC	ESP32-D0WDQ6-V3@dual-core processor, main frequency 240MHz
DMIPS	600
SRAM	520KB
Flash	16MB
Wi-Fi	2.4 GHz Wi-Fi
USB Power	5V@1A
RS485 Power	9 ~ 24V@1A
Host Ports	USB Type-C x 1, HY2.0-4P (I2C+I/O+UART) x 6, Full-Size USB Type-A (OUTPUT), PWR485
LED	SK6812 x 7
Buttons	Power button, physical buttons x 3
IPS LCD Screen	1.14″@240 x 135 ST7789V2
RTC	BM8563
PMU	AXP192
Voltage/Current Monitor	INA3221 + INA199
USB Chip	CH9102F
TTL-RS485	SP3485
Step-Down Chip	SY8303
DC/DC Boost	SCT12A0DHKR
Power Distribution Switch	SGM2553D
Antenna	2.4G 3D antenna
Operating Temperature	0 ~ 60°C
Base Screw Specification	M2 x 8 hex socket screws
Internal PCB Reserved Interfaces	Battery interface (1.25mm-4P), USB line interface (1.25mm-4P)
Housing Material	ABS+PC
Product Size	88.0 x 65.0 x 35.0mm
Product Weight	63.6g
Package Size	104.0 x 73.0 x 54.5mm
Gross Weight	105.3g

Product Comparison

Station-485	Station-BAT
Equipped with PWR485 (RS485 + Power Input)	Onboard MPU6886, can be equipped with two 18650 batteries (parallel)
