M5Stack Core2 ESP32 Smart IoT Development Kit – Version 1.1

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

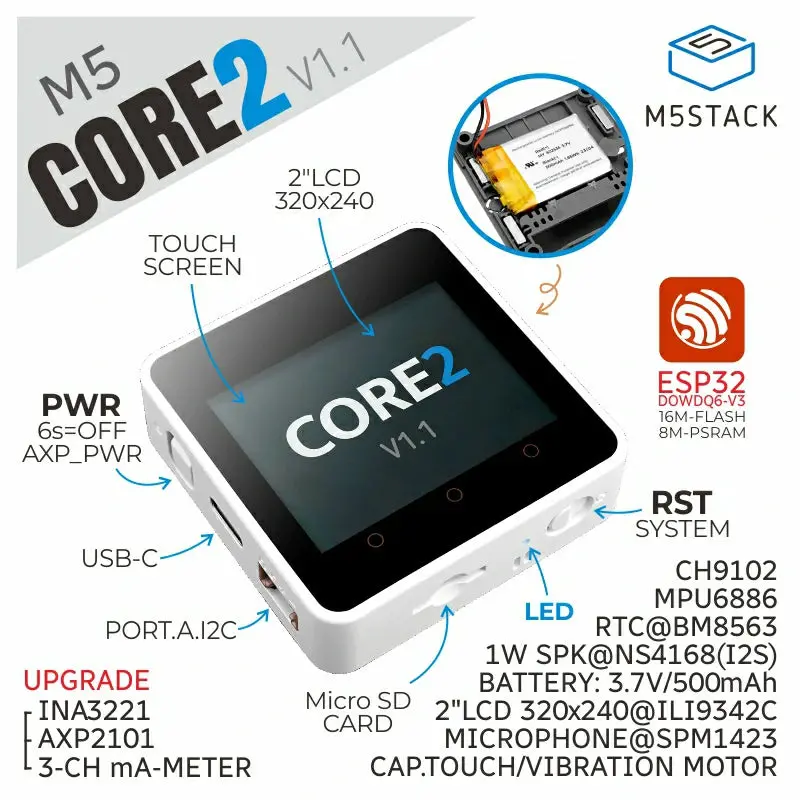

Core2 v1.1 is the iterative version of the second-generation host in the M5Stack development kit series, further enhancing the functionality based on the original generation host. It features a power management chip solution of AXP2101+INA3221, offering more comprehensive hardware functions, adding an RTC battery to meet the needs of low-power applications and precise timing functions. Its core controller is equipped with an ESP32-D0WDQ6-V3, featuring two independently controllable Xtensa® 32-bit LX6 processors, with a main frequency of up to 240Mhz, supporting WiFi functionality, and onboard 16MB Flash and 8MB PSRAM. Programs can be downloaded via the TYPE-C interface, and the robust configuration meets the resource demands of complex applications. The front is equipped with a 2.0-inch integrated capacitive touch screen, providing users with a smoother human-computer interaction experience.

The body has a built-in vibration motor, providing tactile feedback and vibration alert functions. The built-in RTC module and battery dedicated to RTC power supply offer precise timing functions. The power section features an AXP2101 power management chip for effective control of body power consumption, with a built-in blue power indicator light. Additionally, the body is equipped with a TF-card (microSD) slot and speaker. To ensure higher quality sound effects, an I2S digital audio interface amplifier chip is used to effectively prevent signal distortion. The left side and bottom of the body have independent power and reset (RST) buttons, and the three dots on the front of the screen are part of the touch screen, which can be programmed to map hot zones as three virtual buttons. The expansion board on the back of the body integrates a 6-axis IMU sensor and microphone.

Features

• Developed based on ESP32, supports Wi-Fi
• 16MB Flash, 8MB PSRAM
• Built-in speaker, power indicator light, vibration motor, RTC, I2S amplifier, capacitive touch screen, power button, reset button
• microSD slot (supports up to 16GB)
• Built-in lithium battery, equipped with a power management chip
• Independent board with built-in 6-axis IMU, PDM microphone
• M5-Bus interface
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Core2 V1.1
• 1 x USB Type-C cable (20cm)
• 1 x Hex wrench

Applications

Specifications

Specification	Parameter
SoC	ESP32-D0WDQ6-V3 @ Dual-core processor, 240MHz main frequency
DMIPS	600
SRAM	520KB
Flash	16MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V@500mA
Host Interface	USB Type-C x 1, GROVE (I2C+I/O+UART) x 1
LED	Blue power indicator LED
Button	Power button, RST button, screen virtual buttons * 3
Vibration Alert	Vibration motor
IPS LCD Screen	2.0″@320 x 240 ILI9342C
Capacitive Touch IC	FT6336U
Speaker Amplifier	1W (Size: 0928)
Microphone	SPM1423
I2S Amplifier	NS4168
IMU	MPU6886
RTC	BM8563
PMU	AXP2101
Current Meter	INA3221
USB Chip	CH9102F
DC-DC Boost	SY7088
microSD Slot	Supports up to 16G
Lithium Battery	500mAh @ 3.7V
Antenna	2.4G 3D antenna
Operating Temperature	0 ~ 60°C
Base Screw Spec	Hex socket countersunk head M3
Reserved Internal PCB Ports	Battery port (Spec: 1.25mm-2P) USB cable port (Spec: 1.25mm-4P)
Case Material	Plastic ( PC )
Product Size	54.0 x 54.0 x 16.5mm
Product Weight	45.1g
Package Size	80.0 x 59.9 x 21.6mm
Gross Weight	74.3g
