Description

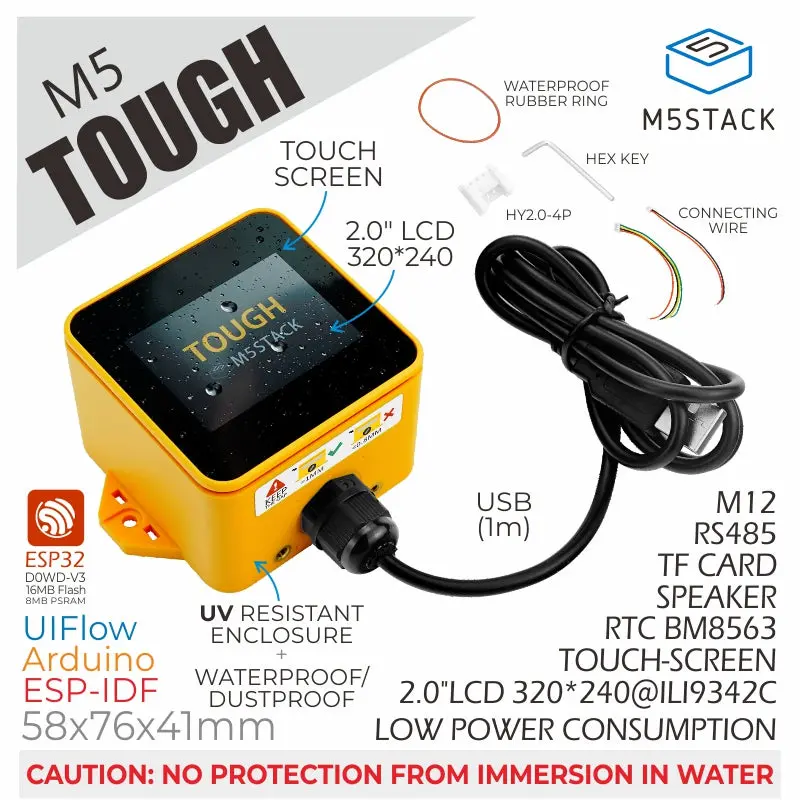

Tough is an industrial-grade programmable embedded controller. It is equipped with the Espressif ESP32 main control chip, which integrates Wi-Fi and features a dual-core low-power Xtensa® 32-bit LX6 microprocessor with a main frequency of up to 240MHz. The board includes 8M PSRAM + 16MB Flash memory, a 2.0-inch 320×240 full-color IPS display, a high-sensitivity capacitive touch panel, and a variety of peripheral and expansion interfaces. The fully enclosed casing offers dustproof and waterproof protection, ensuring stable circuit operation even in complex industrial environments. This controller is suitable for scenarios such as industrial field control, smart buildings, and outdoor data acquisition nodes.

Note

Do not immerse the casing in water. This product is not designed for immersion protection.

Features

• Developed based on ESP32, supports Wi-Fi
• 16MB Flash + 8MB PSRAM
• Onboard microSD slot
• Built-in speaker, I2S power amplifier
• IPS display, capacitive touch
• AXP192 power management chip
• BM8563-RTC clock, supports RTC timer wake-up
• Integrated DC 6 ~ 24V to 5V DC-DC step-down circuit
• Dustproof and waterproof design, UV-resistant plastic
• Supports FreeRTOS
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Tough
• 1 x USB Type-C cable (1m)
• 1 x 2.5mm hex wrench
• 1 x 1.5mm hex wrench
• 1 x 1.25-2P single-ended terminal wire
• 1 x 1.25-4P single-ended terminal wire
• 1 x Waterproof O-ring
• 1 x HY2.0-4P connector

Applications

• IoT Controller
• Data Acquisition
• Timer Controller

Specifications

Specification	Parameter
SoC	ESP32-D0WDQ6-V3@dual-core processor, main frequency 240MHz
SRAM	520KB
Flash	16MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	USB (5V@500mA) / RS485 interface power input (6 ~ 24V@1A)
Interfaces	USB Type-C x 1, HY2.0-4P x 4 (RS485 / I2C / GPIO / UART interfaces)
IPS LCD	2.0″ 320 x 240 ILI9342C full-color display, max brightness 853 nits
Touch Controller	CHSC6540
Speaker Setup	NS4168 16-bit I2S amplifier + 1W speaker
RTC Clock Chip	BM8563
PMU	AXP192
USB Chip	CH9102 USB-TTL serial/programming interface
microSD Slot	Supports memory cards up to 16GB
Antenna	3D Wi-Fi antenna
Casing Material	UV-resistant plastic
Product Size	76.0 x 58.0 x 41.6 mm
Product Weight	117.5 g
Package Size	101.0 x 83.0 x 46.0mm
Gross Weight	151.0 g
