Description

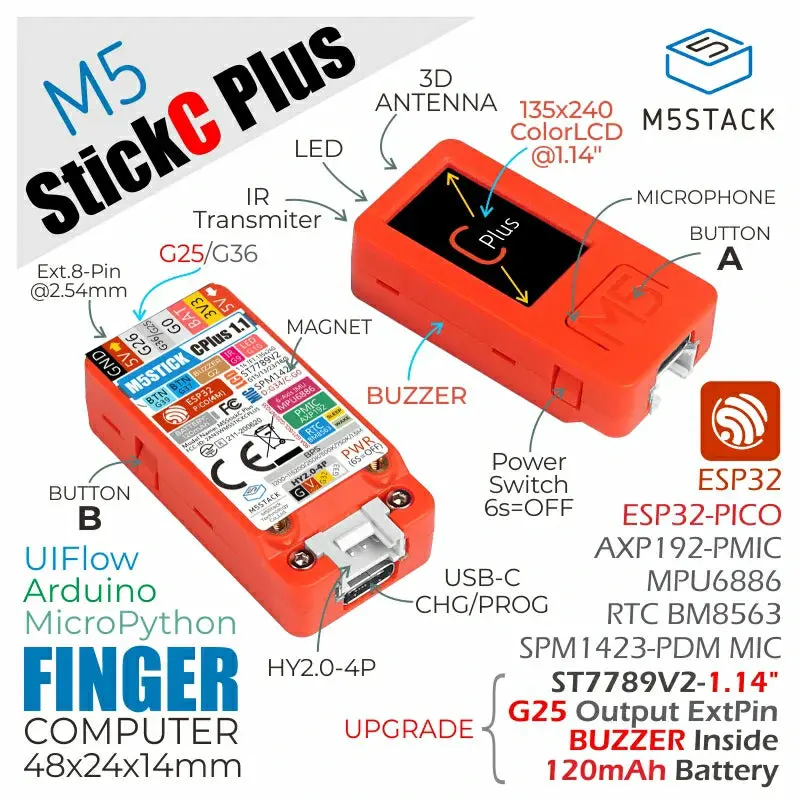

StickC-Plus is the large-screen version of the M5StickC. Its main controller uses the ESP32-PICO-D4 module, which supports Wi-Fi. Inside its compact body, it integrates rich hardware resources such as infrared, RTC, microphone, LED, IMU, buttons, buzzer, PMU, and more. While retaining the original functions of the M5StickC, it adds a passive buzzer. Additionally, the screen size has been upgraded to 1.14 inches, with a resolution of 135 x 240 TFT, increasing the display area by 18.7% compared to the previous 0.96-inch screen. The battery capacity is 120mAh, and the interface supports HAT and Unit series products.

This compact and exquisite development tool can unleash unlimited creative potential. StickC-Plus can help quickly build IoT product prototypes, greatly simplifying the entire development process. Even for beginners who are just starting to learn programming, it can be used to create interesting applications and apply them to real-life scenarios.

Features

• Based on ESP32 development, supports Wi-Fi
• Built-in 3-axis accelerometer and 3-axis gyroscope
• Built-in Red LED
• Integrated infrared transmitter
• Built-in RTC
• Integrated microphone
• User button, LCD (1.14 inch), power/reset button
• 120 mAh lithium battery
• Expansion interface
• Integrated passive buzzer
• Wearable & mountable
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x StickC-Plus

Applications

• Wearable devices
• IoT controllers
• STEM education
• DIY projects
• Smart home devices

Specifications

Specifications	Parameter
SoC	ESP32-PICO-D4@Dual-Core Processor, up to 240MHz
Flash	4MB
Wi-Fi	2.4 GHz Wi-Fi
DMIPS	600
SRAM	520KB
Input Voltage	5V@500mA
Interface	USB Type-C x 1, GROVE (I2C+I/O+UART) x 1
LCD Screen	1.14 inch, 135 x 240 Colorful TFT LCD, ST7789v2
Microphone	SPM1423
Button	Custom Button x 2
LED	Red LED x 1
RTC	BM8563
PMU	AXP192
Buzzer	Onboard Buzzer
IR	Infrared Transmission
MEMS	MPU6886
Antenna	2.4G 3D Antenna
External Pins	G0, G25/G26, G36, G32, G33
Battery	120mAh@3.7V, inside vb
Operating Temperature	0 ~ 60°C
Shell Material	Plastic (PC)
Product Size	48.0 x 24.0 x 13.5mm
Product Weight	16.9g
Package Size	104.4 x 65.0 x 18.0mm
Gross Weight	24.1g
