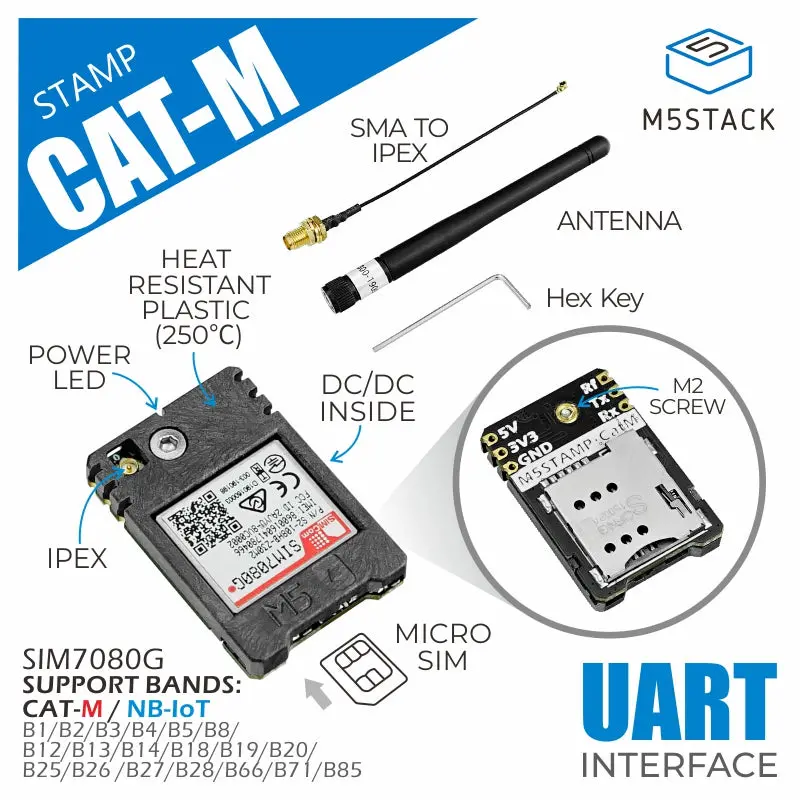

M5Stamp Cat-M LTE Module with SIM7080G

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Stamp CatM is a compact international version CatM & NB-IoT dual-mode wireless communication module. It adopts the SIM7080G module solution, covering most CatM & NB-IoT frequency bands globally, and can adapt to different data communication rate/throughput requirements. The module uses serial communication, AT command control, and supports multiple communication protocols. It is very suitable for IoT applications such as remote control, remote monitoring, and remote medical care.

Features

• SIM7080G / UART interface, AT Command control
• Supports CatM, NB-IoT dual modes
• Covers most CatM & NB-IoT frequency bands globally
• Uplink and downlink speeds:
  • Cat-M: Uplink: 1119Kbps Downlink: 589Kbps
  • NB-IoT: Uplink: 150Kbps Downlink: 136Kbps
• Supported protocols:
  • TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT and other communication protocols
• Onboard IPEX external antenna interface, can be connected to an SMA rod antenna via a feeder
• Card slot specification: MicroSIM
• Development platforms:
  • Arduino, UIFlow
• Multiple forms
  • Supports various application forms (SMT, DIP, flying leads)
  • Equipped with high-temperature plastic armor, supports SMT reflow temperature (230°C)
• Module certifications:
  • Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF
  • Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC
• Antenna certification information
  • Telec

Includes

• 1 x Stamp CatM
• 1 x SMA rod GSM antenna YHJ-108-4G-B (with frequency band label sticker)
• 1 x SMA to IPEX feeder AH-15CM-IPEX 10cm
• 1 x L-shaped hex key 1.5mm (compatible with M2 screws)

Applications

• Remote control/data collection
• Cloud data applications

Specifications
