Description

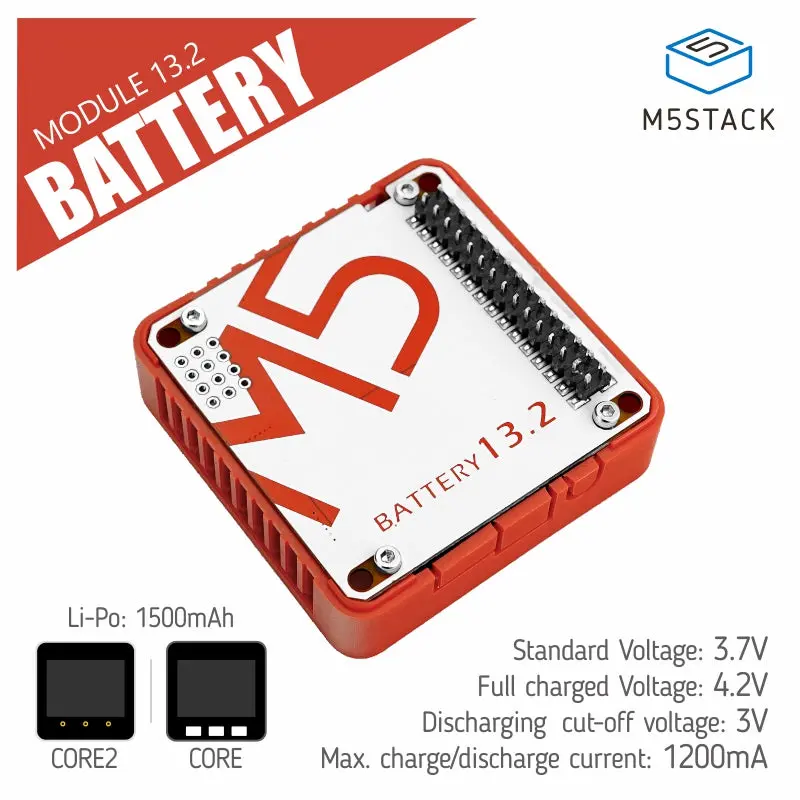

Module13.2 Battery is a 1500 mAh high-capacity lithium battery expansion module in the M5Stack stackable module series. The battery integrates a Seiko protection board with a higher cutoff protection voltage, effectively preventing overcharge and over-discharge for safer operation. It supports stacking multiple battery modules, significantly extending device battery life.

Features

• Nominal capacity: 1500mAh (0.2C)
• Integrated Seiko protection board to prevent overcharge and over-discharge
• Supports stacking multiple battery modules to extend battery life
• Battery has passed multiple safety tests
• Laboratory test data:
  • Charging current 791mA, full charge time 110 minutes (Test hardware: Basic + Module13.2 Battery)
  • Discharge current 330mA, discharge duration 265 minutes (Test hardware: Basic + Module13.2 Battery + M5GO BOTTOM: built-in battery removed, RGB LED x10 on, maximum brightness)

Includes

• 1 x Module13.2 Battery

Applications

• Battery expansion

Specifications
