Description

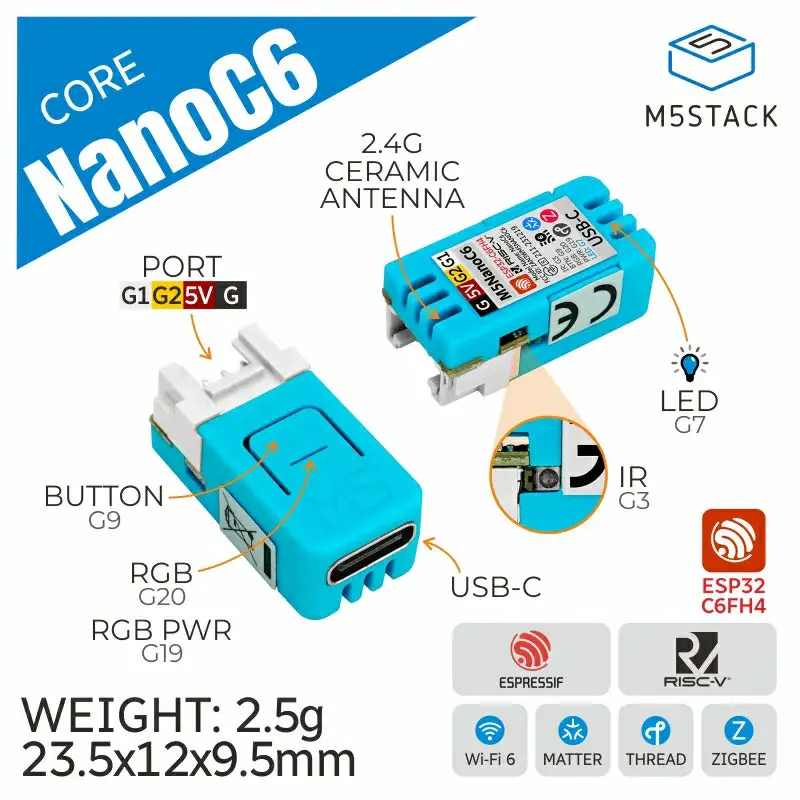

NanoC6 is a micro and low-power IoT development board in the M5Stack development kit series. It is equipped with an ESP32-C6FH4 SoC, supporting wireless communication technologies such as Wi-Fi 6 and ZigBee, and features a built-in infrared transmitter for convenient control of infrared IoT devices. The onboard ceramic antenna ensures a stable wireless communication connection.

Additionally, the device is equipped with programmable RGB LEDs, allowing for personalized visual effects in projects. The inclusion of a Grove interface enables flexible expansion with various M5 devices (customizable to connect different types of devices, such as those following UART/I2C communication protocols), providing developers with rich hardware expansion possibilities.

This development board is suitable for smart homes, industrial automation, health monitoring, and IoT devices, offering a comprehensive development solution for innovative projects.

WiFi 6 M5NanoC6 is the first core control board to support WiFi 6, supporting the 2.4 GHz Wi-Fi 6 protocol (802.11ax) and backward compatibility with 802.11 b/g/n.
WiFi 6 offers higher speeds, greater capacity, lower latency, and enhanced security compared to previous WiFi protocols.

Features

• Supports (2.4GHz) Wi-Fi 6, Zigbee, and Thread, Matter wireless protocols
• Built-in infrared LED and RGB
• Equipped with Grove interface
• Ceramic antenna
• Compact size
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x NanoC6

Applications

• Smart home systems
• Industrial control systems
• Environmental monitoring systems
• Agricultural IoT systems
• Healthcare
• Consumer electronics
• Service robots

Specifications

Specification	Parameter
SoC	ESP32-C6FH4@RISC-V single-core, main frequency 160MHz, supports CDC
Flash	4MB
Wi-Fi	2.4 GHz Wi-Fi 6 (802.11ax), backward compatible with 802.11b/g/n
Zigbee	Zigbee 3.0
Thread	Thread 1.3
Matter	Supported
RGB	WS2812
IR Remote Parameters	IR transmission distance at ∠0°: 632CM IR transmission distance at ∠45°: 83CM IR transmission distance at ∠90°: 29CM
Grove Maximum Output Current	DC 5V@600mA (Output capability depends on USB power supply capacity)
Standby Current (Deep Sleep Mode)	USB Type-C power supply: DC 5V@125.5uA Grove power supply: DC 5V@50uA
Standby Current (ULP Mode)	USB Type-C power supply: DC 5V@252uA Grove power supply: DC 5V@201.5uA
Operating Current	In Wi-Fi mode: DC 5V@106.2mA
Wi-Fi Range Test (Antenna facing up, back facing the test)	54.9m
Operating Temperature	0 ~ 40°C
Product Size	23.5 x 12.0 x 9.5mm
Product Weight	2.7g
Package Size	100.6 x 80.0 x 10.5mm
