M5Stack CoreS3 SE IoT Controller with Removable Bottom Cover (No Built-in Battery)

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; /* Maintain brand color */ margin-top: 24px; margin-bottom: 12px; font-weight: 500; /* Lightened font-weight for a more modern look */ padding-bottom: 6px; border-bottom: 2px solid #e6e6e6; /* Subtle separation line */}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; /* Blue links */ text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B; /* Darker blue on hover */}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

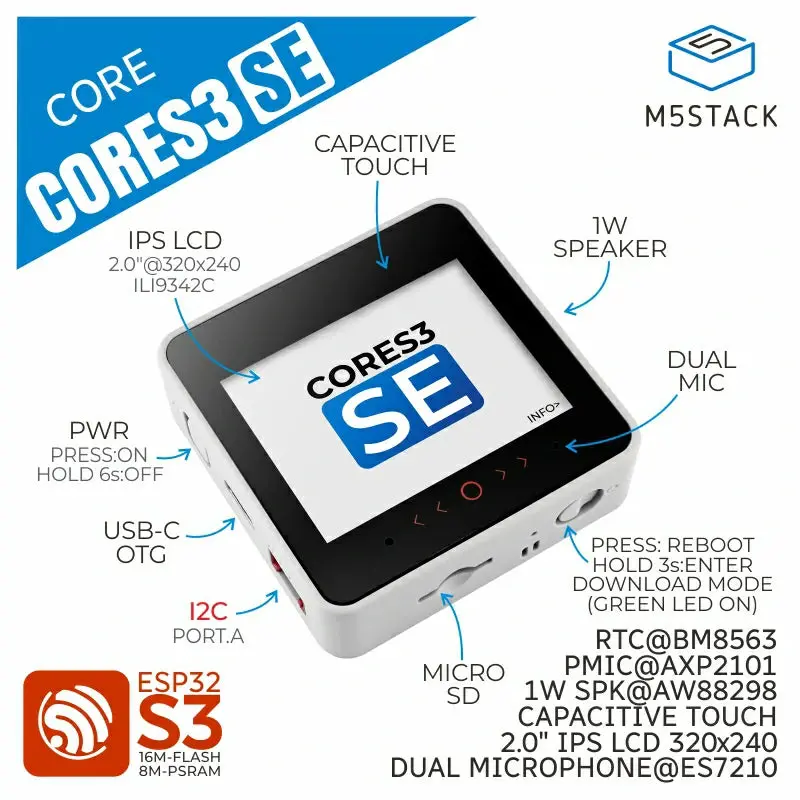

CoreS3-SE is a lightweight version of the third-generation CoreS3 host in the M5Stack development kit series. Its main controller adopts the ESP32-S3 solution, with a dual-core Xtensa LX7 processor, running at 240 MHz, featuring built-in (2.4G) Wi-Fi, onboard 16MB Flash and 8MB PSRAM. Programs can be downloaded via the USB Type-C interface, supporting OTG and CDC functionality for convenient connection of USB devices and firmware flashing. The front is equipped with a 2.0-inch capacitive touch IPS screen with a high-strength glass panel.
The power supply section uses an AXP2101 power management chip along with 4-way power flow control circuits, with an overall low-power design.
Onboard microSD card slot. Onboard BM8563 RTC chip provides accurate timing and sleep-timer wake-up functionality.
Audio output uses a high-fidelity 16-bit I2S amplifier chip AW88298, with a built-in 1W speaker. Audio input uses the ES7210 audio decoder chip + dual microphone inputs.
Independent power button and reset (RST) button are located on the side of the device. With a built-in delay circuit, holding the reset button enters download mode.
This product is suitable for IoT development, various DIY project development, smart home control systems, and industrial automation control systems.

Features

• Based on ESP32-S3 development, supports Wi-Fi @16MB Flash, 8MB PSRAM
• Speaker, dual microphones
• Capacitive touch screen
• microSD card slot
• High-strength glass panel
• Supports OTG and CDC functionality
• Uses AXP2101 power management, with a low power consumption design
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 × CoreS3-SE
• 1 × Hex Key L-Shape 2.0mm (For M2.5 Screw)

Applications

Specifications

Specification	Parameter
SoC	ESP32-S3@Xtensa LX7 Dual-Core, 240MHz
USB	USB OTG, USB Serial/JTAG
Flash	16MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
Touch	FT6336U@Capacitive touch, touch area pixels 320 x 280
LCD Screen	2.0″@320 x 240 ILI9342C, SPI communication
Power Management Chip	AXP2101
RTC	BM8563
Speaker	1W@9028
Amplifier	16bits-I2S amplifier chip AW88298
Audio Decoder Chip	ES7210, Dual-microphone input
BUS Pins	G0/G1/G2/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G17/G18/G35/G36/G37/G43/G44
Lithium Battery Charging Current	5V@198mA
Max Grove Output Current (Battery Power)	DC 4.2V@940mA
Max Grove Output Current (USB Power)	DC 5V@680mA
Operating Temperature	0 ~ 40°C
Power Consumption	Battery Power: Standby Mode: DC 4.2V@104.64uA; Working Mode: DC 4.2V@109.67mA USB Power: Working Mode: DC 5V@166.27mA
Product Size	54.0 x 54.0 x 15.5mm
Product Weight	37.8g
Package Size	133.0 x 93.5 x 22.5mm
Gross Weight	54.5g

Product Comparison

Compared with CoreS3, CoreS3-SE does not include a camera (GC0308), proximity sensor (LTR-553ALS-WA), IMU (BMI270), or magnetometer (BMM150). CoreS3-SE adopts a medium gray color different from the black-gray of CoreS3, with the touch area of the glass panel extending to the camera position. The DinBase base originally included in the CoreS3 kit is also removed.

Hardware Peripheral	CoreS3	CoreS3-SE
Camera (GC0308)	√	×
Proximity Sensor (LTR-553ALS-WA)	√	×
IMU (BMI270)	√	×
Magnetometer (BMM150)	√	×
RTC	√	√
Microphone	√	√
Speaker	√	√
PIMC (AXP2101)	√	√
16MB Flash and 8MB PSRAM	√	√
Touch	√	√
