Precision Voltage and Amperage Monitoring Solution Using M5Stack and M5StampS3

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

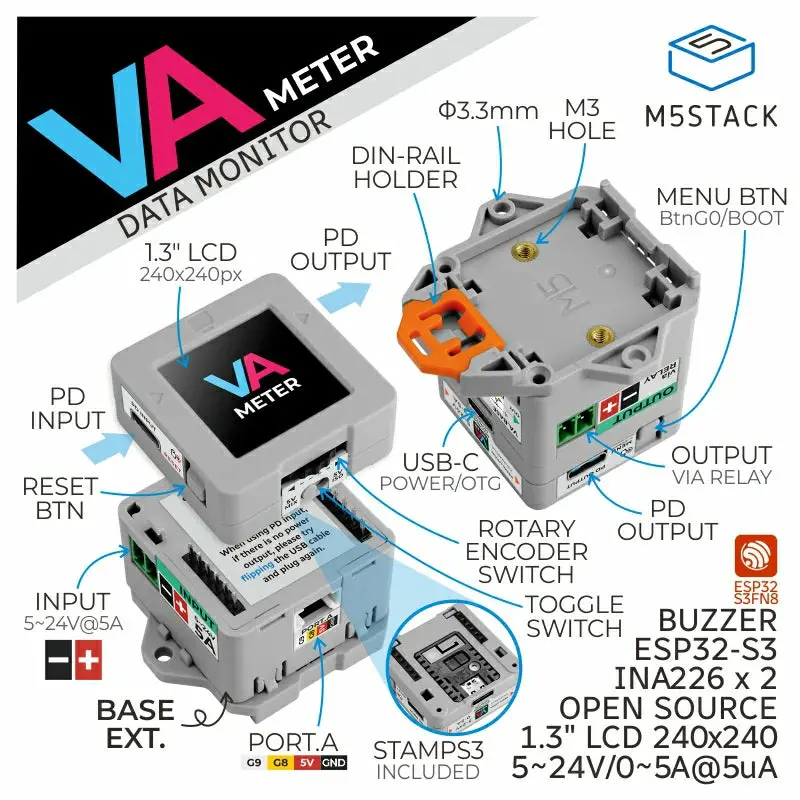

VAMeter is a professional, programmable, high-precision power meter designed for accurate voltage and current measurements. Powered by the Stamp-S3 module, it features Wi-Fi connectivity and two cascaded INA226 current/voltage sensing circuits, delivering current detection resolutions of 2.5 µA and 250 µA. The measurement range supports 0-5 A and 5-24 V (1-24 V in isolation mode).

The device offers flexible power-supply options through the USB-C port or the Base terminal, with built-in power and signal isolation. A slide switch lets users choose between isolated measurements powered via USB and non-isolated measurements powered directly from the test source, meeting various application needs.

The included expansion BASE provides relay on/off control and a Grove port for secondary development. Additional features include OTA firmware upgrades and USB MSC/OTG support, allowing users to view and edit data and configuration files stored in the main controller’s file system from a PC.

M5Stack also supplies a free online data API for uploading test data to the EZData platform, enabling remote access and visualization and greatly simplifying IoT application development.

VAMeter is a highly practical and developer-friendly instrument, ideal for projects requiring precise current and voltage measurements, as well as for industrial automation, equipment monitoring, smart grid, and related fields.

Features

• High-precision current detection (2.5 µA / 250 µA resolution switching)
• Wide voltage input (5-24 V)
• Cloud data display via EZData
• PD input (no PD trigger built in)
• Multiple power-supply methods (PD INPUT / Stamp-S3 / external terminal block)
• Power and signal isolation
• USB MSC/OTG support
• Open-source hardware & software
• Wireless OTA upgrade
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x VAMeter
• 1 x VAMeter Base
• 2 x 3.81-2P Terminal Block
• 4 x Hanger (Small)

Applications

• Industrial automation
• Equipment monitoring
• Power testing & analysis
• IoT devices
• Remote monitoring & data acquisition

Specifications

Specification	Parameter
SoC	ESP32S3FN8@Xtensa 32-bit LX7 dual-core processor, main frequency 240MHz
Power Detection Chip	INA226
Flash	8MB
Wi-Fi	2.4 GHz Wi-Fi
INA226 Communication Address	Dual detection chips INA226: 0x40 / 0x41
Display	1.3 inch @ 240 × 240 pixels
Display Driver	ST7789
PD Input Power	5-24 V @ 0-5 A
Current Resolution	2.5 µA / 250 µA
Current Sampling Err	Small current (1-100 mA): 1.01 % Large current (100 mA-5 A): 0.94 % µA-level current: 0.69 %
Voltage Error	Measurement error: 0.11 %
Power Consumption	Stamp-S3 USB powered: DC 5 V / 123.5 mA PD INPUT: DC 5 V / 118 mA DC 12 V / 66.8 mA DC 24 V / 26 mA
PD OUTPUT Capability	DC 24 V @ 3 A 68 ℃ DC 24 V @ 5 A 92 ℃
User Interface	Rotary encoder switch, Reset button, Boot button, onboard buzzer
Relay	DC 5 – 24 V @ 5 A
Operating Temp.	0 – 40 °C
Product Size	51.5 × 48.0 × 40.5 mm
Product Weight	43.4 g
Package Size	160.9 × 93.0 × 31.6 mm
Gross Weight	68.4 g
