Description

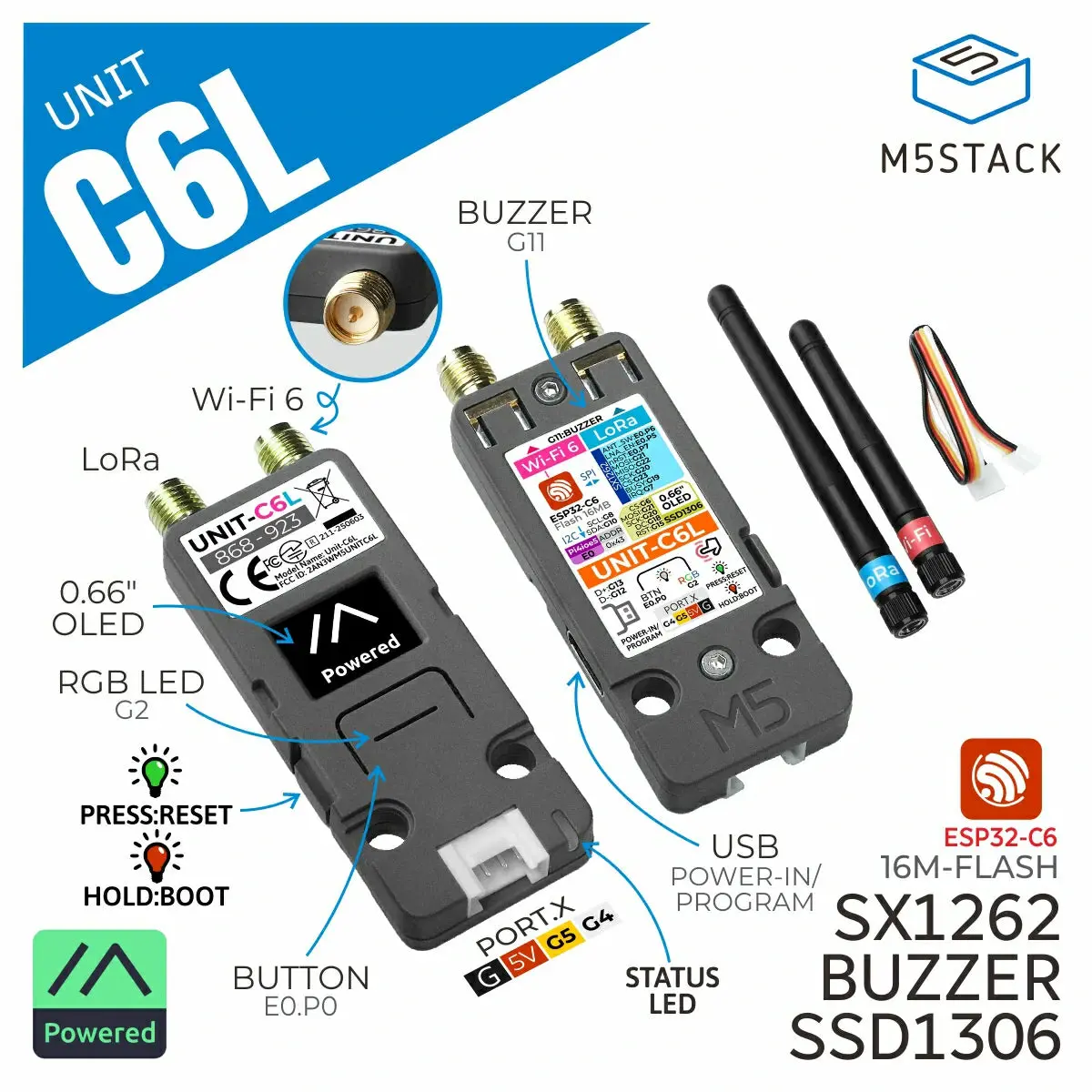

Unit C6L is a highly integrated LoRa communication unit, equipped with the Stamp C6LoRa module (featuring ESP32-C6 as the core controller, integrating SX1262 LoRa transceiver and RF switch circuit), supporting 868 ~ 923 MHz operating frequency range. Unit C6L integrates a 0.66″ OLED monochrome display, programmable RGB indicator, buzzer, and user button, providing intuitive human-machine interaction. The device supports connection to the Meshtastic network or secondary development, enabling rapid deployment of private LoRa networks, suitable for remote monitoring, outdoor exploration, and emergency communication scenarios. In hardware design, Unit C6L offers 2x SMA antenna interfaces, respectively for 2.4 GHz Wi-Fi 6 and LoRa communication, ensuring scalability and stability of wireless performance. It also integrates over-voltage protection chip AW32901FCR to enhance device stability. With HY2.0-4P expansion interface and LEGO-compatible mounting holes, users can easily expand sensors or modules to quickly build more application scenarios.
Features
- Supports Meshtastic
- ESP32-C6 core controller
- 2.4 GHz Wi-Fi 6
- SX1262 LoRa transceiver
- LoRa operating frequency: 868 ~ 923 MHz
- Programmable RGB LED WS2812C
- SSD1306 0.66″ OLED monochrome display, resolution 64×48
- Human-machine interaction:
- Buzzer
- User button
- Integrated over-voltage protection chip AW32901FCR
- HY2.0-4P expansion interface
- LEGO-compatible mounting holes
Includes
- 1 x Unit C6L
- 1 x 2.4 GHz SMA whip antenna
- 1 x 868 MHz SMA whip antenna
- 1 x HY2.0-4P Grove Cable (20cm)
Applications
- Smart agriculture
- Industrial monitoring
- Outdoor communication
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-C6 (RISC-V 32-bit high-performance single-core processor 160MHz + RISC-V 32-bit low-power single-core processor 20 MHz) |
| Flash | 16MB |
| Display | SSD1306 0.66″ OLED monochrome screen, resolution 64 x 48 |
| LoRa | SX1262 |
| Antenna Specs | Wi-Fi Antenna: length 84mm, SMA connector (female thread, female pin), operating frequency 2.4 GHz, gain 3dBi LoRa Antenna: length 108mm, SMA connector (female thread, female pin), operating frequency 868 MHz, gain 3dBi |
| Max LoRa TX Power | +22dBm |
| Power Consumption | Sleep mode (HY2.0-4P powered): 696.86uA Sleep mode (USB Type-C powered): 866.42uA LoRa RX standby (USB Type-C powered): 85.18mA LoRa max power continuous TX (USB Type-C powered): 80.02mA |
| LoRa RX Sensitivity | -147 dBm (LoRa low data rate mode) |
| Power Input | DC 5V (USB Type-C) |
| RGB LED | 1x WS2812C |
| Product Size | 62.0 x 24.0 x 8.0mm (excluding antenna) |
| Product Weight | 13.6g (excluding antenna) |
| Package Size | 102.0 x 43.0 x 11.5mm |
| Gross Weight | 38.6g |
