INA226 10A Current, Voltage, and Power Monitoring Module

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

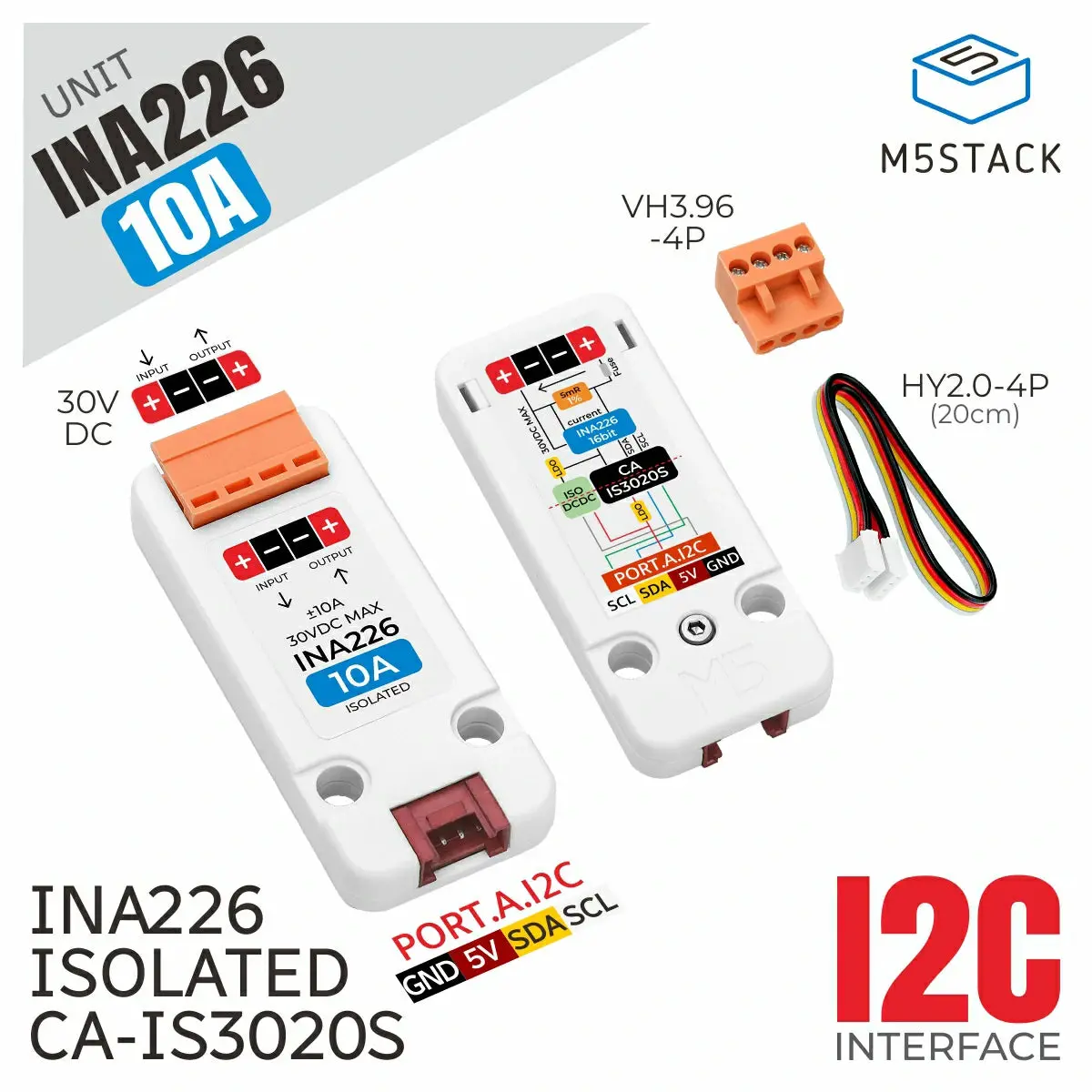

Unit INA226-10A is a fully isolated high-precision current and voltage measurement unit, suitable for scenarios measuring DC 0 ~ 30V voltage and up to 10A current, supporting simultaneous voltage and current measurements. Users can read key parameters such as current, voltage, and power obtained by this unit via the I2C communication interface, supporting multiple main control platforms. It also integrates an isolated power module and I2C signal isolator, achieving complete electrical isolation between the measurement end and the main control end, and features a self-resetting fuse that can automatically blow when the current range is exceeded, effectively ensuring the safety of equipment and personnel, improving system anti-interference ability, and is suitable for a variety of electrical parameter acquisition application scenarios such as power management, battery monitoring, and industrial automation.

Features

• Integrated 16-bit high-precision ADC
• Current, voltage, and power integrated measurement
• ±10A range, bidirectional current
• Wide voltage input (DC 0 ~ 30V)
• I2C communication interface
• Power and signal isolation
• Development Platform:
  • Arduino
  • UiFlow2

Includes

• 1 x Unit INA226-10A
• 1 x HY2.0-4P Grove Cable (20cm)
• 1 x VH3.96-4P Terminal

Applications

Specifications

Specification	Parameter
Power Detection IC	INA226, high-precision, bidirectional current / power monitoring IC
Voltage Detection Range	DC 0 ~ 30V
Current Detection Range	±10A (bidirectional current measurement)
Communication Interface	I2C @0x41
Operating Current	DC 5.01V@16.55mA
Product Size	58.0 x 24.0 x 10.2mm
Product Weight	8.5g
Package Size	138.0 x 93.0 x 11.2mm
Gross Weight	16.8g

Product Comparison

Product Compare	Unit INA226-1A	Unit INA226-10A
Range	±1A, bidirectional current	±10A, bidirectional current
Shunt Resistor	80mΩ	5mΩ
Current Resolution	32μA	0.32mA
