Dual Fingerprint Scanner Model A-K323CP

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

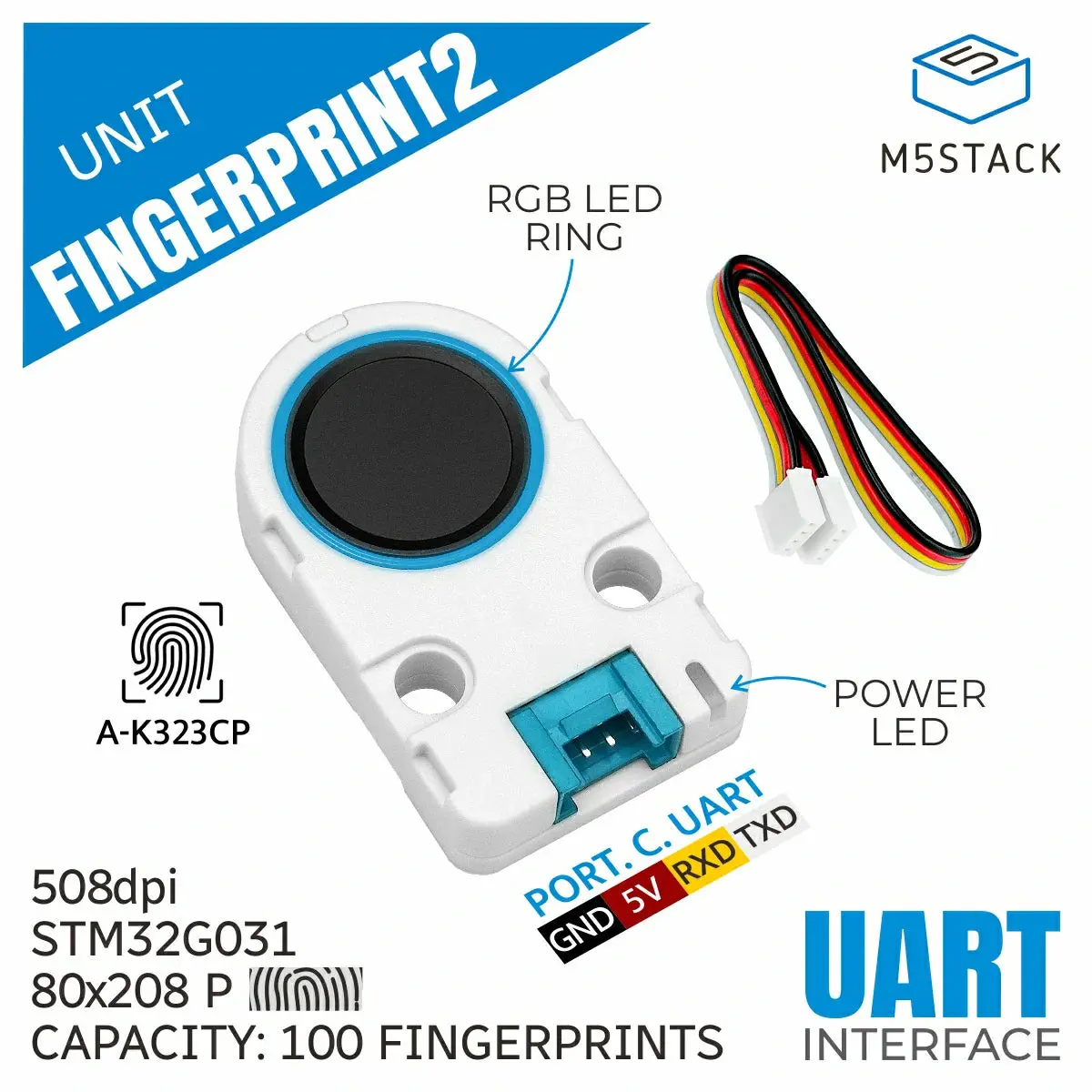

The Unit Fingerprint2 is a high-performance fingerprint recognition sensor unit, internally integrating an STM32 core controller and an A-K323CP all-in-one fingerprint recognition module. It uses a semiconductor capacitive sensor with functions such as fingerprint acquisition, feature extraction, registration, comparison, storage, and retrieval. The module has a built-in fingerprint recognition algorithm capable of adapting to both dry and wet fingers. It offers flexible fingerprint data management, high data security, and fast search and positioning functions. This unit adopts a UART communication interface for easy integration with various main control platforms and includes a multicolor LED ring and power indicator for interactive status prompts. It is ideal for rapid development and integration in scenarios such as smart door locks, access control attendance, identity authentication, financial payment, and small security systems.

Features

• Integrated STM32 core controller
• High-resolution capacitive fingerprint sensor with high-accuracy recognition capability
• Fingerprint capacity of 100 entries
• Adaptive processing for both dry and wet fingers
• Fingerprint management, precise matching, and search functions
• Built-in RGB LED ring supporting seven colors for (working status) indication
• Development Platform
  • UiFlow2
  • Arduino IDE
  • PlatformIO

Includes

• 1 x Unit Fingerprint2
• 1 x HY2.0-4P Grove Cable (20cm)

Applications

• Smart door locks
• Access control attendance
• Identity authentication
• Financial payment
• Small security systems

Specifications

Specification	Parameter
MCU	STM32G031G8U6
Fingerprint Module	A-K323CP
Fingerprint Resolution	508 dpi
Image Pixel	80 * 208
Image Acquisition Size	8230 Bytes (80 * 208 / 2 = 8320, 4 bits per pixel)
Fingerprint Capacity	100 entries
Fingerprint Data Size	7262 Bytes / entry
Communication Method	UART 115200bps @ 8N1
Power Consumption	Working mode: Breathing light ON 40mA; Breathing light OFF 37.25mA Sleep mode: 14.11mA
Product Size	24.0 x 62.0 x 8.0mm
Product Weight	6.1g
Package Size	138.0 x 93.0 x 11.0mm
Gross Weight	11.6g
