Description

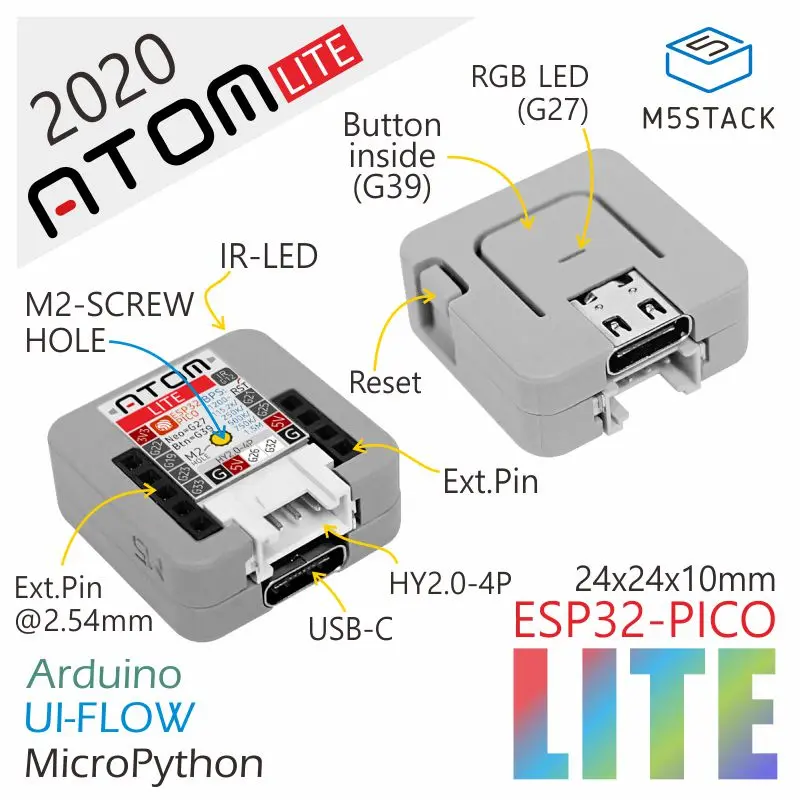

Atom-Lite is a very compact development board in the M5Stack development kit series, with a size of only 24.0 x 24.0 mm, providing more GPIO for user customization, making it very suitable for embedded smart hardware development. The main controller uses the ESP32-PICO-D4 solution, integrates a Wi-Fi module, has a built-in 3D antenna, and features 4 MB of SPI flash, providing Infra-Red, RGB Led, button, and GROVE/HY2.0 interfaces. The onboard USB Type-C interface allows for quick program upload and download, and there is an M2 screw hole on the back for fixing.

Features

• Based on ESP32 development
• Compact body
• Built-in infrared transmission function
• Programmable button
• RGB LED indicator
• Expandable pins and interfaces
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Atom-Lite

Applications

Specifications

Specification	Parameter
SoC	ESP32-PICO-D4@Dual-core processor, 240MHz
DMIPS	600
SRAM	520KB
Flash	4MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V @ 500mA
Host Interface	USB Type-C x 1, GROVE(I2C+I/O+UART) x 1
PIN Interface	G19, G21, G22, G23, G25, G33
RGB LED	SK6812 3535 x 1
IR	IR transmitter
Button	Customizable button x 1
Antenna	2.4G 3D antenna
Operating Temp	0 ~ 40°C
Case Material	Plastic (PC) + ABS
Product Size	24.0 x 24.0 x 9.5mm
Product Weight	5.5g
Package Size	81.0 x 65.0 x 13.0mm
Gross Weight	10.9g
