Atom Matrix ESP32 Smart Display Development Kit

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

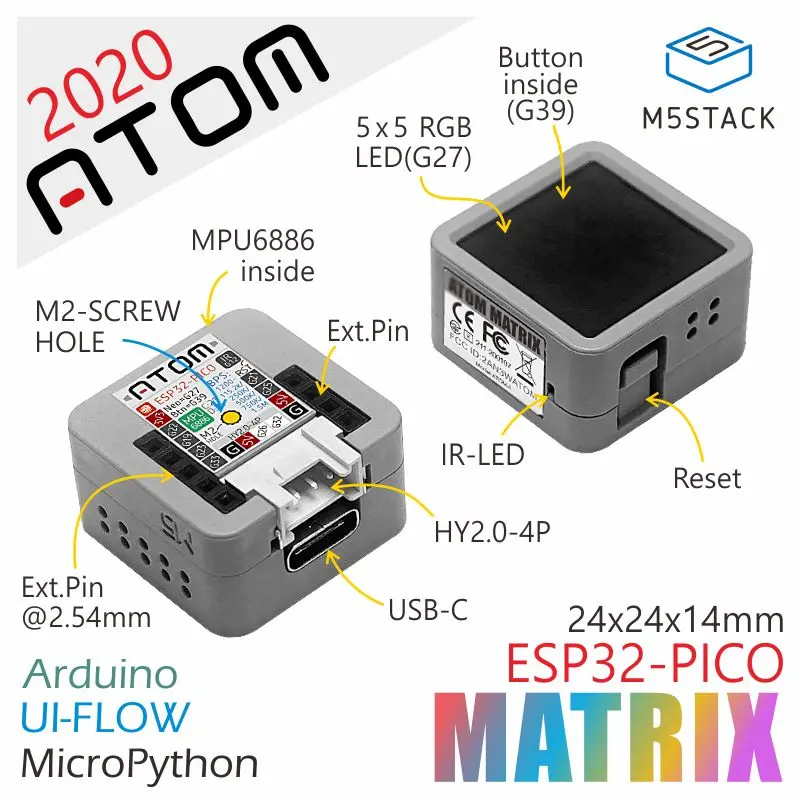

Atom-Matrix is an ultra-compact development board in the M5Stack series, measuring only 24.0 x 24.0 mm. It offers additional GPIOs for user customization and is ideal for embedded smart-hardware projects. Powered by the ESP32-PICO-D4 with an integrated Wi-Fi module and 4 MB SPI flash, the board carries an IR transmitter, a 5 × 5 RGB LED matrix, a built-in IMU (MPU6886), and a programmable button hidden beneath the Neo-LED matrix. A USB Type-C port enables quick program upload/download, and an HY2.0-4P connector is provided for peripheral expansion. An M2 mounting hole on the back allows secure installation.

Note

When using the FastLED library, a recommended brightness value for the RGB LEDs is 20. Do not set the brightness too high, or the LEDs and acrylic panel may be damaged. (In the Atom-Matrix library, we have mapped a suitable brightness range of 0–100.) Excessive brightness or full-on operation can generate high temperatures and damage the enclosure.

Features

• ESP32-based development
• Ultra-compact body
• Built-in 3-axis gyroscope and 3-axis accelerometer (I2C Address: 0x68)
• Programmable button
• RGB LED matrix display
• Infrared transmission
• Expandable pins and interfaces
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Atom-Matrix

Applications

Specifications

Specification	Parameter
SoC	ESP32-PICO-D4@Dual-core processor, 240MHz
DMIPS	600
SRAM	520KB
Flash	4MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5 V @ 500 mA
Host Interface	USB Type-C × 1, GROVE (I2C + I/O + UART) × 1
PINs	G19, G21, G22, G23, G25, G33
RGB LED	WS2812C 2020 × 25
MEMS	MPU6886 (I2C Address: 0x68)
IR	Infrared transmission
Button	Programmable button × 1
Antenna	2.4 G 3D antenna
Working Temp.	0 ~ 60 °C
Enclosure	Plastic (PC)
Product Size	24.0 x 24.0 x 13.8mm
Product Weight	7.3 g
Package Size	85.0 x 66.0 x 15.0mm
Gross Weight	12.6 g
