M5StickC Plus2 Smart Watch Development Kit with Accessories

Description

Product Status Notice This product is EOL (End of Life). Please order the new version: M5StickS3 ESP32S3 Mini IoT Dev Kit /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

StickC-Plus2 Watch Kit is a smartwatch kit that includes the M5StickC Plus2 IoT development board and a series of watch strap accessories. Leveraging the powerful hardware resources and expandability of the StickC-Plus2 itself, it can be used not only for time display but also for applications such as activity monitoring and smart home control. When paired with the M5Stack HAT hardware ecosystem for secondary development, it can unleash even more application possibilities for smart wearables.

Features

• Personalized support for custom display
• 200mAh battery
• Lightweight and portable

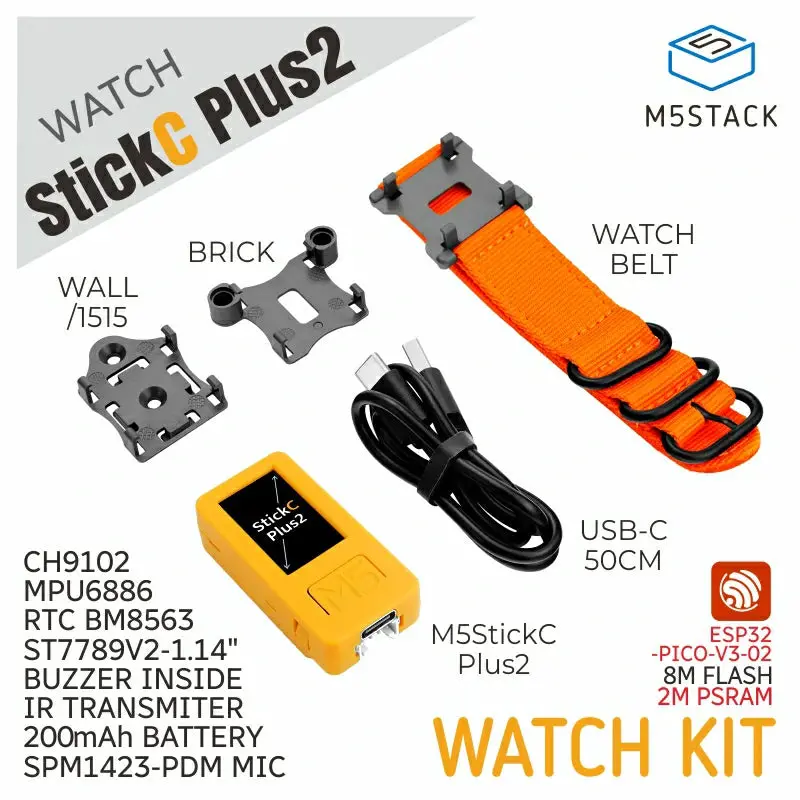

Includes

• 1 x StickC-Plus2
• 1 x LEGO adapter
• 1 x Wall/1515
• 1 x Watch strap
• 1 x Type-C USB (50cm)

Applications

• Smartwatch

Specifications

Specification	Parameter
SoC	ESP32-PICO-V3-02@Dual-Core Processor, 240MHz Main Frequency
Flash	8MB
PSRAM	2MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V@500mA
Interface	USB Type-C x1, GROVE (I2C+I/O+UART) x1
LCD Screen	1.14 inch, 135 x 240 Colorful TFT LCD, ST7789v2
Microphone	SPM1423
Buttons	Custom Buttons x3
Power Indicator LED	Green LED x1 (Non-Programmable)
RTC	BM8563
Buzzer	Onboard Buzzer
MEMS	MPU6886
Antenna	2.4G 3D Antenna
External Pins	G0, G25/G26, G36, G32, G33
Battery	200mAh@3.7V, inside
Operating Temperature	0~40°C
Strap Size & Weight	230 x 22 x 6mm / 12.3g
Product Size	38.0 x 26.7 x 10.6mm
Product Weight	28.8g
Package Size	125.0 x 65.0 x 23.0mm
Gross Weight	72.0g
