PowerHub Programmable Multi-Channel Power Controller

PowerHub is a programmable controller designed for multi-channel power management, providing precise control, monitoring, and low-power operation for industrial and IoT systems. It is powered by the ESP32-S3-WROOM-1U-N16R8 main control module, featuring a dual-core Xtensa® LX7 processor running up to 240 MHz, with integrated 2.4 GHz Wi-Fi, 16MB Flash, and 8MB PSRAM.

Dual-Processor Architecture for Precise Power Control

An onboard STM32G031G8U6 coprocessor works in conjunction with multiple INA226 voltage and current monitoring ICs and an electronic switch design to enable accurate power state management across multiple expansion interfaces. This architecture delivers fine-grained power consumption monitoring, reliable power switching, and low-power wake-up functionality for the entire system.

Flexible USB Connectivity

The USB Type-C interface supports firmware download and USB OTG functionality. An internal USB interface switch allows the bottom USB port to be dynamically routed to either the front USB Type-A or USB Type-C interface, enabling flexible expansion of USB peripherals.

Multiple Power Input Modes

PowerHub features an efficient and robust power management system that supports multiple power supply options, including DC input, 2S lithium battery power, and PWR485 / PWR CAN input power. This design ensures stable operation across a wide range of deployment scenarios, from fixed industrial installations to mobile or battery-powered systems.

Industrial Communication & Expansion Interfaces

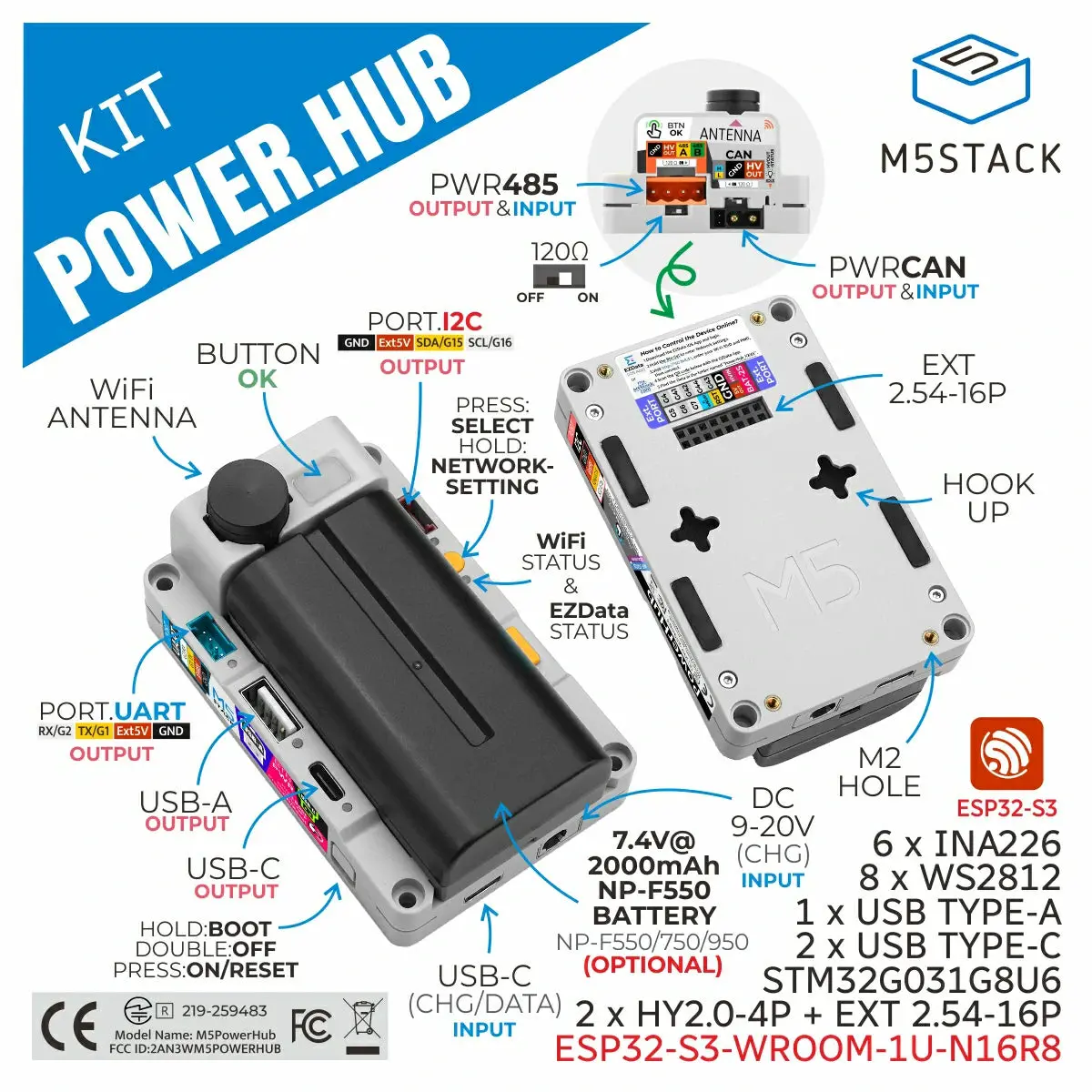

To support diverse applications, PowerHub is equipped with 2 × HY2.0-4P Grove ports, RS485, and CAN bus communication interfaces. These interfaces enable seamless integration with sensors, actuators, and industrial control equipment, making system expansion straightforward and reliable.

Application Scenarios

PowerHub is well suited for industrial automation control, smart home systems, and other IoT applications that require reliable power distribution, real-time monitoring, and flexible communication. It provides developers with a stable, efficient, and scalable power management solution for professional IoT deployments.

Features

• ESP32-S3-WROOM-1U-N16R8 core module
• Supports low-power timed wake-up
• USB Type-A / USB Type-C expansion ports
• 2 x HY2.0-4P expansion ports
• 2.54-16P expansion bus interface
• RS485 communication interface (with 120Ω terminal resistor switch)
• CAN bus communication interface (with 120Ω terminal resistor switch)
• 2.4 GHz SMA mini antenna
• Multiple power supply modes:
  • PWR485/PWR CAN input power
  • 2S battery power supply
  • DC 7 ~ 20V input power
• Human-machine interaction:
  • Multi-channel status indicator LEDs
  • 3 x physical buttons
• Multiple mounting options:
  • Magnetic design for easy attachment to metal surfaces
  • Cross mounting hole design on the back for easy wall mounting
  • LEGO mounting holes
  • M2 screw holes

Includes

• 1 x PowerHub
• 1 x NP‑F550 2000mAh removable battery (optional)

Applications

Specifications

Specification	Parameter
SoC	ESP32-S3-WROOM-1U-N16R8@Dual-core Xtensa LX7 processor, up to 240MHz
MCU	STM32G031G8U6
Flash	16MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
Expansion Ports	2 x HY2.0-4P + EXT 2.54-16P
RS485 Interface	Connector type: VH3.96-4P with 120Ω terminal resistor switch Reverse input voltage: DC 9 ~ 20V
CAN Interface	Connector type: XT30 (2+2) with 120Ω terminal resistor switch Reverse input voltage: DC 9 ~ 20V
USB Interface	1 x USB Type-A, 2 x USB Type-C
RGB LED	8 x WS2812
Antenna Specs	Size: 15 x 14mm, SMA connector (inner thread, inner hole), operating band: 2.4 GHz, gain: 2dB, VSWR ≤ 1.8
Compatible Battery	NP-F550/750/950, lithium 2S @ 7.4V
DC Power Input Port	Input voltage: DC 9 ~ 20V, spec: 5.5 x 2.1 mm, polarity: positive inside, negative outside
Operating Temp	0 ~ 40°C
Product Size	88.0 x 56.0 x 38.5mm
Product Weight	PowerHub: 71.0g PowerHub Kit (with battery): 174.8g
Package Size	110.0 x 73.0 x 42.0mm
Gross Weight	PowerHub: 105.5g PowerHub Kit (with battery): 208.2g
