Description

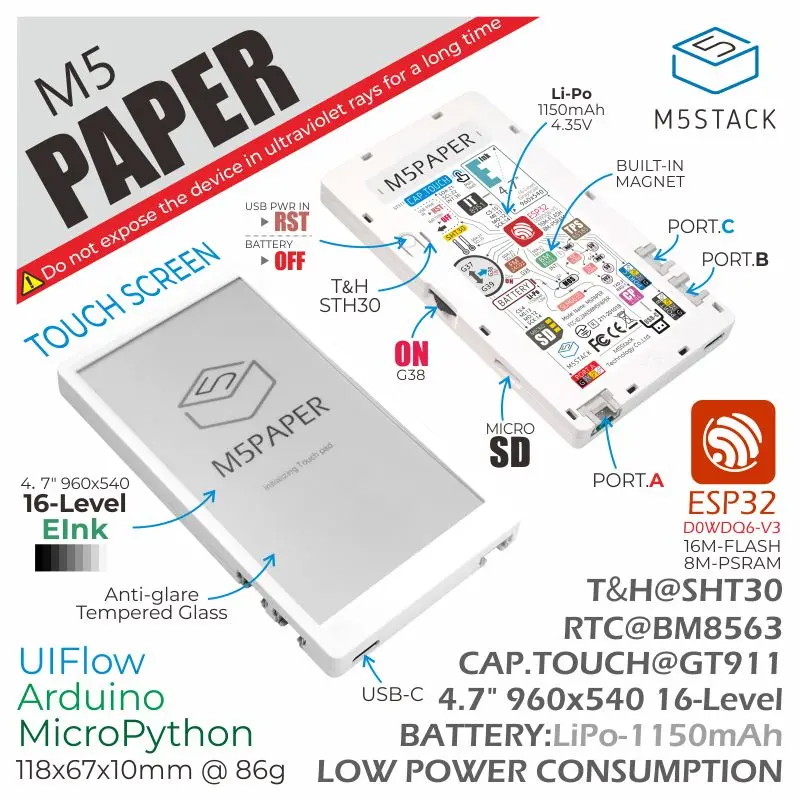

Paper is a touch-enabled e-ink screen main control device launched by M5Stack, with the controller using ESP32-D0WDQ6-V3. The front of the device is embedded with a 540 x 960 @4.7″ e-ink screen, supporting 16-level grayscale display. Paired with a GT911 capacitive touch panel, it supports two-point touch and various gesture operations. Compared to ordinary LCD screens, e-ink screens provide users with a better text reading experience and feature low power consumption and image retention when powered off.

The device integrates a dial switch, SHT30 temperature and humidity sensor, and physical buttons. For data storage, it reserves a TF-card (microSD) interface and integrates an FM24C02 storage chip, providing 2K-bit (256×8) EEPROM for user data storage during power loss.

It has a built-in 1150mAh lithium battery, and with the internal RTC (BM8563), it can achieve sleep and wake functions, providing strong battery life. Additionally, it offers 3 HY2.0-4P peripheral interfaces, allowing for the expansion of various sensor devices, bringing unlimited possibilities for subsequent application development.

Note 1. Do not expose to ultraviolet light for extended periods, as it may cause irreversible damage to the e-ink screen.
2. The low-power management scheme of Paper is different from that of CORE and StickC devices. When in use, the PWR button (press the dial switch) is used as the power button (long press for 2s). To power off the device, you need to use the software API or press the reset button on the back. When using USB power, the device cannot be powered off.
3. If you encounter issues with downloading programs (such as timeout or “Failed to write to target RAM”), try reinstalling the device driver. For driver downloads, please refer to the content below the documentation.

Features

• Embedded ESP32, supports WiFi
• Built-in 16MB Flash
• E-Ink low-power display panel
• Supports two-point touch
• Nearly 180-degree viewing angle
• Magnetic back design
• Built-in 1150mAh large-capacity lithium battery
• HY2.0-4P peripheral interface *3
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Paper

Applications

• IoT controller
• E-book reader
• Industrial instrument display panel
• Electronic label

Specifications

Specification	Parameter
SoC	ESP32-D0WDQ6-V3@dual-core processor, main frequency 240MHz
DMIPS	600
SRAM	520KB
Flash	16MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V@500mA
Interfaces	USB Type-C x 1, HY2.0-4P x 3, TF-card (microSD) slot
E-ink Screen	Model: EPD*ED047TC1 540 x 960@4.7″ Grayscale: 16 levels Display area: 58.32 x 103.68mm Display driver IC: IT8951E
Physical Buttons	Rotary switch x 1, reset button x 1
RTC	BM8563
Antenna	2.4G 3D antenna
PIN Breakout	G25, G32, G26, G33, G18, G19
Battery	1150mAh@3.7V
Operating Temperature	0 ~ 60°C
Case Material	Plastic (PC)
Product Size	118.6 x 67.0 x 10.0mm
Product Weight	87.1g
Package Size	147.3 x 73.7 x 13.2mm
Gross Weight	103.8g
