Description

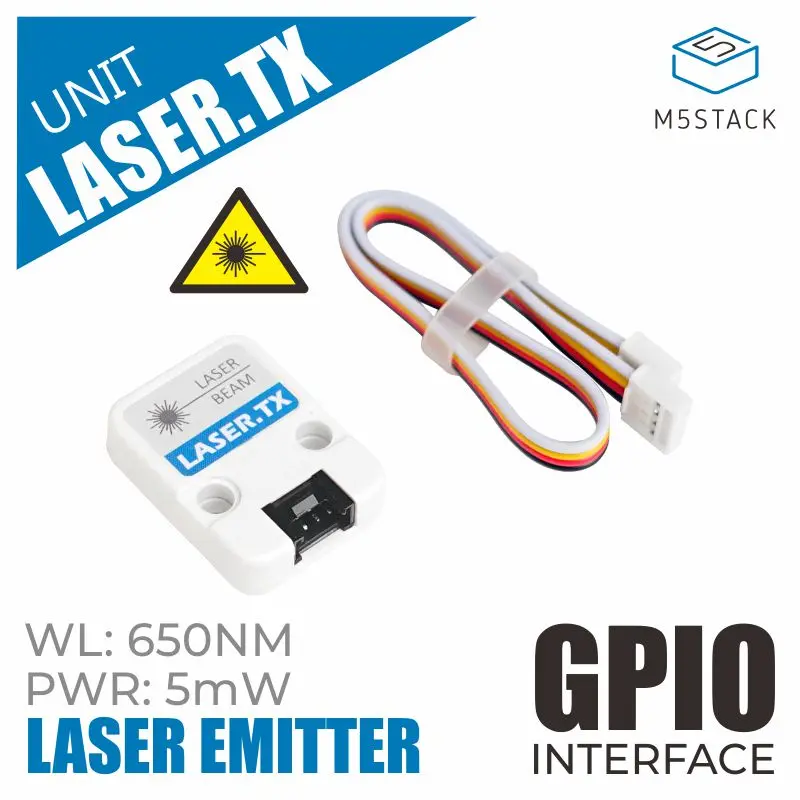

Unit Laser TX is a high-performance laser transmitter with a laser diode as its core component. This device enables wireless communication connections through the atmosphere. Apart from the beam transmission in free space, its working principle is similar to that of a fiber optic link. Although the transmitter and receiver need to meet line-of-sight conditions, laser communication devices do not require broadcasting rights or licenses, nor do they require the laying of underground cables. With its compact size, low power consumption, and no need for radio interference research, laser communication systems can be easily deployed in various locations.

Warning Lasers can cause harm to the human body. Therefore, when using this product, do not aim it at people, and prevent the laser beam from entering the eyes to avoid injury.

Features

• Laser transmission
• Pairs with LASER.RX
• 2 x LEGO-compatible holes
• Development platform: Arduino, UIFlow (Blockly, Python)

Includes

• 1 x Unit Laser TX
• 1 x HY2.0-4P Grove cable (20cm)

Applications

• Space laser communication systems

Specifications

Specification	Parameter
Operating Voltage	5V
Product Size	32.0 x 24.0 x 8.0mm
Product Weight	4.9g
Package Size	138.0 x 93.0 x 9.0mm
Gross Weight	10.0g
