Description

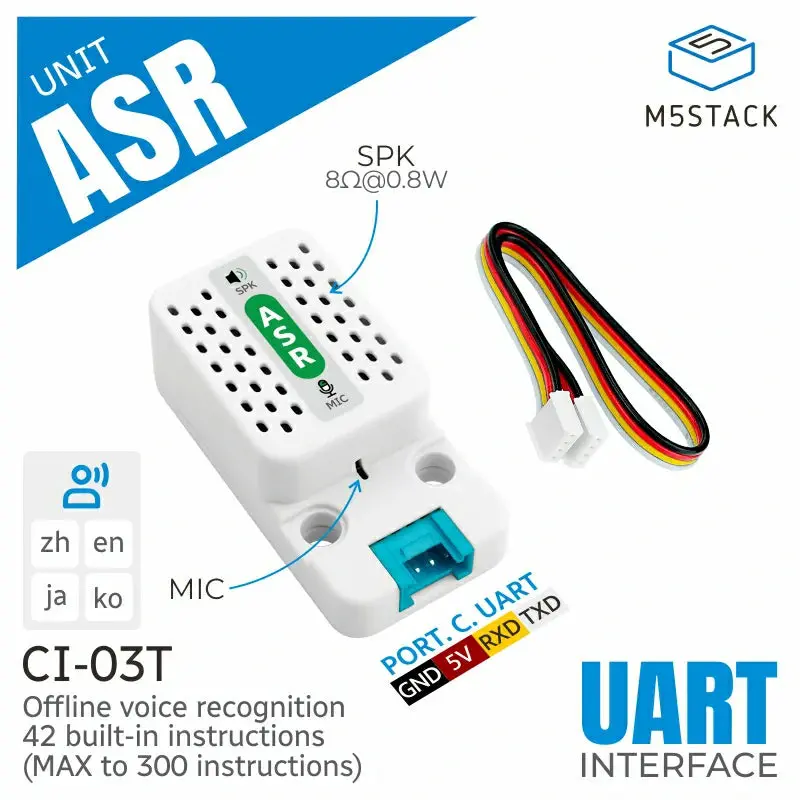

Unit ASR is an AI offline speech recognition unit, built with the CI-03T AI intelligent offline speech module. This unit features powerful speech recognition, voiceprint recognition, speech enhancement, and voice detection capabilities. It supports AEC (echo cancellation) to effectively eliminate echo and noise interference, improving speech recognition accuracy. It also supports mid-session speech interruption, allowing it to flexibly interrupt and quickly respond to new commands during recognition. The product comes preloaded with 42 English wake-up and response commands. It uses UART serial communication for data transfer and supports device wake-up via UART or keyword. The unit allows users to customize multi-language wake-up words by regenerating firmware, supporting up to 300 command words. Equipped with a microphone for clear audio capture and a built-in speaker for high-quality audio feedback, this product is used in AI assistants, smart homes, security monitoring, automotive systems, robots, smart hardware, and healthcare — making it an ideal choice for intelligent voice interaction.

Features

• CI-03T AI intelligent offline speech module
• Noise reduction processing
• 42 built-in commands preloaded
• Supports up to 300 command words
• UART serial communication
• User-customizable wake-up words
• Microphone and speaker
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE

Includes

• 1 x Unit ASR
• 1 x HY2.0-4P Grove Cable (20cm)

Applications

• AI assistants
• Smart homes
• Security monitoring
• Automotive systems
• Robots and smart hardware
• Healthcare

Specifications

Specification	Parameter
AI Module	CI-03T AI intelligent offline speech module
Command Capacity	Supports up to 300 command words; 42 built-in commands preloaded
Wake Method	UART serial communication or wake-up via voice keyword
Microphone	Analog microphone
Speaker	Cavity speaker 8Ω@0.8W (for wake-up feedback output)
Communication	UART serial communication, default Baud rate: 115200@8N1
Noise Reduction	AEC echo cancellation
Power Consumption	Standby: DC 5V / 47.73mA Working: DC 5V / 250.12mA
Operating Temp.	0 ~ 40°C
Product Size	48.0 x 24.0 x 16.0mm
Product Weight	10.7g
Package Size	138.0 x 93.0 x 17.0mm
Gross Weight	16.0g
