Joystick Add-on for M5Atom S3 Microcontroller

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }} To use with M5Stamp Fly: https://shop.m5stack.com/products/m5stamp-fly-with-m5stamps3

Description

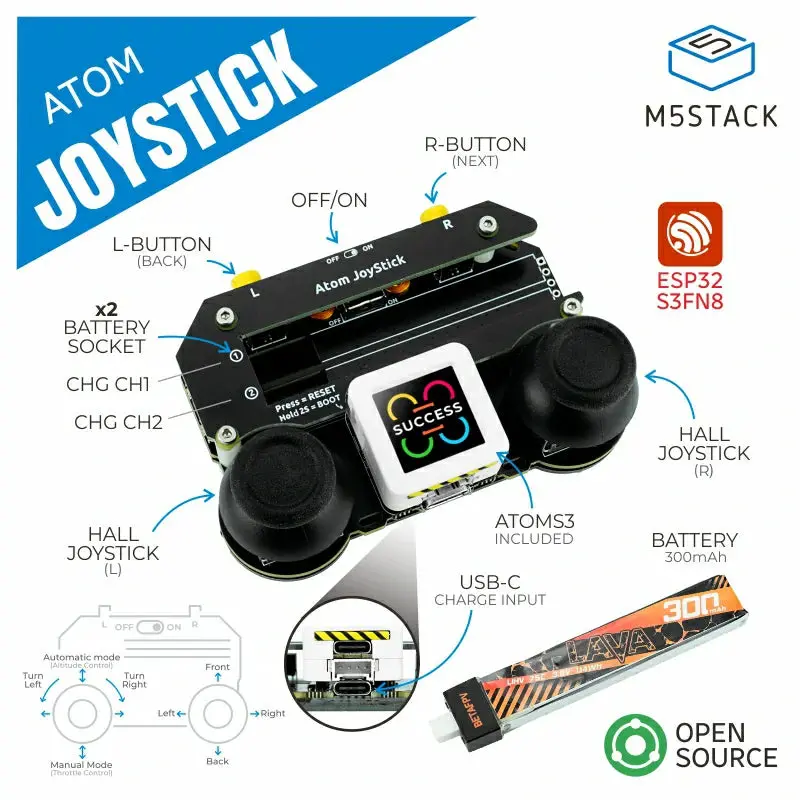

Atom JoyStick is a versatile programmable dual joystick remote controller, using AtomS3 as the main controller, with STM32 for co-processing functions on the board. It features 2 Hall sensor 5-direction joysticks and 2 function buttons, with built-in RGB LEDs for human-machine interaction and status reminders. It also includes two high-voltage power battery charging circuits. The product comes pre-loaded with the Stamp Fly remote firmware, communicating with Stamp Fly via the ESP-NOW protocol, and the firmware source code is open-source. This product is suitable for drone control, robot control, smart car projects, and various DIY projects.

Usage Reminder For first-time use of Atom JoyStick, you need to flash the flight firmware according to the following tutorial to pair with StampFly for flight. Charging Reminder When charging via the data cable, the corresponding battery has a power indicator light. Red indicates the battery is charging and not fully charged; Green indicates the battery is fully charged, reaching 4.35V. Battery Maintenance 1. Do not discharge the battery below 3V per cell under load.
2. Do not store fully charged batteries for more than 3 days. For long-term storage, keep the voltage between 3.8V and 3.9V.

Features

• STM32F030F4P6
• Equipped with AtomS3
• Compatible with Atom series controllers
• Dual joysticks, dual buttons, toggle switch
• WS2812C RGB LEDs
• Two high-voltage lithium battery charging circuits
• Battery level detection

Includes

• 1 x Atom JoyStick
• 1 x 300mAh high-voltage lithium battery

Applications

• Drone control
• Robot control
• Smart car projects
• DIY projects

Specifications

Specifications	Parameter
MCU	STM32F030F4P6
MCU Communication Address	0x59
RGB	WS2812C
Charging IC	TP4067@4.35V
Battery	300mAh
Charging Current	DC 5V/430mA
Battery charge time(Input:5V/1A)	About 55 Mins
Battery output voltage	4.35V
Button	Left/Right Button
Buzzer	Built-in Passive Buzzer@5020
operating temperature	0-40°C
Product Size	84 x 60 x 31.5mm
Packaging Size	162 x 99 x 36mm
Product Weight	63.5g
Packaging Weight	96.7g
