M5Stick T-Lite MLX90640 Thermal Imaging Development Kit

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

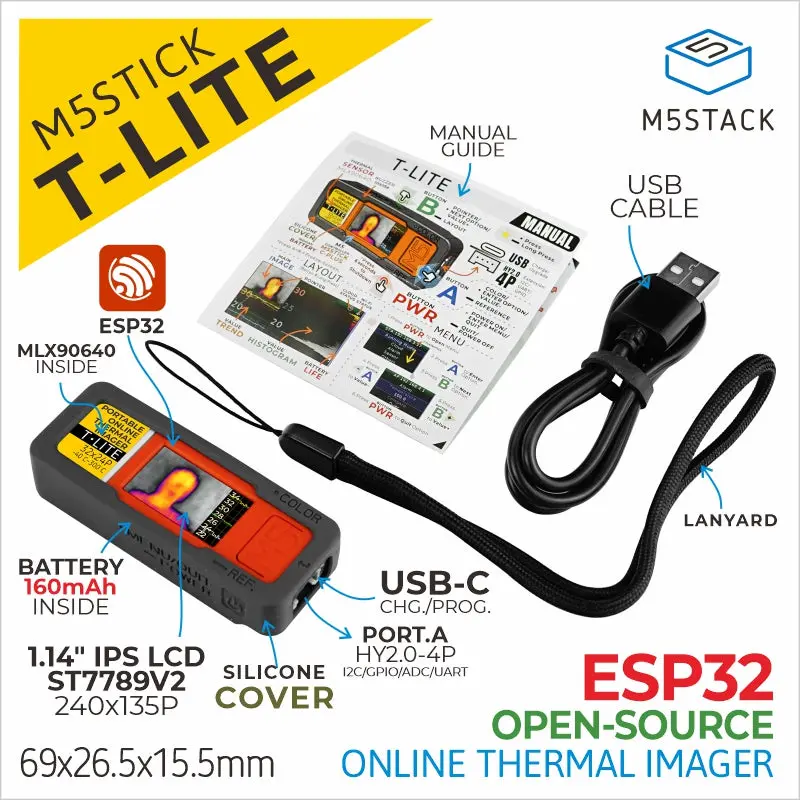

The T-Lite is an integrated thermal imaging temperature measurement device with online detection capabilities. This product is primarily composed of the M5StickC-Plus and HAT THERMAL, utilizing the MLX90640-BAA infrared imaging sensor. The main control is powered by the ESP32-PICO-D4 chip, featuring WIFI functionality, a 135 x 240 resolution TFT screen, and a built-in 160mAh battery. The name “T-Lite” represents Temperature (T) and Lite, signifying compactness and high integration. Users can set up a high-temperature warning function and view temperature images and data in real-time via cloud and local network. M5 also provides an online data API interface, allowing users to access remote images and corresponding data through EZData, facilitating engineering project applications.

Features

• Developed based on ESP32-PICO, WiFi
• User button, LCD (1.14 inch), power/reset button
• 160 mAh lithium battery
• Integrated passive buzzer
• Field of view: 110°×75°
• Temperature measurement range: -40°C ~ 300°C

Includes

• 1 × T-Lite
• 1 × StickC-Plus
• 1 × Lanyard
• 1 × USB Type-C cable (50cm)
• 1 × User manual

Applications

• Temperature detection and warning
• Circuit temperature anomaly monitoring
• High-precision non-contact temperature measurement
• Biological movement monitoring
• Visual infrared imaging

Specifications

Resources	Parameters
MCU	ESP32-PICO,240MHz dual core, 600 DMIPS, 520KB SRAM
Sensor	MLX90640
Field of View	110°×75°
Resolution	32×24
Flash Memory	4MB Flash
Power Input	5V @ 500mA
Port	Type-C
LCD screen	1.14 inch, 135 x 240 Colorful TFT LCD, ST7789v2
MIC	SPM1423
Buzzer	Passive buzzer
PMU	AXP192
Battery	160 mAh @ 3.7V
Product Size	69.0 x 26.6 x 16.4mm
Product Weight	31.0g
Package Size	110.0 x 87.0 x 25.0mm
Gross Weight	62.9g
