Description

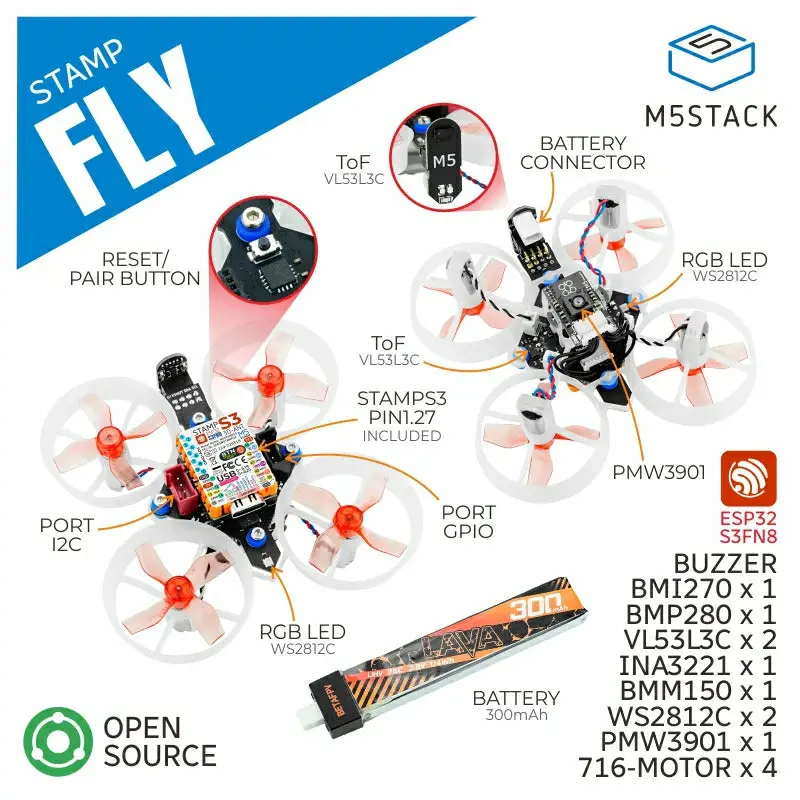

M5Stamp Fly is a programmable open-source quadcopter kit based on the Stamp-S3 as the main controller. It integrates a BMI270 6-axis gyroscope and a BMM150 3-axis magnetometer for attitude and direction detection, a BMP280 barometric pressure sensor, and dual VL53L3 distance sensors to achieve precise altitude hold and obstacle avoidance. A buzzer, reset button, and WS2812 RGB LED are used for interaction and status indication. It is equipped with a 300mAh high-voltage power battery and four high-speed coreless motors. The onboard INA3221AIRGVR monitors current and voltage in real time, and two reserved Grove interfaces allow easy expansion of additional sensors and peripherals. The product comes preloaded with factory test firmware and works with the Atom JoyStick as a remote controller. Communication is implemented via the ESP-NOW protocol, allowing users to choose between automatic or manual modes to easily achieve functions such as fixed-point flight and flips. The firmware source code is open source. This product is suitable for education, scientific research, and various UAV development projects.

Charging Notice Insert the battery into the Atom Joystick charging slot for charging. Connect the data cable to the Atom Joystick to start charging. Battery Maintenance 1. Under load, do not discharge the battery below 3V per cell.
2. Do not store a fully charged battery for more than 3 days. For long-term storage, keep the voltage between 3.8V and 3.9V.

Features

• Stamp-S3 as the main controller
• BMP280 atmospheric pressure sensing
• VL53L3 distance sensors for altitude hold and obstacle avoidance
• 6-axis attitude sensor
• 3-axis magnetometer for direction detection
• Buzzer
• 300mAh high-voltage power battery
• Current and voltage monitoring
• Grove interface expansion

Includes

• 1 x Stamp Fly
• 1 x 300mAh High-Voltage Lithium Battery
• 1 x Propeller Removal Tool
• 2 x Propellers (0.8mm Bore)

Applications

• Education
• Scientific Research
• UAV Development
• DIY Projects

Specifications

Specification	Parameter
Module Model	Stamp-S3
SoC	ESP32-S3@Xtensa LX7 Dual-Core, 240MHz
USB	USB OTG, USB Serial/JTAG
Flash	8MB
Wi-Fi	2.4 GHz Wi-Fi
Motor	716-17600kv
Distance Sensor	VL53L3C 0x29 (7-bits) Max 3 m
Barometric Pressure Sensor	BMP280 (0x76)@300-1100hPa
3-axis Magnetometer	BMM150 (0x10)
6-axis IMU	BMI270
Grove	I2C+UART
Battery	300mAh High-Voltage Lithium Battery
Battery Output Voltage	4.35V
Battery Life	Approx. 4 min
Charging Time (Input:5V@1A)	55min
Current / Voltage Monitor	INA3221AIRGVR (0x40)
Buzzer	Passive Onboard Buzzer @5020
Operating Temperature	0 ~ 40°C
Product Weight	27.7g
Product Size	81.5 x 81.5 x 31mm
Package Size	162 x 99 x 36mm
Gross Weight	70.7g
