IoT Base Board Featuring SIM7080G CAT-M Cellular Module

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

IoT Base CatM is a functional base specifically designed for IoT data transmission scenarios. It has a built-in SIM7080G communication module supporting CatM & NB-IoT dual modes, covering most CatM & NB-IoT frequency bands worldwide, meeting different regional requirements for communication rates / throughput. The base integrates rich interface resources (I2C + UART + GPIO + RS485 + battery power interface) for diverse sensor expansion, and is compatible with industrial standard protocols such as ModBus. It is highly suitable for IoT applications such as remote control, remote monitoring, and telemedicine.

Features

• SIM7080G
  • CatM & NB-IoT dual-mode wireless communication module
  • UART interface / AT command control
  • Global version / multi-band support
  • Card slot specification: MicroSIM
  • Antenna: SMA external antenna
  • Module certifications:
    • Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF
    • Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC
• Base expansion interfaces:
  • 1 x PWR485 (RS485 + DC 12V INPUT)
  • 1 x DC power interface
  • 1 x I2C
  • 1 x GPIO
  • 1 x UART
  • 1 x battery expansion interface

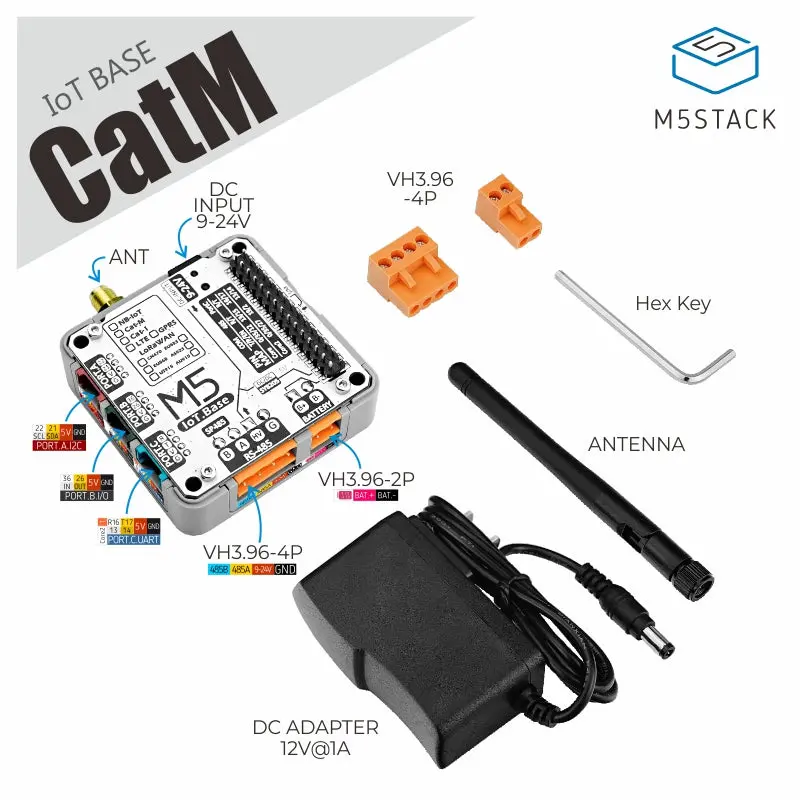

Includes

• 1 x IoT Base CatM
• 1 x SMA Antenna
• 1 x 12V DC Power Adapter (US standard)
• 1 x VH-3.96-2P Terminal
• 1 x VH-3.96-4P Terminal
• 1 x Din-moute Rail Mount Base Plate
• 2 x M3*28 Screws
• 1 x M3 Hex Key

Applications

• Remote control / data acquisition
• Cloud data applications

Specifications
