Description

Base LAN PoE v1.2 is an Ethernet control module with integrated PoE (Power Over Ethernet) functionality. It adopts the W5500 full hardware TCP/IP embedded Ethernet controller (SPI communication interface) solution, supports multiple communication protocols (TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, etc.), and integrates storage buffers for easier Ethernet packet handling.

Reserved expansion pads are available for expanding RS485/RS232/CAN communication adapter modules or adding custom designs. It supports PoE power supply and comes standard with rail mounting accessories, allowing easy deployment in industrial sites without the need for additional power cables or structural design. Combining performance with expansion flexibility, Base LAN PoE v1.2 can provide you with a more simplified embedded Ethernet connection solution.

Features

• W5500:
  • Supports 8 independent hardware sockets for simultaneous communication
  • Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
  • Integrated 10BaseT / 100Base-T Ethernet PHY
• Wired Ethernet access
  • RJ45 adaptive 10/100M port
• Power input methods:
  • Supports PoE IEEE802.3 AF / Supply voltage DC 37-57V
  • Supports input power voltage: 9-24V
  • Supports M5-Bus 5V power supply (when used with M5Core)
• Rail or magnetic mounting
• RS485/RS232/CAN communication expansion board

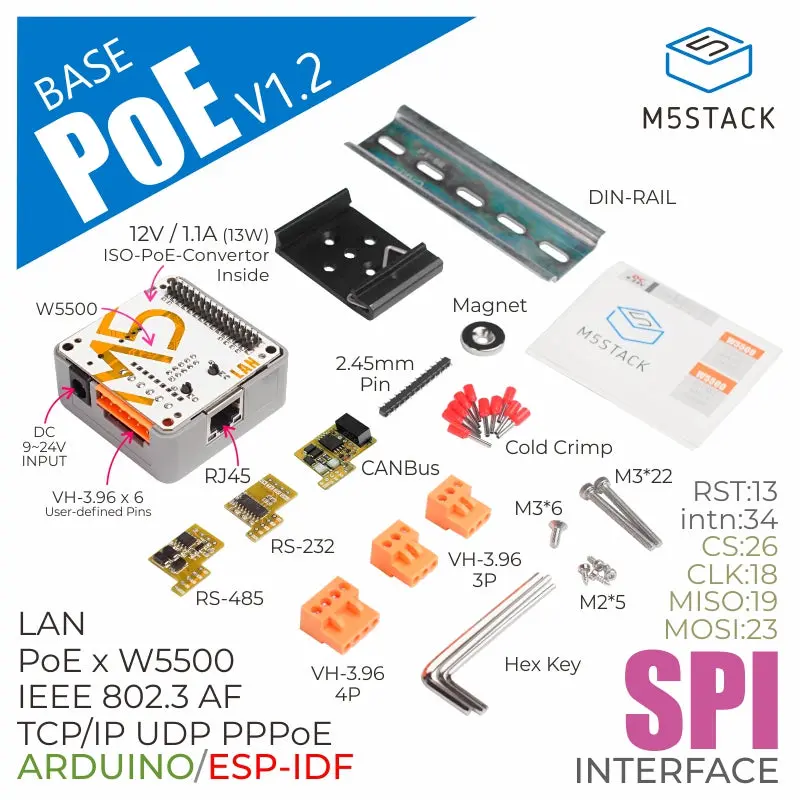

Includes

• 1 x Base LAN PoE v1.2
• 1 x RS485-to-TTL Converter Board
• 1 x RS232-to-TTL Converter Board
• 1 x CAN-to-TTL Converter Board
• 1 x HT3.96-4P Terminal
• 2 x HT3.96-3P Terminal
• 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
• 1 x Hex Key L-Shape 2.0mm (For M2 Screw)
• 1 x Hex Key L-Shape 2.5mm (For M2 Screw)
• 10 x 2mm Crimp Terminal
• 1 x Magnet (Center Hole, 15mm Diameter, 3mm Thickness)
• 1 x 35mm Silver Metal DIN Rail
• 1 x 35mm Black DIN Rail Clip
• 1 x M3 * 6mm countersunk head machine screw
• 2 x M3 * 28mm cap head machine screw
• 4 x M2 * 5mm cap head self-tapping screw
• 1 x 2.54mm-20P Straight Male Header (Overall Height 5.32mm)
• 1 x Product Sticker

Applications

• M5Core + LAN to implement transmission with controller
• Wired transmission of video data between PC and Core

Specifications

Specification	Parameter
W5500 Ethernet Ctrl	Supports TCP/IP protocol suite: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE; supports 8 independent hardware sockets; high-speed SPI (SPI MODE 0, 3); integrated 32Kbytes TX/RX Buffers
RS485-To-TTL	SP485EEN-L/TR
RS232-To-TTL	MAX232ESE
CAN-To-TTL	CA-IS3050G
Network Port	RJ45 adaptive 10/100M
Product Size	54.0 x 54.0 x 27.5mm
Product Weight	41.3g
Package Size	105.0 x 65.0 x 41.0mm
Gross Weight	146.1g
