200mAh Atomic-Style Battery Base for Compact Devices

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

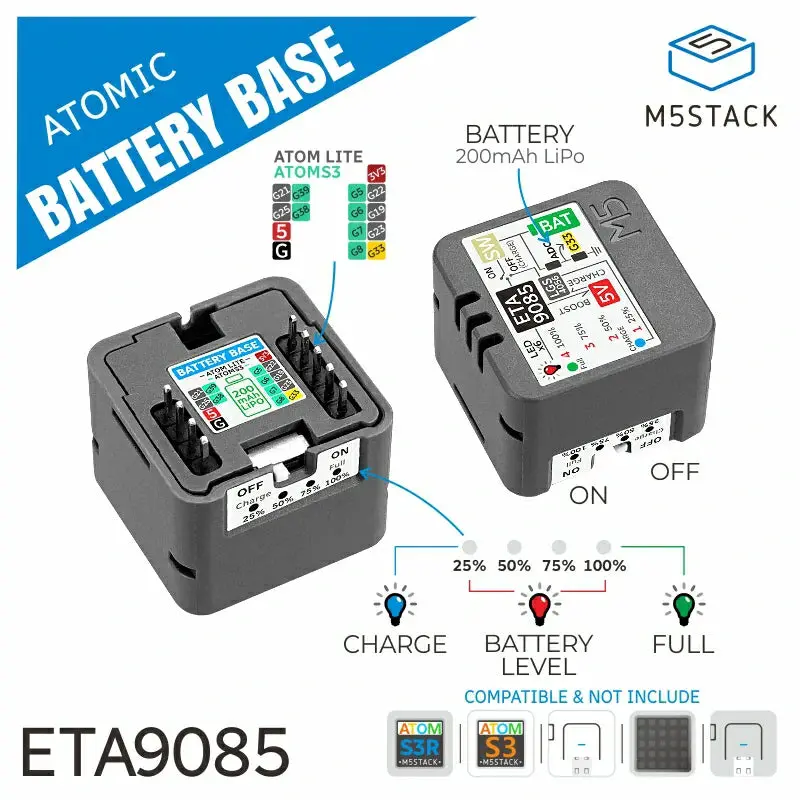

Atomic Battery Base is a portable power base designed specifically to power Atom series products. It features the ETA9085E10 high-efficiency boost converter solution and the LGS4056HDA linear charging management chip, with a built-in 200mAh rechargeable battery. It provides stable 5V boosted output and ensures safe and efficient battery charging management. The product includes a built-in battery voltage detection circuit with an LED battery level indicator to display the battery’s status in real-time. It comes with a Battery Charge and discharge dip switch that supports one-touch switching between boost and charging modes, meeting the needs of portable power applications. It is suitable for IoT devices, portable electronic products, and other applications requiring a stable power supply.

Features

• ETA9085E10 high-efficiency boost converter chip
• LGS4056HDA charging chip
• Built-in 200mAh rechargeable battery
• Battery voltage ADC detection
• LED battery level indicator
• Battery Charge and discharge dip switch

Includes

• 1 x Atomic Battery Base

Applications

• Power supply for IoT devices
• Portable electronic products
• Mobile testing platform

Specifications

Specification	Parameter
Charging/Discharging Chip	LGS4056HDA
Boost Converter Chip	ETA9085E10
Battery Level Indicator	4-level display (red LED)
Charging Indicator	Charging (blue LED), Fully charged (green LED)
Battery Capacity	DC 3.7V@200mAh
Battery Circuit Detection	Voltage divider detection circuit
Charging Current	DC 5V@223mA
Maximum Boost Output Current	DC 5V@300mA
Standby Current (Switch OFF)	DC 4.2V@2.55uA
Operating Temperature	0~40°C
Operating Current	DC 4.2V@39.55mA
Product Size	24.0 x 24.0 x 23.93mm
Product Weight	9.9g
Package Size	47.0 x 46.0 x 27.0mm
Gross Weight	15.8g

Charging Tip When the power switch is turned ON, the battery boosts to 5V to power the Atom. When the power switch is turned OFF, the battery can be charged via the Atom USB interface. The boost and charging states need to be manually switched with the switch and cannot occur simultaneously.4-level battery display (red LED) for battery status, and charging status is displayed (blue LED: charging, green LED: fully charged).

Compatibility If used with the Atomic Echo Base, all pins on the right side of the Atomic Battery Base (5P) must be cut. If used with Atom Echo, the G33 pin connection must be cut. In these combinations, the Atomic Battery Base is only used for power supply and cannot read the battery voltage status.
