Description

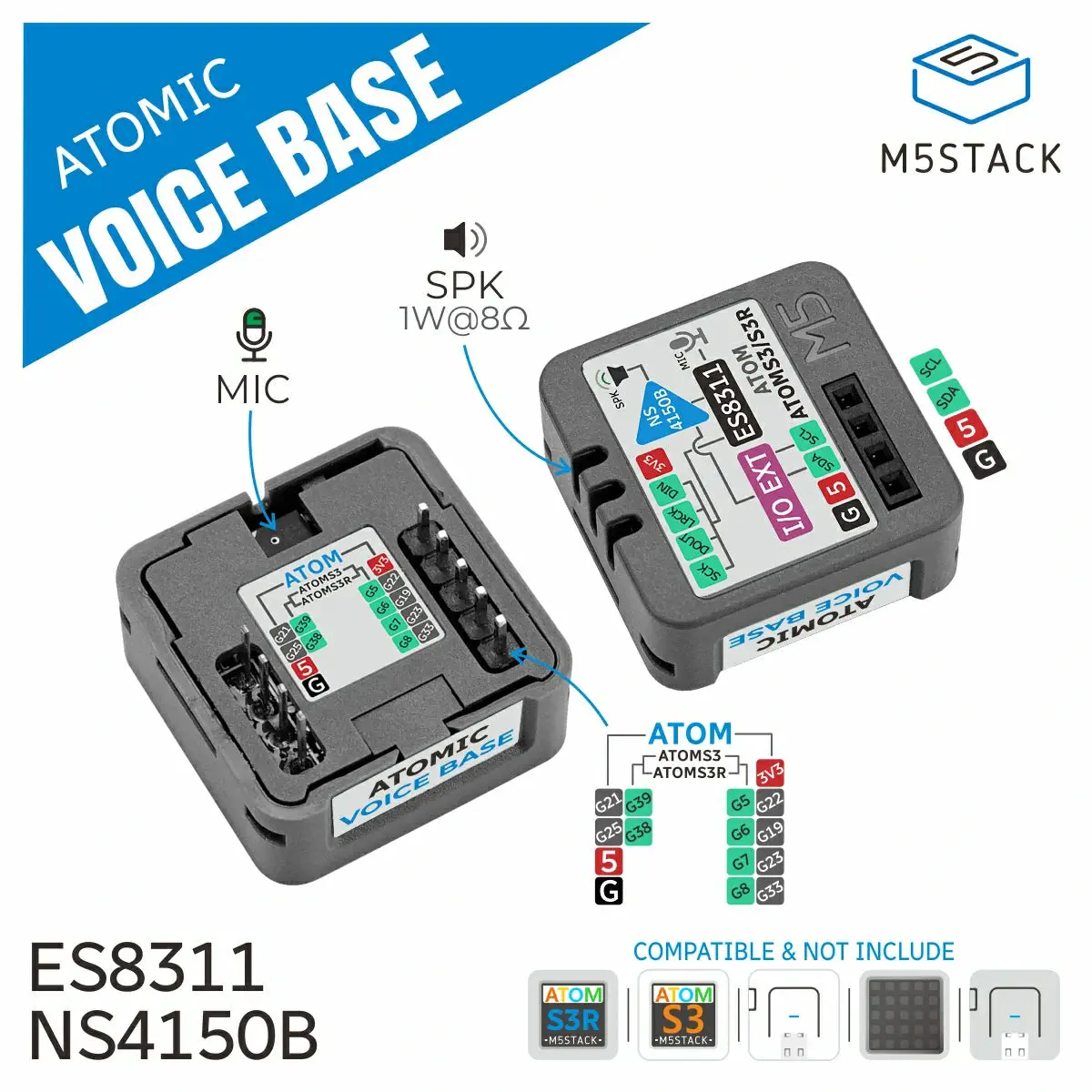

Atomic Voice Base is a voice recognition base designed specifically for the M5 Atom series hosts. It integrates the ES8311 mono audio decoder, MEMS microphone, and NS4150B power amplifier. The ES8311 provides 24-bit audio resolution and a sampling rate of 16KHz to 64KHz, supporting I2S communication and high-fidelity audio processing. The MEMS microphone with high signal-to-noise ratio and digital output is suitable for automatic voice recognition, while the built-in speaker ensures efficient audio output. The device supports full-duplex communication, allowing simultaneous sound transmission and reception, enhancing interactive functions such as voice recognition, wake-up, and recording playback, making it ideal for applications in smart homes and education.

Features

• Compatible with M5 Atom series hosts
• Voice recognition
• Mono audio codec
• MEMS microphone
• Class D amplifier
• Speaker
• Development platforms
  • UiFlow1
  • UiFlow2
  • Arduino IDE

Includes

• 1 x Atomic Voice Base

Applications

• AI voice recognition interaction systems
• Smart home control

Specifications

Specification	Parameters
Audio Codec	ES8311: 24-bit resolution, I2S protocol
MEMS Microphone	MSM381A3729H9BPC, SNR: ≥65 dB
Power Amplifier	NS4150B: Class D power amplifier
Speaker	2014 cavity speaker: 1W@8Ω
Standby Current	DC3.3V/3.36mA
Operating Current	DC3.3V/14.84mA
Operating Temperature	0 ~ 40°C
Product Size	24.0 x 24.0 x 14.1mm
Product Weight	6.5g
Package Size	85.0 x 65.5 x 15.0mm
Gross Weight	12.5g
