W5500 Ethernet LAN Module v1.2

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Base LAN v1.2 is an Ethernet controller base with a built-in W5500 full hardware TCP/IP embedded Ethernet controller (SPI communication interface), supporting multiple communication protocols (TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, etc.) and integrating storage buffers for easier Ethernet packet handling. Reserved expansion pads inside can be used to add RS485/RS232 communication adapter modules or custom designs. It comes standard with mounting rail accessories, combining performance and expansion flexibility to provide a more streamlined embedded Ethernet connection.

Features

• Meets wired network access requirements in real production environments.
• Specifically designed for industrial applications:
  • Metal slide rail for easy installation and mounting
  • Equipped with HT3.96 terminal for electrical connection
  • Supports input power voltage: 9-24V
• Comes standard with TTL-RS485 + TTL-RS232 adapter boards to suit different communication interfaces.

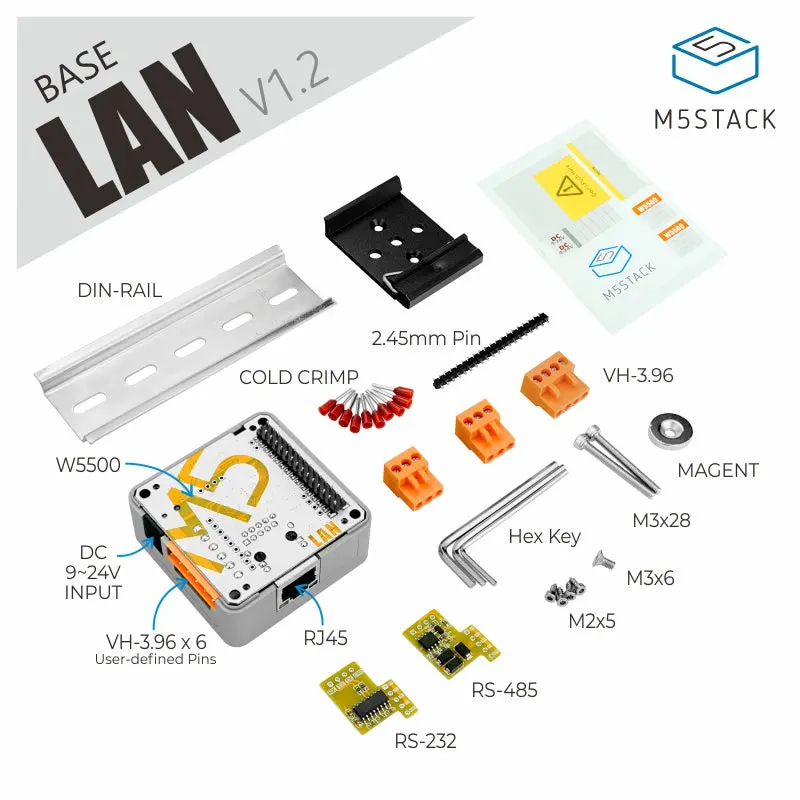

Includes

• 1 x Base LAN v1.2
• 1 x RS485-to-TTL Converter Board
• 1 x RS232-to-TTL Converter Board
• 1 x HT3.96-4P Terminal
• 2 x HT3.96-3P Terminal
• 1 x Hex Key L-Shape 1.5mm
• 1 x Hex Key L-Shape 2.0mm
• 1 x Hex Key L-Shape 2.5mm
• 10 x 2mm Crimp Terminal
• 1 x Magnet (Center Hole, 15mm Diameter, 3mm Thickness)
• 1 x 35mm Silver Metal DIN Rail
• 1 x 35mm Black DIN Rail Clip
• 1 x M3 * 6mm countersunk head machine screw
• 2 x M3 * 28mm cap head machine screw
• 4 x M2 * 5mm cap head self-tapping screw
• 1 x 2.54mm-20P Straight Male Header (Overall Height 5.32mm)
• 1 x Product Sticker

Applications

• M5Core + LAN for transmission with controller
• PC to Core wired video data transmission

Specifications
