W5500 Ethernet LAN Module Featuring Integrated Power over Ethernet (PoE) Support

Description

Product Status Notice This product is EOL (End of Life). Please order the new version: Base LAN PoE v1.2 /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Base LAN PoE is an Ethernet controller base with PoE power supply support, enabling devices to easily connect to the internet. It supports RS485/RS232 communication and can be used as an Ethernet-to-serial server. Built with the W5500 fully hardware-based embedded Ethernet controller, the W5500 integrates a TCP/IP protocol stack, features 8 independent hardware sockets, a 10/100M Ethernet data link layer (MAC) and physical layer (PHY), offering a simpler internet connection solution for embedded systems. It supports PoE (Power over Ethernet) technology, allowing the base to be powered directly via a PoE hub/switch through the built-in PoE module without requiring an independent power supply. For quick deployment in industrial applications, the kit includes a metal rail and magnets for secure installation, and is equipped with HT3.96 terminals for RS485/RS232 electrical connections, meeting wired network access needs in production environments. The 6 pins of the HT3.96 connector are left floating by default, and you can choose to connect the RS232 or RS485 level conversion board as needed.

Features

• Supports PoE IEEE802.3 AF
• Wired Ethernet access
• Supports RS485/RS232 communication
• Supports 8 independent hardware sockets for concurrent communication
• Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
• Integrated 10BaseT / 100Base-T Ethernet PHY
• Rail-mount or magnetic fixation

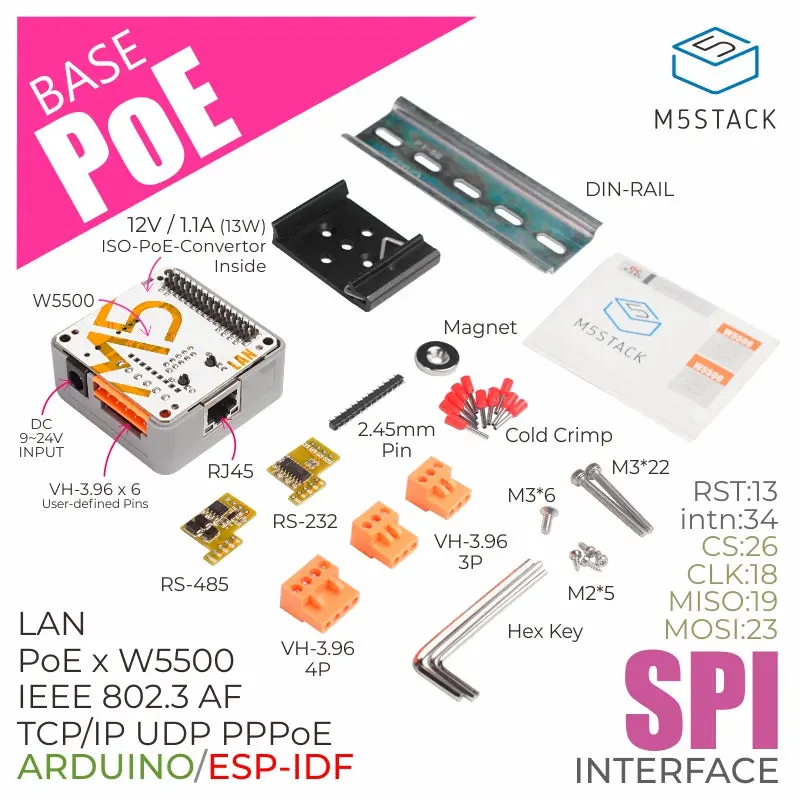

Includes

• 1 x Base LAN PoE
• 1 x RS485-to-TTL Converter Board
• 1 x RS232-to-TTL Converter Board
• 1 x HT3.96-4P Terminal
• 2 x HT3.96-3P Terminal
• 1 x Hex Key L-Shape 1.5mm
• 1 x Hex Key L-Shape 2.0mm
• 1 x Hex Key L-Shape 2.5mm
• 10 x 2mm Crimp Terminal
• 1 x Magnet (Center Hole, 15mm Diameter, 3mm Thickness)
• 1 x 35mm Silver Metal DIN Rail
• 1 x 35mm Black DIN Rail Clip
• 1 x M3 * 6mm countersunk head machine screw
• 2 x M3 * 28mm cap head machine screw
• 4 x M2 * 5mm cap head self-tapping screw
• 1 x 2.54mm-20P Straight Male Header (Overall Height 5.32mm)
• 1 x Product Sticker

Applications

• Ethernet to RS485/232 serial port
• Modbus TCP/IP remote control
• Wired network access

Specifications

Specification	Parameter
Ethernet Chip	W5500
Supported Protocols	TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
RS485 Chip	SP3485EE
RS232 Chip	MAX232
PoE Power Method	Idle pin power supply (10M/100M Ethernet), J4&J5 (VC-), J7&J8 (VC+)
PoE Standard	IEEE802.3 AF
DC Input Voltage	9V~24V
Product Weight	32g
Gross Weight	132g
Product Size	54 x 54 x 28mm
Package Size	105 x 65 x 40mm
