ESP32-H2 Multi-Protocol Gateway Module for Thread and Zigbee Networks

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

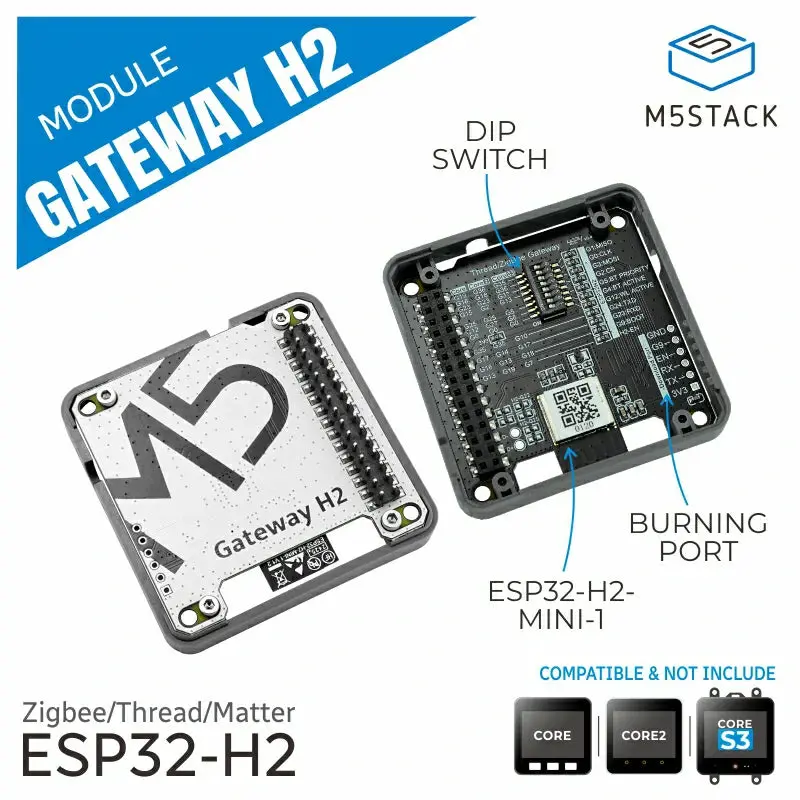

The Module Gateway H2 is a stackable gateway development module based on the ESP32-H2-MINI-1 module, specifically designed for the M5 series hosts. It features a low-power, RISC-V-based 32-bit single-core MCU and supports Zigbee, Thread, and the Thread-based Matter interconnect protocol. The module integrates IEEE 802.15.4 wireless communication capabilities, enabling it to work with M5 hosts to build Matter over Thread end devices, facilitating interoperability across multiple ecosystems.

Additionally, the Module Gateway H2 includes a hardware encryption engine, meeting the data security requirements of high-demand IoT applications. The module is equipped with a DIP switch, allowing users to flexibly switch communication interface modes, and it also provides a standard program download interface for easy firmware burning and debugging. It supports multi-module stacking expansion, making it suitable for applications such as smart homes, environmental monitoring, sensor networks, and low-power wireless communication nodes, helping developers quickly prototype and develop products.

Features

• Support for wireless communication protocols such as Zigbee, Thread, and Matter
• Integrated IEEE 802.15.4 technology
• DIP switch configuration
• Hardware encryption support
• Stackable expansion
• Low power consumption
• Development platforms:
  • Arduino IDE
  • ESP-IDF

Includes

• 1 x Module Gateway H2

Applications

• Smart home
• Industrial automation
• Healthcare
• Consumer electronics
• Smart agriculture

Specifications

Specification	Parameters
SoC	Built-in ESP32-H2 chip, RISC-V 32-bit single-core processor, up to 96 MHz @IEEE 802.15.4
Flash	2MB
Antenna	Onboard PCB antenna
Supported Protocols	IEEE 802.15.4 (including Zigbee 3.0, Thread 1.3, Matter)
Power Consumption	Standby current: DC3.3V/8.55mA Operating current: Thread networking: DC3.3V/18.35mA
DIP Switch	8-bit DIP switch for interface switching (UART/SPI) and wireless function control
Operating Temperature	0 ~ 40°C
Product Size	54.0 x 54.0 x 13.1mm
Product Weight	12.8g
Package Size	132.0 x 95.0 x 16.0mm
Gross Weight	39.0g
