Description

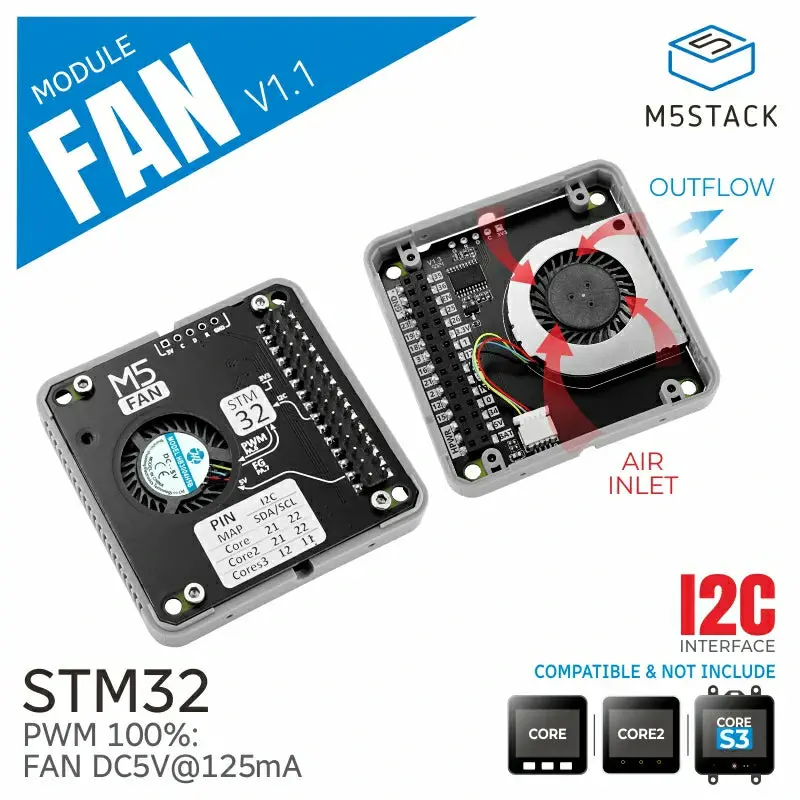

Module Fan v1.1 is a cooling module designed for M5Stack stacked systems, featuring a built-in STM32 microcontroller. It uses the I2C protocol for control, supporting fan speed reading and control, as well as stall protection. This module is primarily used for cooling in stacked systems, effectively improving the thermal performance of the system. It is suitable for embedded devices, smart hardware, and other applications requiring thermal management.

Features

• M5Stack Stacked System
• STM32 Microcontroller
• I2C Protocol Control
• Fan Speed Reading and Control
• Stall Protection Feature
• Development Platforms
  • UIFlow 1.0
  • UIFlow 2.0
  • Arduino IDE

Includes

• 1 x Module Fan v1.1

Applications

• Cooling for M5Stack development platforms

Specifications

Specification	Parameter
MCU	STM32F030F4P6
Communication Method	I2C (0x18)
Operating Voltage	5V
Noise Test (ambient noise 40.8dB)	PWM 20%:48.6dB PWM 60%:64.5dB PWM 100%:70.6dB
Operating Power Consumption	PWM 20%:DC-5V@13.52mA PWM 60%:DC-5V@56.19mA PWM 100%:DC-5V@125.14mA
Standby Power Consumption	DC-5V@503.49uA
Fan Speed	11500RPM ±10%
Maximum Airflow	1.23 CFM
Fan Speed Control	Supports fan speed reading and PWM control
Stall Protection	Supports stall protection feature
Operating Temperature	0-40°C
Product Size	54.0 x 54.0 x 13.1mm
Product Weight	14.9g
Package Size	95 x 184 x 15.7mm
Package Weight	27.9g
