AT6668 GPS Module Version 2.0 Featuring External Antenna Support

Description

Product Status Notice This product is EOL (End of Life). Please order the new version: Module GPS v2.1 /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Module GPS v2.0 is a high-performance GNSS global positioning module, integrating the high-performance AT6668 chip, providing accurate and reliable satellite positioning services. The module supports multi-frequency and multi-mode GNSS signal reception, compatible with multiple satellite navigation systems, including GPS, BD2, BD3, GLONASS, GALILEO, and QZSS, enabling high-precision, multi-system joint positioning or single-system independent positioning, with excellent anti-interference capabilities. In areas with weak signals, it can quickly obtain higher-precision location information.

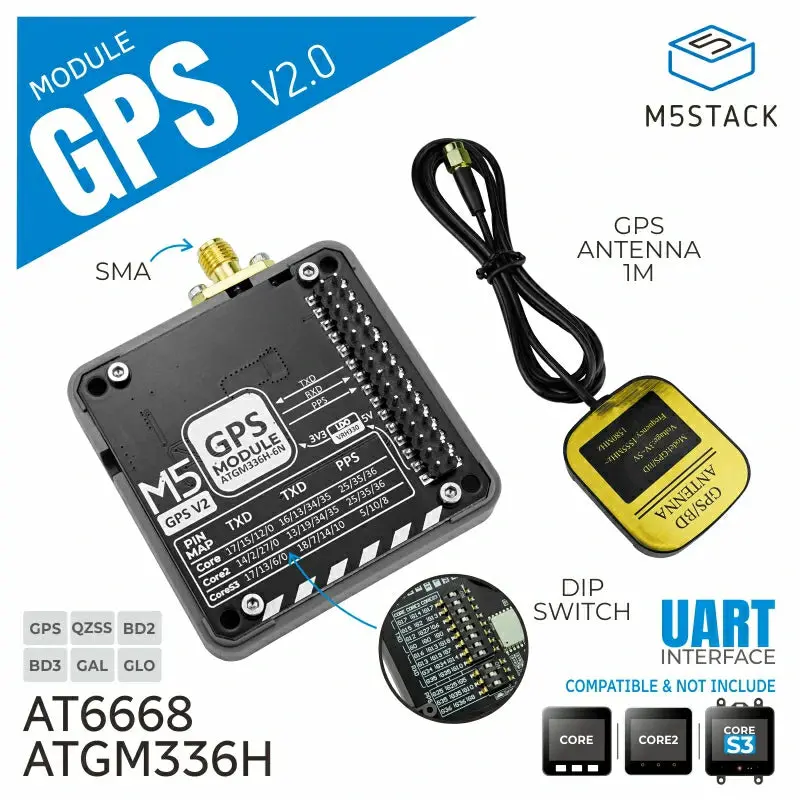

The module comes with a default SMA antenna. Additionally, the module is equipped with a DIP switch, allowing users to flexibly switch TX/RX communication pins and perform precise timing settings through PPS signal output. The module supports multiple stacking uses, providing more customization possibilities and flexibility, suitable for high-precision positioning applications such as vehicle positioning and navigation, IoT positioning devices, remote monitoring, smart cities, home and industrial automation.

Features

• Supports multiple satellite navigation systems (GPS/QZSS/BD2/BD3/GAL/GLO)
• Multi-frequency and multi-system reception
• Multi-channel
• Low power consumption
• Precise timing support
• Module stacking support
• Development platforms:
  • UiFlow1
  • UiFlow2
  • Arduino IDE

Includes

• 1 x Module GPS v2.0
• 1 x External active GPS/BD antenna (length: 1 m)

Applications

• Vehicle positioning and navigation
• IoT positioning devices
• Industrial automation and robot positioning
• High-precision surveying and geographic information systems

Specifications

Specification	Parameters
SoC	AT6668
Supported Satellite Systems	GPS/QZSS/BD2/BD3/GAL/GLO Frequencies: BDS: B1I+B1C GPS/QZSS/SBAS: L1 GALILEO: E1 GLONASS: R1
Channels	50 channels
Positioning Accuracy	<1.5m (CEP50)
Positioning Update Rate	Up to 10Hz
Protocol	NMEA0183 4.1
Sensitivity	Tracking: -162dBm, Acquisition: -160dBm, Cold Start: -148dBm
Start Time	Cold Start: 23 seconds, Hot Start: 1 second
Power Consumption	Standby Current: DC 5V/42.78uA, Operating Current: DC 5V/41.96mA
Product Size	54.0 x 54.0 x 13.1mm
Product Weight	15.3g
Package Size	126.0 x 68.0 x 22.0mm
Package Weight	78.0g
