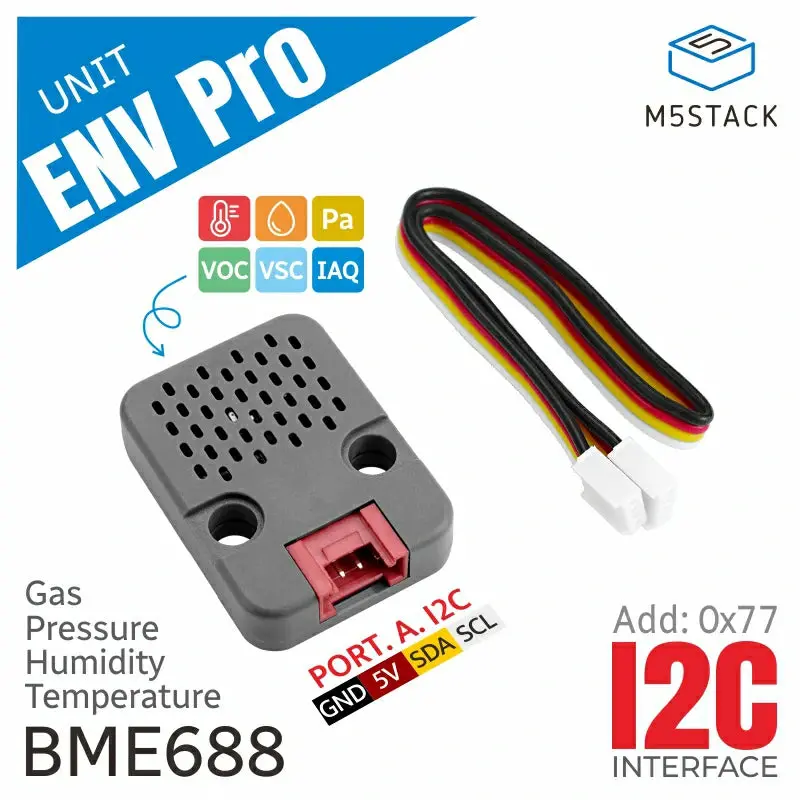

Env Pro Unit Featuring BME688 Sensor for Temperature, Humidity, Pressure & Air Quality Monitoring

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

The Unit ENV-Pro sensor is a highly integrated environmental detection unit, equipped with the BME688 sensor solution. It supports the measurement of various environmental parameters such as VOCs (volatile organic compounds), CO₂ equivalent, indoor air quality (IAQ), temperature, humidity, and atmospheric pressure. The sensor uses an I2C communication interface (0x77), making it suitable for applications like weather stations, indoor environment monitoring, and air quality detection.

Features

• Highly integrated sensor
• I2C communication
• High precision and low power consumption
• Real-time monitoring
• Multi-platform programming with Arduino and UIFlow

Includes

• 1 x Unit ENV-Pro
• 1 x HY2.0-4P Grove connection cable (20cm)

Applications

• Indoor and outdoor air quality measurement
• Detection of leaks or fires
• Agricultural temperature and humidity detection

Specifications

Specification	Parameters
Key parameters of gas sensor	Standard scan speed: 10.8 s
Key parameters of humidity sensor	Response time (τ 0-63%): 8 seconds Accuracy: ±3%R.H Measurement range: 0 ~ 100% R.H.
Key parameters of atmospheric pressure sensor	Root mean square noise: 0.12 Pa, approximately equal to 1.7 cm altitude Temperature coefficient offset: ±1.3 Pa/K, approximately equal to ±10.9 cm altitude (for 1°C temperature change) Measurement range: 300 ~ 1100 hPa
Key parameters of temperature sensor	Absolute accuracy: ±0.5 °C (0 ~ 65°C) Measurement range: -40 ~ +85 °C
Communication Interface	I2C @0x77
Product Size	32.0 x 24.0 x 8.0mm
Product Weight	3.9g
Package Size	138.0 x 93.0 x 9.0mm
Gross Weight	9.2g

Product Comparison

Product Compare	Unit ENV	Unit ENV-II	Unit ENV-III	Unit ENV-IV	Unit ENV-Pro
Sensor	DHT12+BMP280	SHT30+BMP280	SHT30+QMP6988	SHT40+BMP280	BME688
Data Type Detected	Temperature+Pressure+Humidity	Temperature+Pressure+Humidity	Temperature+Pressure+Humidity	Temperature+Pressure+Humidity	Temperature+Pressure+Humidity+Gas
Interface	I2C	I2C	I2C	I2C	I2C
I2C Address	DHT12:0x5C BMP280:0x76	SHT30:0x44 BMP280:0x76	SHT30:0x44 QMP6988:0x70	SHT40:0x44 BMP280:0x76	BME688:0x77
Accuracy	Temp: ±0.5℃ Humidity: ±5%RH Pressure: ±0.12 hPa	Temp: ±0.2℃ Humidity: ±2%RH Pressure: ±0.12 hPa	Temp: ±0.2℃ Humidity: ±2%RH Pressure: ±0.12 hPa	Temp: ±0.2℃ Humidity: ±1.8%RH Pressure: ±0.12 hPa	Temp: ±0.5℃ Humidity: ±3%RH Pressure: ±0.12 hPa
Range	Temp: -20~60℃ Humidity: 20~95%RH Pressure: 300~1100 hPa	Temp: -40~125℃ Humidity: 0~100%RH Pressure: 300~1100 hPa	Temp: -40~125℃ Humidity: 0~100%RH Pressure: 300~1100 hPa	Temp: -40~125℃ Humidity: 0~100%RH Pressure: 300~1100 hPa	Scan speed: 10.8 seconds
