Description

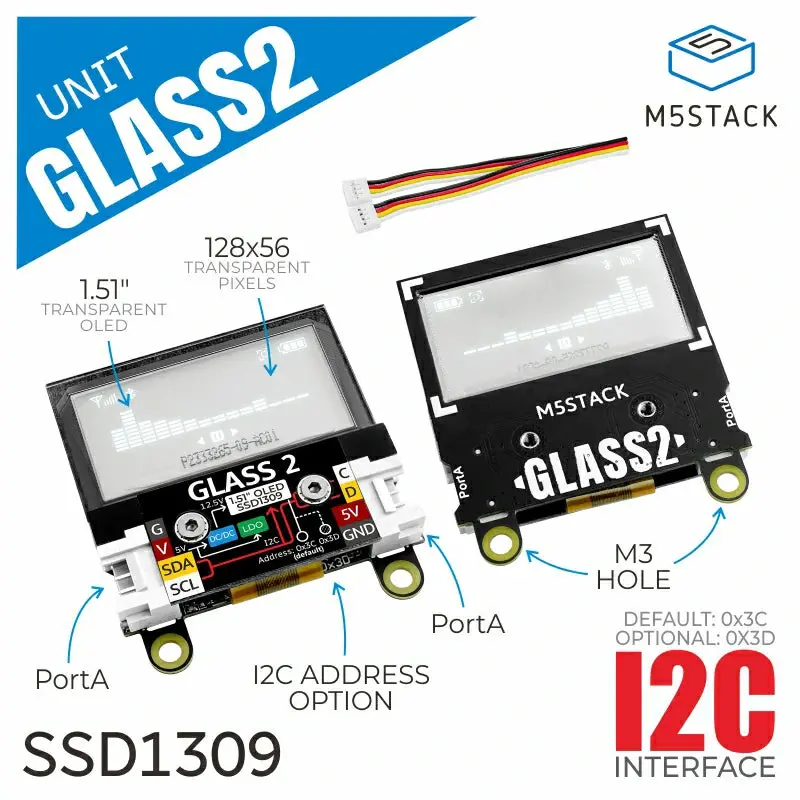

Unit Glass2 is a 1.51-inch transparent OLED display expansion unit. It uses the SSD1309 driver and supports I2C communication (default address is 0x3C, which can be changed to 0x3D via the reserved solder pads). The screen offers excellent brightness and contrast, performing well under various lighting conditions. It is suitable for information display, status indication, or user interface integration, making it ideal for embedding into smart home products or control devices to enable user interaction.

Features

• 128×64 total pixels
• Display area: 35.05 x 18 mm
• Glass dimensions: 42.04 x 27.22 mm
• 1-bit color depth
• I2C communication (default address 0x3C, configurable to 0x3D)
• Supported programming platforms: Arduino, UiFlow

Includes

• 1 x Unit Glass2
• 1 x HY2.0-4P Grove cable (20 cm)

Applications

• Smart home products
• Control devices
• Display panels

Specifications

Specification	Parameter
Display	1.51-inch transparent OLED screen
Resolution	128 x 64
Display Color	Blue
Display Area	35.05 x 18 mm
Panel Size	42.04 x 27.22 x 1.25 mm
Viewing Angle	Full viewing angle
Operating Temp.	0 ~ 40°C
Logic Voltage	3.3V
Communication Interface	Default I2C Communication @0x3C, can be switched to 0x3D via solder pads
Product Size	53.0 x 42.0 x 6.0 mm
Product Weight	8.5 g
Package Size	138.0 x 93.0 x 7.0 mm
Gross Weight	14.3 g

Product Comparison

Product Compare	Unit Glass2	Unit Glass
Chip Solution	STM32 + SSD1309	SSD1309
Hardware Interface	2 x HY2.0-4P Grove ports, no buttons or buzzer	1 x HY2.0-4P Grove port, 2 buttons, 1 buzzer
I2C Address	Fixed at 0x3D	0x3C / 0x3D (configurable via solder pads)
