Bala2 Fire Autonomous Balancing Robot Building Kit

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

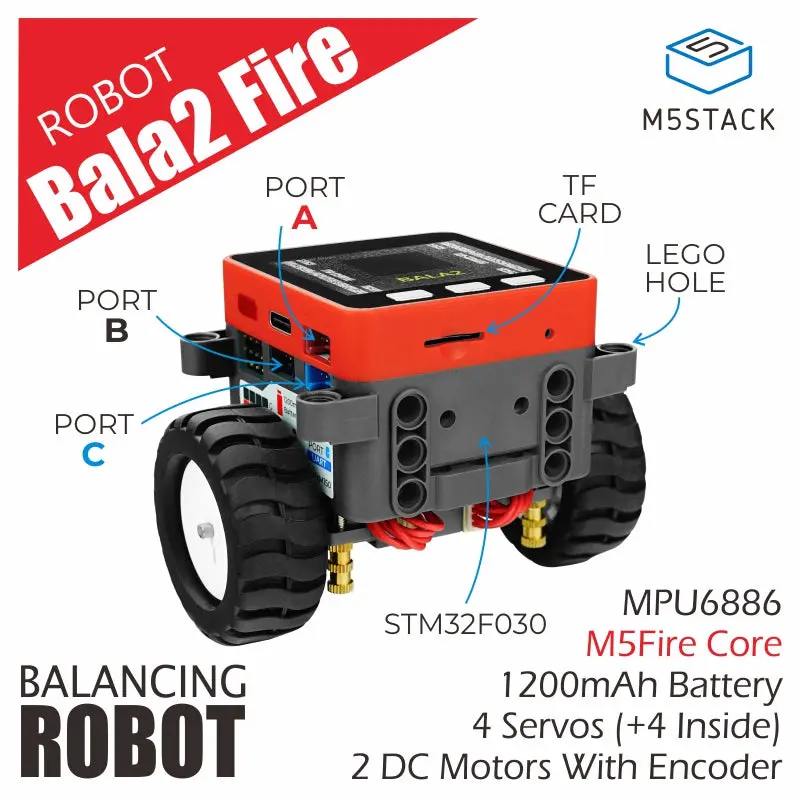

Bala2-Fire is a balancing car application. This product is a self-balancing robot composed of M5Stack Fire and the BALA2 motor base. The base uses STM32F030C8T6 as the main controller and is powered by dual N20 encoder geared motors. It has a built-in 1200mAh battery. The name “BALA” comes from the abbreviation of the word “Balance”, and this is currently the second-generation product.

The BALA2Fire base includes rich interfaces. In addition to the standard PortB and PortC, it also supports 8 servo channels, of which 4 channels can be connected directly, and the remaining 4 channels need to be extended from inside the base. You can control it to move freely through programming, or develop remote control functions via WiFi. Even if you have never worked with balancing car programs before, you can quickly complete programming and control it through UiFlow.

By default, the balancing car application is pre-installed at the factory. During operation, it uses a PID closed-loop algorithm to maintain vertical balance, and uses accelerometer and gyroscope attitude data to correct its direction and position.

Features

• 6-axis attitude sensor
• Dual-wheel drive with PID balance control
• Grove expansion interfaces (PORTB / PORTC)
• 8-channel servo drive, 4 external and 4 internal
• WiFi supported, programmable
• Built-in speaker
• microSD expansion supported
• LEGO compatible
• I2C communication: 0x3A
• Development Platform
  • MicroPython
  • UiFlow
  • Arduino

Includes

• 1 x Fire
• 1 x Bala2 Base
• 2 x HY2.0-4P Grove Cable (20cm)
• 4 x Hub Connectors
• 2 x LEGO Arms
• 1 x Hex Key L-Shape
• 1 x USB Type-C Cable (1m)

Applications

• Balancing car

Specifications

Specification	Parameter
Base MCU	STM32F030C8T6
ESP32	240MHz Dual Core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash	16MB Flash
PSRAM	8MB
LCD	2-inch, 320×240 Color TFT LCD, ILI9342C
Speaker	1W -0928
MEMS	MPU6886
Motor	Driver Model: HR8833 Gear Ratio: 1:30 No-load Speed: 530rpm Rated Speed: 300rpm Rated Current: ≤0.17A
Interface	GROVE I2C x 1 / UART x 1 / GPIO x 1 / SERVO x 4 (+4 Extendable Channel)
Battery	1200mAh
Case Material	Plastic
Product Size	54.0 x 54.0 x 65.0mm
Product Weight	161.0g
Package Size	170.0 x 110.0 x 66.0mm
Gross Weight	293.8g
