Waterproof SK6812 RGB Digital LED Strip – Fully Addressable, Weather-Resistant Flexible Lighting

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Unit RGB LED Strip is a programmable light strip using SK6812 LEDs. The strip supports digital addressing, meaning each individual LED on the strip can be controlled independently for its color and brightness. Single bus programming allows strip expansion.
The outer layer of the strip adopts epoxy waterproof processing, and the transparent protective silicone cover supports IP65-level waterproof protection, adapting to various usage environments. The product uses flexible FPC (soft strip board) / PCB (hard strip board) as a substrate for welding LEDs, with 5050 spec RGB LEDs, and the back is equipped with strong 3M double-sided adhesive for easy attachment. Operating voltage is 5V DC, and various lighting effects can be achieved through controller programming.

Features

• Product category: RGB LED Strip
• LED model: xdx-5050RGB-60-60
• IC model: SK6812
• Operating voltage: 5V
• Power: ±18W / meter
• Board width: 10mm
• Display grayscale level: 256
• Number of LEDs: 60 LEDs / meter
• Number of ICs: 60 ICs / meter (ICs located on FPC board), 60 pixel points / meter
• Operating temperature: -40°C ~ 80°C
• Service life: 30Kh
• Board base color: White / Black
• Light color: Full-color / any color and effect achievable via controller
• Data transfer rate: 800K/S
• Waterproof rating: Epoxy waterproof – IP65
• Available lengths: 0.5m / 30, 1m / 60, 2m / 120, 5m / 300
• Development platform: Arduino, UiFlow (Blockly, Python)
• Extendable length

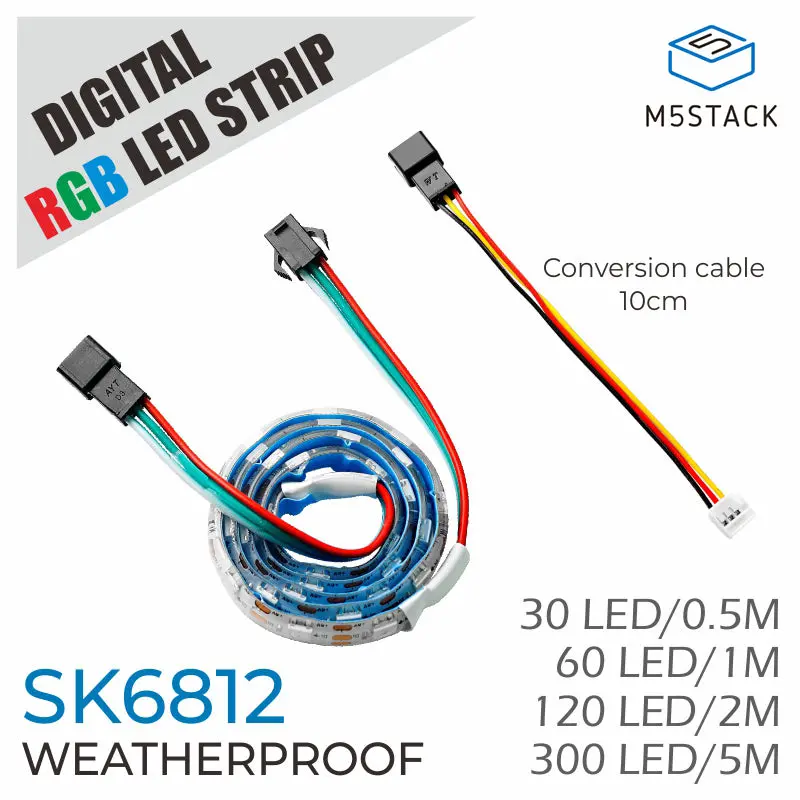

Includes

• 1 x Unit RGB LED Strip
  • SKU: A093 (1pcs, 30 LED / 0.5m)
  • SKU: A093-B (1pcs, 60 LED / 1m)
  • SKU: A093-C (1pcs, 120 LED / 2m)
  • SKU: A093-D (1pcs, 300 LED / 5m)
• 1 x HY2.0-4P Grove Conversion Cable (10cm)

Applications

• Lighting decoration

Specifications

Power Consumption As the number of connected strips increases, the accompanying power consumption will also rise. Therefore, when using RGB LED strips with a large number of LEDs, it is recommended to provide additional power supply.

Learn and Documents

→ DOCUMENTS
