Description

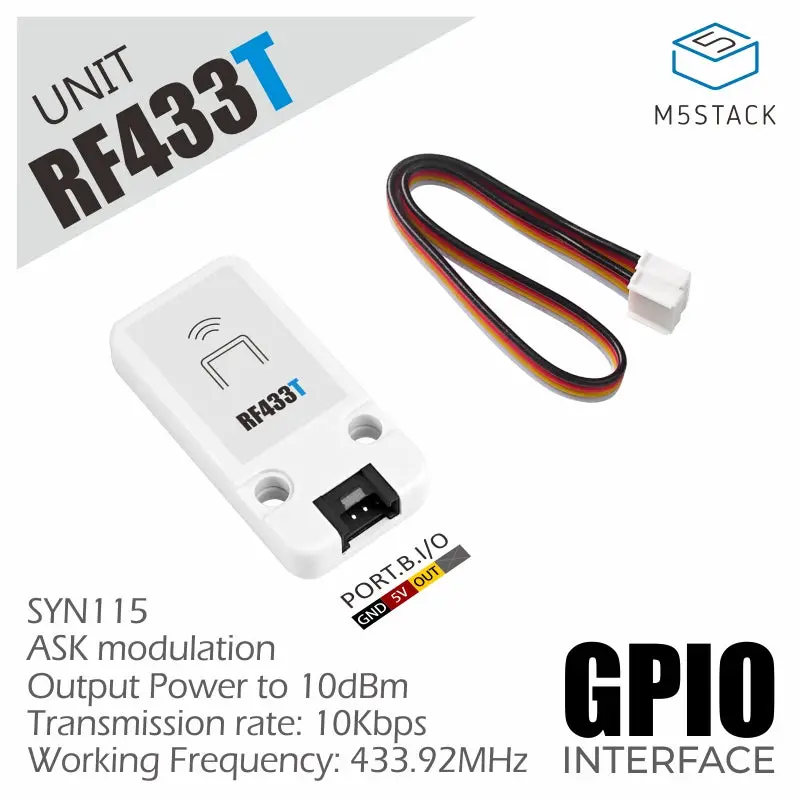

Unit RF433T is a wireless radio frequency (RF) transmitter, adopting the SYN115 RF transmitter IC, operating at the commonly used 433.92MHz frequency for wireless controllers (with ASK modulation). It features a built-in PCB antenna, with a stable signal transmission distance up to 10M and an output power of 10dBm. The compact and delicate housing design allows integration into various RF remote control applications. It is suitable for security alarms, wireless automatic meter reading, home and industrial automation, remote control, wireless data transmission, and other system fields.
Features
- Operating frequency: 433.92MHz
- Data transfer rate: 10kbps (ASK modulation)
- Output power: 10dBm
- PCB antenna
Includes
- 1 x Unit RF433T
- 1 x HY2.0-4P Grove Cable (20cm)
Applications
- Building automation
- Security alarm
- Home and industrial automation
- Remote control
- Wireless data transmission and other system fields
Specifications
| Specification | Parameter |
|---|---|
| Transmitter IC | SYN115 |
| Operating Current | 12mA |
| Stable Range | 10M |
| Output Power | 10dBm |
| Antenna Type | PCB antenna |
| Product Size | 48.0 x 24.0 x 8.0mm |
| Product Weight | 6.6g |
| Package Size | 138.0 x 93.0 x 9.0mm |
| Gross Weight | 11.8g |
