Description

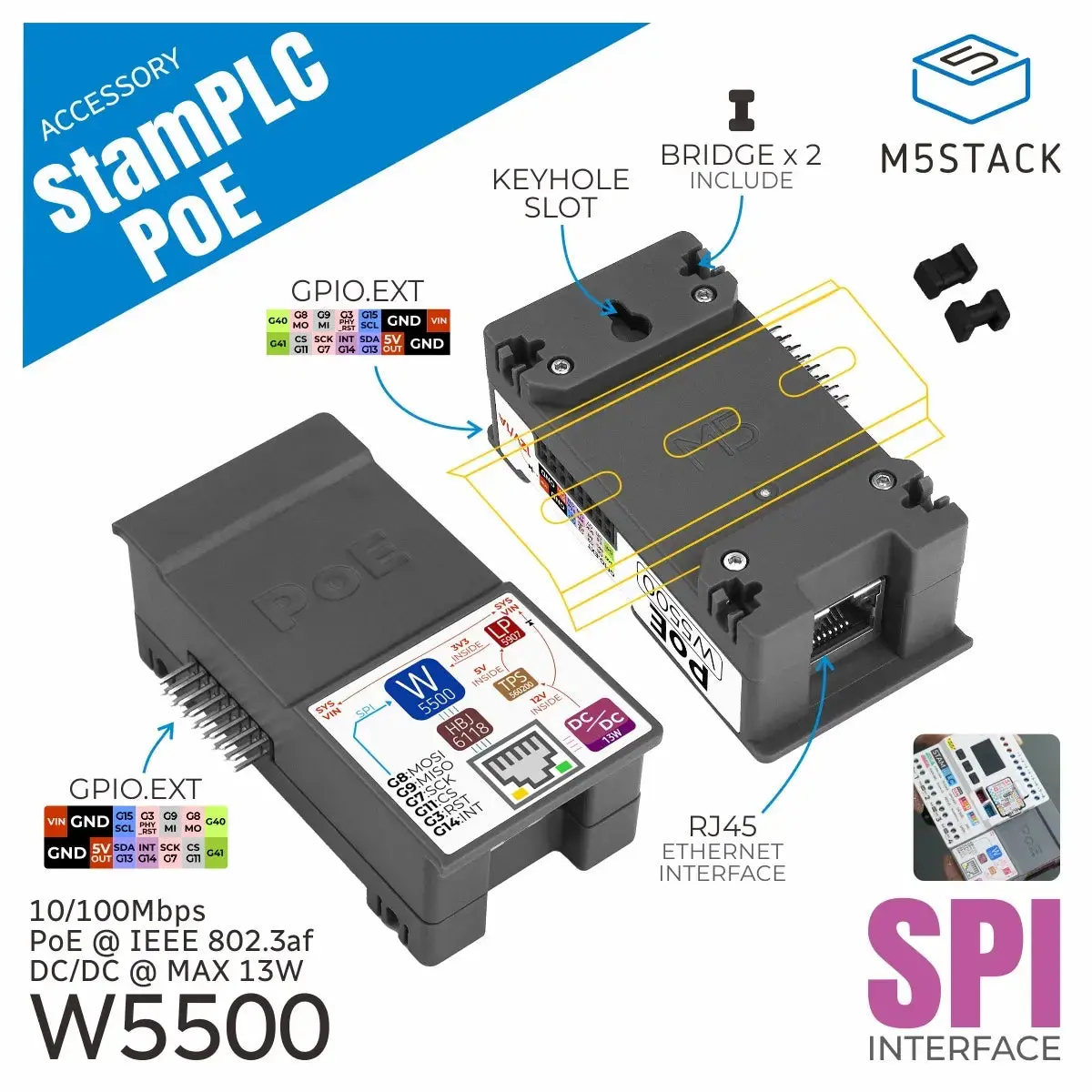

StamPLC PoE is an Ethernet control module designed for the StamPLC host. It supports PoE (Power over Ethernet) technology, enabling both data transmission and power supply through a single Ethernet cable. The module integrates a W5500 embedded Ethernet controller with a built-in TCP/IP protocol stack, providing 8 independent hardware sockets, a 10/100M Ethernet data link layer (MAC), and physical layer (PHY). It supports mainstream network communication methods such as UDP and TCP. The module connects to the network via an RJ45 Ethernet interface and communicates with the StamPLC host through an SPI interface. It is suitable for scenarios with high requirements for network stability and real-time performance, such as industrial automation production lines, centralized building control systems, energy and power distribution monitoring, and data center and communication equipment management in wired network access applications.

Features

• W5500 embedded Ethernet controller
• SPI protocol control
• Supports PoE (active Ethernet) power supply, enabling data and power over a single Ethernet cable
• Supports Ethernet Wake-on-LAN functionality via UDP
• Integrated TCP/IP protocol stack, supporting TCP / UDP / ICMP / IPv4 / ARP / IGMP / PPPoE protocols
• Supports up to 8 independent hardware sockets for concurrent communication
• Integrated 10/100M Ethernet MAC and PHY, supporting full-duplex / half-duplex operation modes
• Supports automatic network speed negotiation
• Onboard RJ45 Ethernet interface
• DIN rail mounting / mounting holes
• Development Platform
  • Arduino
  • UiFlow2

Includes

• 1 x StamPLC PoE
• 2 x Mounting connectors

Applications

• Automated production lines
• Centralized building control systems
• Energy and power distribution monitoring
• Data center and communication equipment management

Specifications

Specification	Parameter
Communication Method	SPI communication
Ethernet Controller	W5500
Ethernet Speed	10/100M adaptive
Power Supply	PoE / DC 12V / DC 5V
Hardware Sockets	8 independent hardware sockets
Supported Protocols	TCP / UDP / ICMP / IPv4 / ARP / IGMP / PPPoE
PoE Features	Complies with IEEE802.3af, supports DC 37 ~ 57V input
PoE Power	Maximum 13W
Interface Type	2 × 8P 2.54mm male / female headers, RJ45 Ethernet interface
MAC/PHY	Integrated 10/100M MAC & PHY
Installation Method	DIN rail mounting / mounting holes
Product Weight	70.8g
Package Size	80.0 x 47.0 x 30.0mm
Gross Weight	79.9g
