Atomic DTU NB-IoT2 Global Edition v1.1 with SIM7028 Module

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

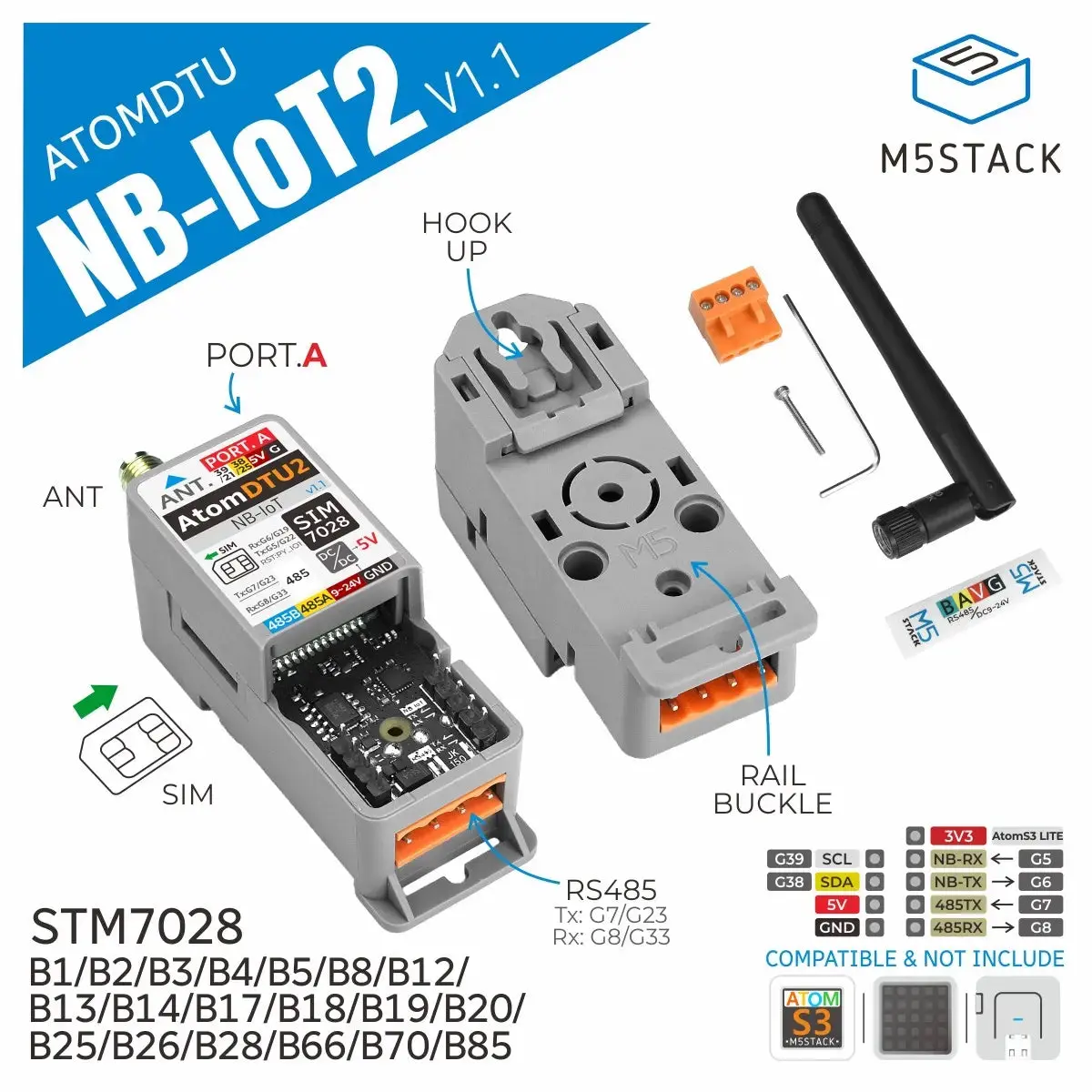

Atom DTU NBIoT2 v1.1 is a programmable NB-IoT wireless Data Transmission Unit (DTU) designed for global Cat-NB frequency bands. Upgraded from the previous generation, it mainly adds an IO expansion chip to enable control of the communication module power enable and software reset, which helps reduce power consumption and ensures that the SIM module can be reset without power cycling when abnormal conditions occur. At the same time, an ADC monitoring circuit has been added, supporting real-time acquisition of the input power voltage from the HT3.96-4P interface to enable power status monitoring. This unit integrates the SIM7028 communication module and uses UART communication (controlled via AT command set). It features an SMA external antenna interface, providing good communication quality and signal stability. The SIM7028 module supports multiple Cat-NB frequency bands and can be used worldwide. Compared with conventional DTUs that only support data transparent transmission, the Atom DTU series adopts a more open architecture design. Multiple interfaces (RS485, I2C / custom Grove interface) are reserved for user expansion, facilitating rapid connection of sensors and actuators. The built-in DIN rail mounting structure allows installation in various industrial control environments, making it suitable for low-latency, low-throughput scenarios such as remote control, asset tracking, remote monitoring, telemedicine, and shared bicycles.

Features

• Global version / multi-band support, suitable for worldwide use
• SIM7028 module, AT command control
• Micro-SIM IoT card
• IO expansion chip for communication module power enable and software reset control
• ADC monitoring circuit supporting power status monitoring
• External SMA antenna interface
• Reserved RS485, I2C / custom Grove interfaces
• Data rate (kbps): 127 (DL) / 159 (UL)
• Supports multiple network protocols such as MQTT and HTTP
• Multiple power supply methods

Includes

• 1 x Atom DTU NBIoT2 v1.1
• 1 x 850 ~ 1900 MHz SMA rubber antenna
• 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
• 1 x M2 * 16mm cap head machine screw
• 1 x HT3.96-4P Terminal
• 1 x I/O Sticker

Applications

• Asset tracking
• Remote monitoring / control
• Shared bicycles

Specifications

Specification	Parameter
Communication Module	SIM7028
Supported Cat-NB Band	B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B66/B70/B85
Network Protocol	TCP/UDP/HTTP/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTS/SSL
Carrier	Deutsche Telekom / Vodafone / Telefonica / China Telecom / China Mobile / China Unicom
Communication Method	UART 115200bps @ 8N
IO Expansion Chip	M5IOE1
Antenna Specification	Size 108 x 10mm, connector type SMA (male thread, female pin), operating band 850 ~ 1900 MHz, gain 2.0 ± 0.5, VSWR ≤ 3.0
Power Supply	RS485 port (HT3.96R-4P interface): 9 ~ 24V USB Type-C: 5V
Power Consumption	SIM module powered off: 24V@9mA (RS485 power); 5V@2.61mA (USB power) Standby: 5V@8.82mA Working (continuous TX/RX): 5V@43.91mA
Grove Load Capacity	DC 5V@1.3A (RS485 power supply)
Operating Temperature	0°C ~ 40°C
Installation Method	DIN rail mounting / mounting holes
Product Size	64.3 x 24.0 x 28.7mm
Product Weight	30.0g
Package Size	170.0 x 120.0 x 27.0mm
Gross Weight	51.2g

Product Comparison

Product Compare	Atom DTU NBIoT2 v1.1	Atom DTU NBIoT2	Atom DTU NBIoT
Communication Module	SIM7028	SIM7028	SIM7020G
Cat-NB Band	B1/B2/B3/B4/B5/B8/B12/ B13/B14/B17/B18/B19/B20/B25/ B26/B28/B66/B70/B85	B1/B2/B3/B4/B5/B8/B12/ B13/B14/B17/B18/B19/B20/B25/ B26/B28/B66/B70/B85	B1/B2/B3/B4/B5/B8/B12/ B13/B17/B18/B19/B20/B25/B26 /B28/B66/B70/B71/B85
Data Rate	127 (DL) / 159 (UL)	127 (DL) / 159 (UL)	126 (DL) / 150 (UL)
Module Power Enable	IO Expansion Chip Control	Direct Power Connection	Direct Power Connection
Module Restart	IO Expansion Chip Control	None	None
Power Status Monitoring	IO Expansion Chip ADC Sampling	None	None
