Description

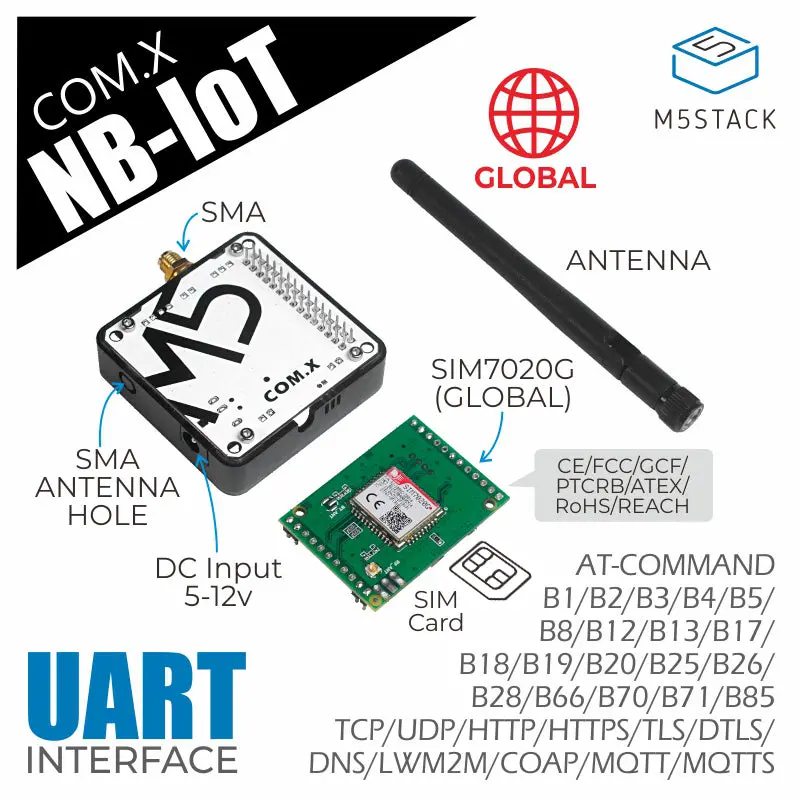

Module COMX NBIoT is a stackable multi-band NB-IoT wireless communication module, equipped with the SIM7020G communication module. The module supports PSM and eDRX low-power modes. It also has wide signal coverage, and compared to GSM, NB-IoT has strong signal gain, which enables the product to have wireless communication capabilities in locations such as basements. The module comes with a DC power input, allowing it to be powered by an external power supply of 5 ~ 12V. For easy pin configuration, a DIP switch is used to set the pins. The SIM7020G module is an optimal solution for low-latency, low-power, and low-throughput applications, making it highly suitable for IoT applications such as smart meters, remote control, asset tracking, remote monitoring, telemedicine, and shared bikes.

Compatibility When used with the Fire controller, due to PSRAM pin conflicts (G16/G17), please switch the module base DIP switch pins to TX(G0/G13) and RX(G5/G15).

Features

• Stackable design
• Supports low-power modes
• Strong signal access capability
• External independent power supply
• AT command control
• SIM card type: MicroSIM
• Status signals: Two LED indicators
• External antenna: SMA antenna
• Serial communication: UART 115200bps
• Frequency bands:
  • B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71/B85
• Data transmission: Uplink: 150Kbps Downlink: 126Kbps
• Network protocols: TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTS

Includes

• 1 x Module COMX NBIoT
• 1 x SMA antenna

Applications

• Smart meters
• Remote monitoring
• Shared bikes

Specifications

Specification	Parameters
Supported bands	B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71/B85
Network protocols	TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTS
Communication method	UART 115200bps
DC interface specification	5.5mm
Net weight	40g
Gross weight	75g
Product Size	54 x 54 x 13.2mm
Package Size	165 x 60 x 36mm
