A7600C1 LTE Data Module – End-of-Life (EOL) Cellular Communication Board

Description

Product Status Notice This product is EOL (End of Life). /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

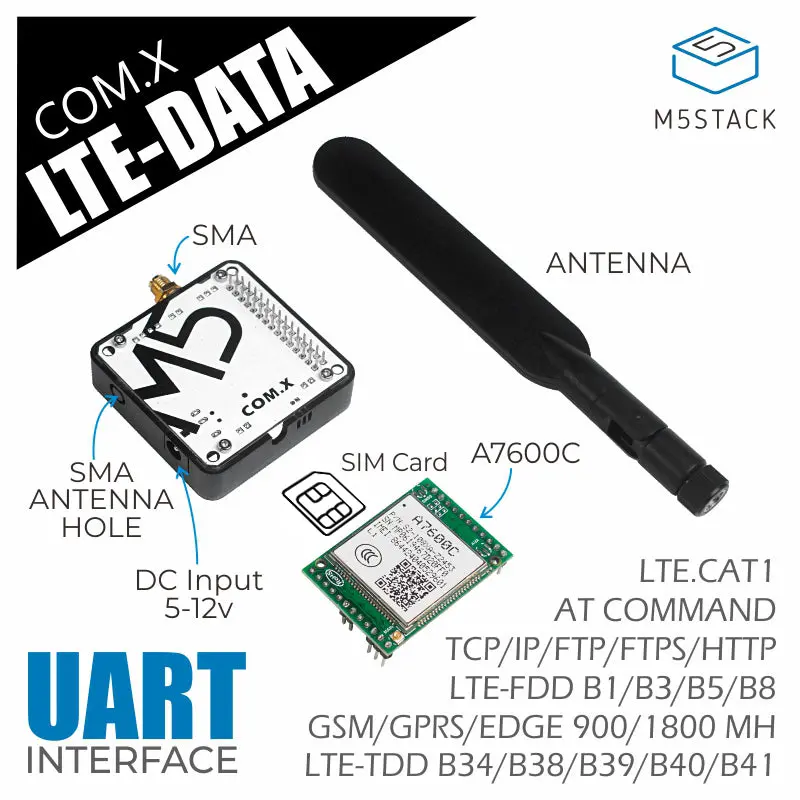

Module COMX LTE-Data is a stackable multifunctional LTE communication module with a built-in LTE module A7600C1, supporting LTE-TDD/LTE-FDD/EDGE/GPRS and GSM frequency bands, with a transmission rate of LTE.CAT4 standard. It features stable performance, compact size, and high cost-effectiveness, enabling low-power data transmission. The module comes with a DC power input, allowing external power supply of 5 ~ 12V. For user convenience in pin configuration, a DIP switch is used to set the pins. This module is particularly suitable for IoT industries such as remote meter reading, smart parking, and municipal management, where low power consumption and ultra-small size are core requirements.

Compatibility When used with the Fire controller, due to PSRAM pin (G16/G17) conflicts, please switch the module base DIP switch pins to TX(G0/G13), RX(G5/G15).

Features

• Stackable design
• External independent power supply
• AT command control
• SIM card type: MicroSIM
• Status signal: Two LED indicators
• External antenna: SMA antenna
• Serial communication: UART 115200bps
• Frequency bands:
  • LTE-TDD B34/B38/B39/B40/B41
  • LTE-FDD B1/B3/B5/B8
  • GSM/GPRS/EDGE 900/1800 MHz
• Data transmission:
• LTE Cat 1
  • Uplink max 5Mbps
  • Downlink max 10Mbps
• EDGE
  • Uplink/Downlink max 236.8Kbps
• GPRS
  • Uplink/Downlink max 85.6Kbps
• Supported protocols
  • TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS/DNS
  • RNDIS/PPP/ECM
  • SSL

Includes

• 1 x Module COMX LTE-Data
• 1 x SMA antenna

Applications

• Smart metering
• Smart parking
• Municipal management

Specifications

Specification	Parameters
Supported bands	LTE-TD/LTE-FDD/GPRS/EDGE/GSM
Network protocols	TCP/IP/UDP/HTTP/MQTT/FTP/DNS etc.
Communication method	UART 115200bps
DC interface specification	5.5mm
Net weight	54g
Gross weight	89g
Product Size	54 x 54 x 13.2mm
Package Size	165 x 60 x 36mm
