Description

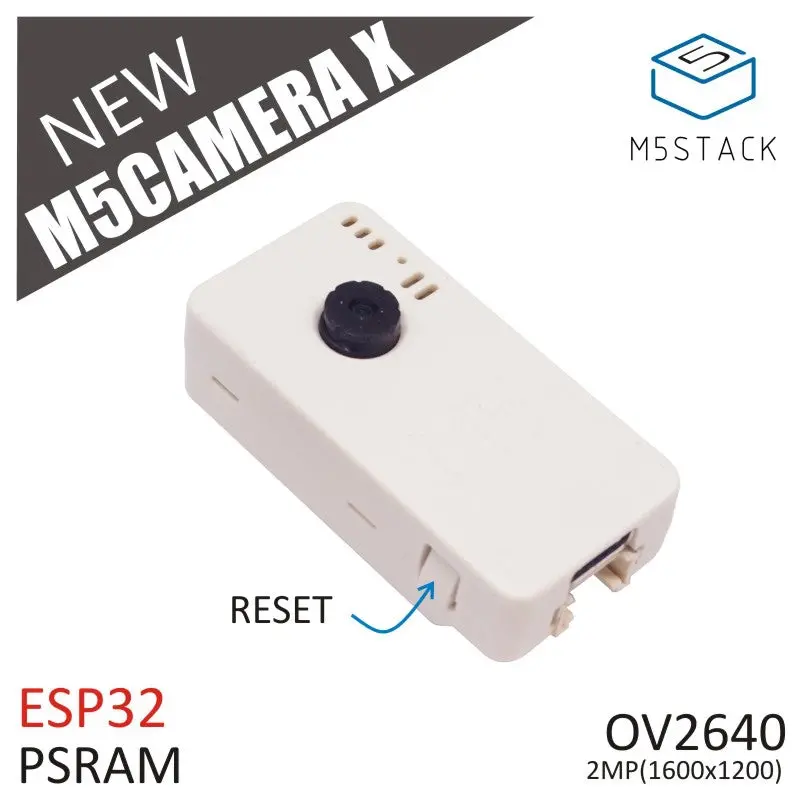

M5Camera-X is an image recognition development board that integrates the ESP32 (4M Flash + 520K RAM + 4M PSRAM) chip and a 2MP camera (OV2640). It supports Wi-Fi image transmission and USB port debugging.

The hardware comes preloaded with firmware, developed using ESP-IDF programming, running a Wi-Fi camera application. The default program outputs an image size of 600 x 800, but you can optimize the program to output larger sizes.

How to use this program?

• Turn on the phone’s Wi-Fi and scan to connect to an AP hotspot with a name starting with “m5stack-“.
• Open the phone browser and visit 192.168.4.1 to enter the monitoring page and retrieve the live video.
• The video frame rate is about 5-6 frames per second.

Since the module can generate a Wi-Fi hotspot (AP), you can use a phone, PC, or other devices to wirelessly obtain camera images via Wi-Fi, or use the HY2.0-4P interface of the module to get camera images via a wired connection. It currently supports functions such as network camera, color recognition, and face recognition.

Features

• Designed based on ESP32
• Wi-Fi image transmission
• CP2104 USB TTL

Includes

• 1 x M5Camera-X
• 1 x LEGO-compatible back clip
• 1 x Wall-1515
• 1 x USB Type-C Cable (20cm)

Specifications

Specification	Parameter
RAM	4MB
Flash	4M
Image Sensor	OV2640
Max Resolution	2MP
Output Format	YUV (422/420) / YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data
Field of View	65°
Product Weight	14g
Gross Weight	38g
Product Size	24 x 48 x 13mm
Package Size	75 x 45 x 30mm
