N9301 Audio Playback Unit

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

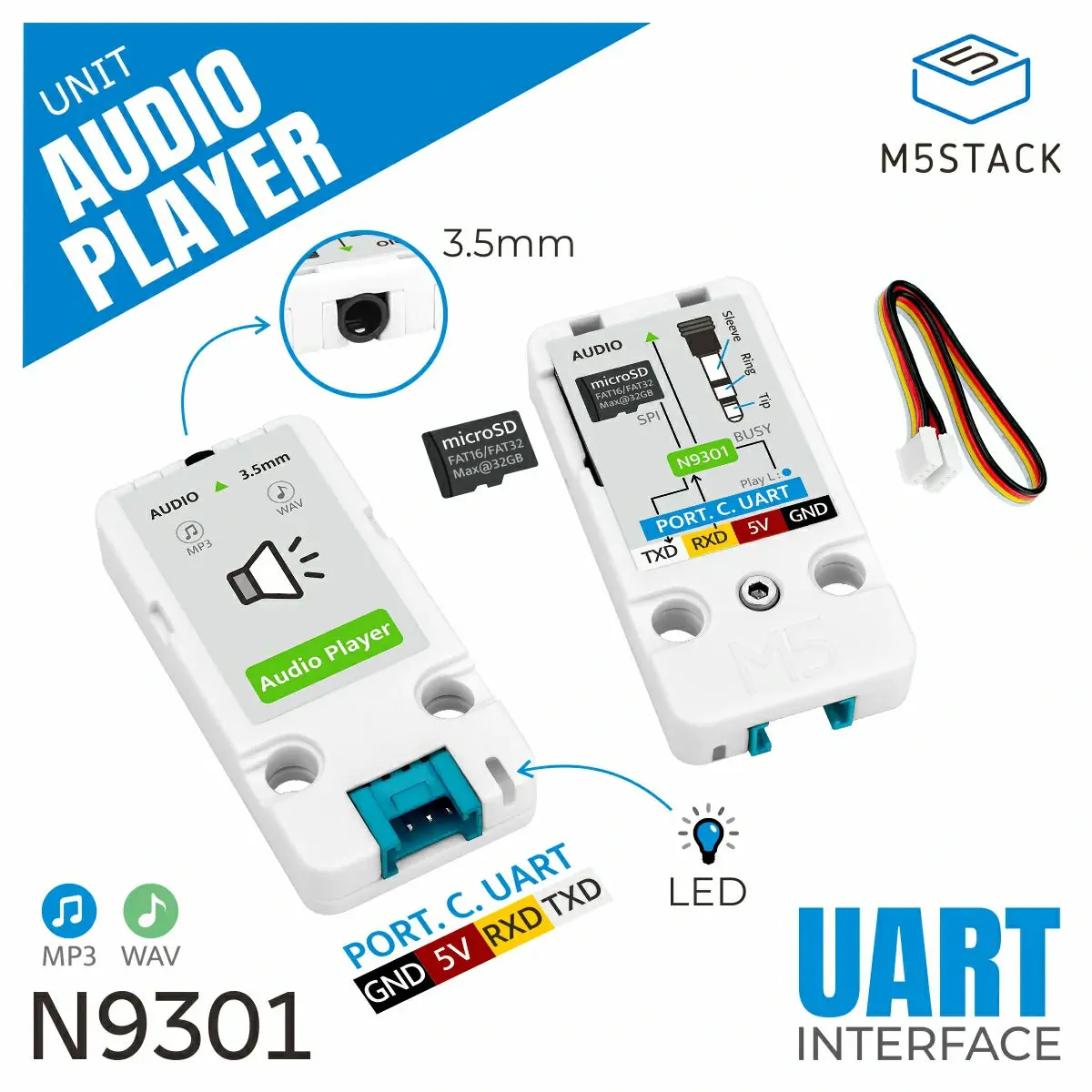

Unit AudioPlayer is an MP3 player unit with built-in decoding, equipped with the audio decoding chip N9301 and a microSD card slot. Users can control the playback of MP3 files on the microSD card through Grove’s UART interface. The audio signal is output through a 3.5mm jack, providing clear audio output. This product is suitable for smart voice interaction devices (such as smart home controllers, voice tour guides), industrial automation alarm systems, medical equipment voice prompt terminals, STEAM education, and other scenarios. It can meet the demands of multiple industries for high-quality audio playback and flexible control, especially for embedded projects that require audio triggering through serial port instructions and integrated miniaturized audio solutions.

Features

• N9301 audio decoding chip
• UART communication interface
• 3.5mm stereo jack
• Supports MP3 and WAV audio formats
• Supports FAT16/FAT32 file systems
• Maximum support for 32GB microSD card
• Development platforms
  • UiFlow1
  • UiFlow2
  • Arduino IDE

Includes

• 1 x Unit AudioPlayer
• 1 x HY2.0-4P Grove connection cable (20cm)

Application

• Intelligent voice interaction devices (such as smart home control centers, voice guides)
• Industrial automation alarm systems
• Medical device voice prompt terminals
• STEAM education

Specifications

Specification	Parameter
Audio decoding chip	N9301
Storage interface	microSD card slot
Communication method	UART serial communication. Default baud rate: 9600bps@8N1
Audio output interface	3.5mm stereo jack
Power consumption	Operating: DC 5.01V@25.17mA; Standby: DC5.01V@7.33mA; Sleep: DC 5.02V@871.24uA
Product Size	48.0 x 24.0 x 8.0mm
Product weight	6.9g
Package Size	138.0 x 93.0 x 9.0mm
Gross weight	12.8g
