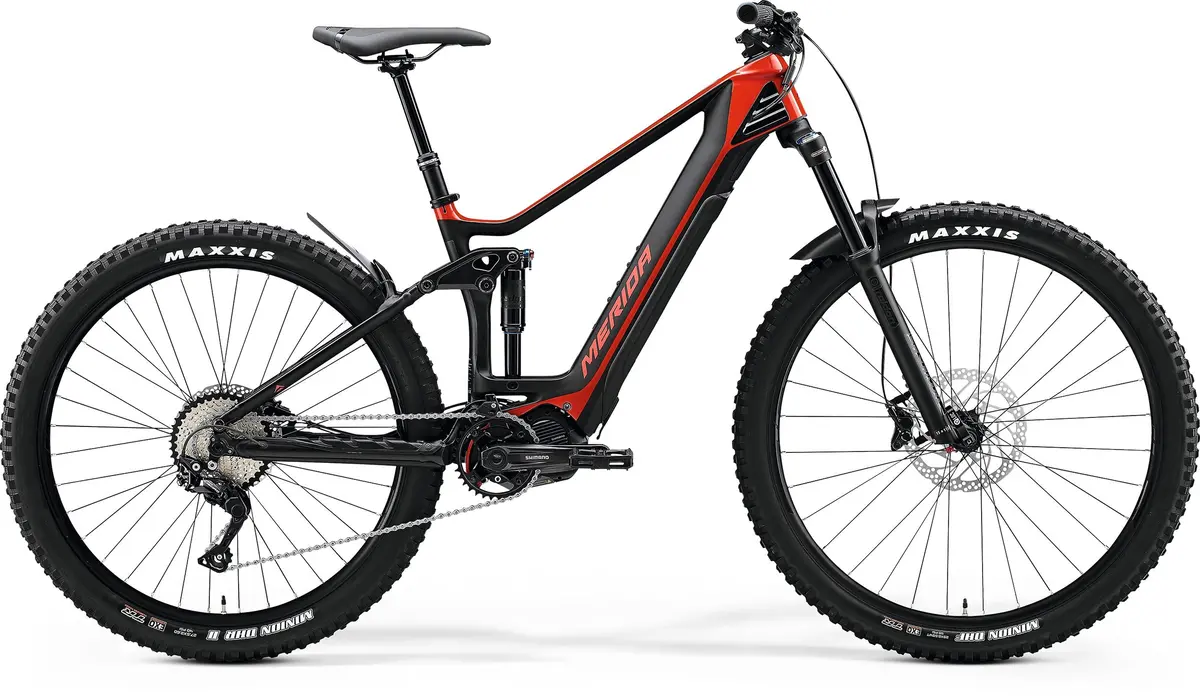

Merida Eone-Forty 500 Electric Mountain Bike

Description

FRAME eONE-FORTY LITE III

• material: aluminium
• 133mm suspension travel
• 27.5×2.8″ max. wheelsize
• 148x12mm axle standard
• intube

FRAME SIZE S, M, L, XL, XXLCOLOR METALLIC TEAL (BLACK)FORK Marzocchi Z2 eMTB+

• Air
• 140mm suspension travel
• Tapered
• 51mm fork offset
• 29×2.6″ max wheelsize

SHOCK SR Suntour EDGE

• lockout

BRAKES Shimano M4100

• 4 piston

ROTORS Shimano RT30 / Shimano RTEM300

• 203 mm

HEADSET MERIDA 8152HANDLEBAR MERIDA EXPERT eTR

• 780mm width
• 20mm rise

HANDLEBAR STEM MERIDA EXPERT eTRII

• material: aluminium
• 35mm diameter
• 0° stem angle
• GoPro & Supernova mount
• 50 mm

GRIP MERIDA EXPERT ECDERAILLEUR (R) Shimano Deore RDM5100 11SHIFTERS Shimano SL -MT500-IL / Shimano Deore M5100SEAT POST MERIDA COMP TR

• 30.9mm diameter
• 0mm setback
• S/M 100mm travel seatpost – L/XL 125mm travel seatpost – XXL 150mm travel seatpost

SEAT CLAMP MERIDA EXPERTSADDLE MERIDA COMP SL

• V-mount

PEDAL VP VPE-537CHAIN KMC e11S EPTCHAINWHEEL Shimano CRE70-B

• 34 teeth

CRANK Shimano FCEM600

• 165 mm

FREEWHEEL Shimano M5100

• 11-51 teeth
• 11 speed

HUBS Shimano MT400-B

FRAME SIZE	S	M	L	XL	XXL
TYRE SIZES	29/27.5″	29/27.5″	29/27.5″	29/27.5″	29/27.5″
ST SEAT TUBE [MM]	405	415	430	450	470
TT TOP TUBE [MM]	561	581	603	624	645
CS CHAIN STAY LENGTH [MM]	439.5	439.5	439.5	439.5	439.5
HTA HEAD TUBE ANGLE [°]	66.5	66.5	66.5	66.5	66.5
STA SEAT TUBE ANGLE [°]	76.5	76.5	76.5	76.5	76.5
BD BOTTOM BRACKED DROP [MM]	25	25	25	25	25
HT HEAD TUBE [MM]	110	115	120	125	130
FL FORK LENGTH [MM]	551	551	551	551	551
R REACH [MM]	410	430	450	469	489
S STACK [MM]	622	627	631	635	640
WB WHEEL BASE [MM]	1160	1182	1204	1226	1248
SH STAND OVER HEIGHT [MM]	729	730	727	733	747
